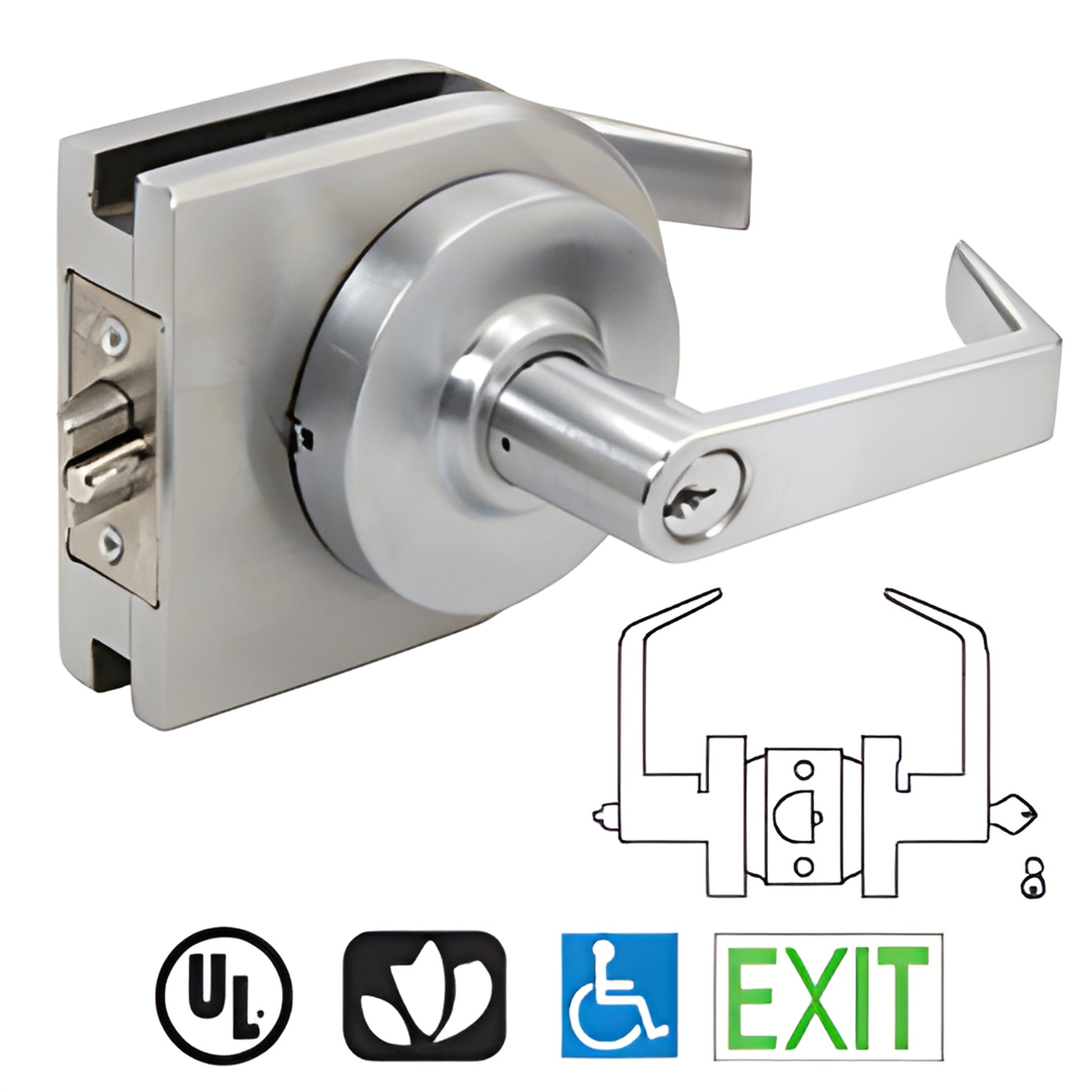

CRL Brushed Stainless Grade 1 Commercial Door Lever Lock Housing
CRL Brushed Stainless Grade 1 Commercial Door Lever Lock Housing
Regular price
$313.69 CAD
Regular price
Sale price
$313.69 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LH50BS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cover Style
Round
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Height
4-1/2 in. (114 mm)
Width
5 in. (127 mm)
Overview
- Schlage® 6-Pin keyway option
- Low profile body design for use with 3/8" or 1/2" (10 or 12 mm) tempered glass
- Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lock
- Non-handed and reversible for left- or right-handed glass doors
- Five architectural finishes available
- Four function options: Entrance, Storeroom, etc.
- Designed for monolithic tempered glass applications
CRL's Lever Lock Housings (SKU: LH50BS) are easy-to-install and ship complete with housing and lever lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. Entrance and Storeroom models are available with either a Schlage® 'C' 6-Pin keyway or a 7-Pin Small Format Interchangeable Core (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included.
• ANSI A156.2 Grade 1. UL10C and UBC 7.2 for Positive Pressure
• ANSI A117.1 and A.D.A. for Barrier-Free Accessibility
• C-UBC California Amended Uniform Building Code – 2001
• NFPA-80 National Fire Protection - 1999
• NFPA 101 National Fire Protection - Life Safety – 2000
Product Warning:
Glass fabrication is required. Installation instructions and fabrication template included.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
For specification sheets, finish options, or to order the LH50BS lever lock housing for glass doors, contact CRL or add to cart now.
