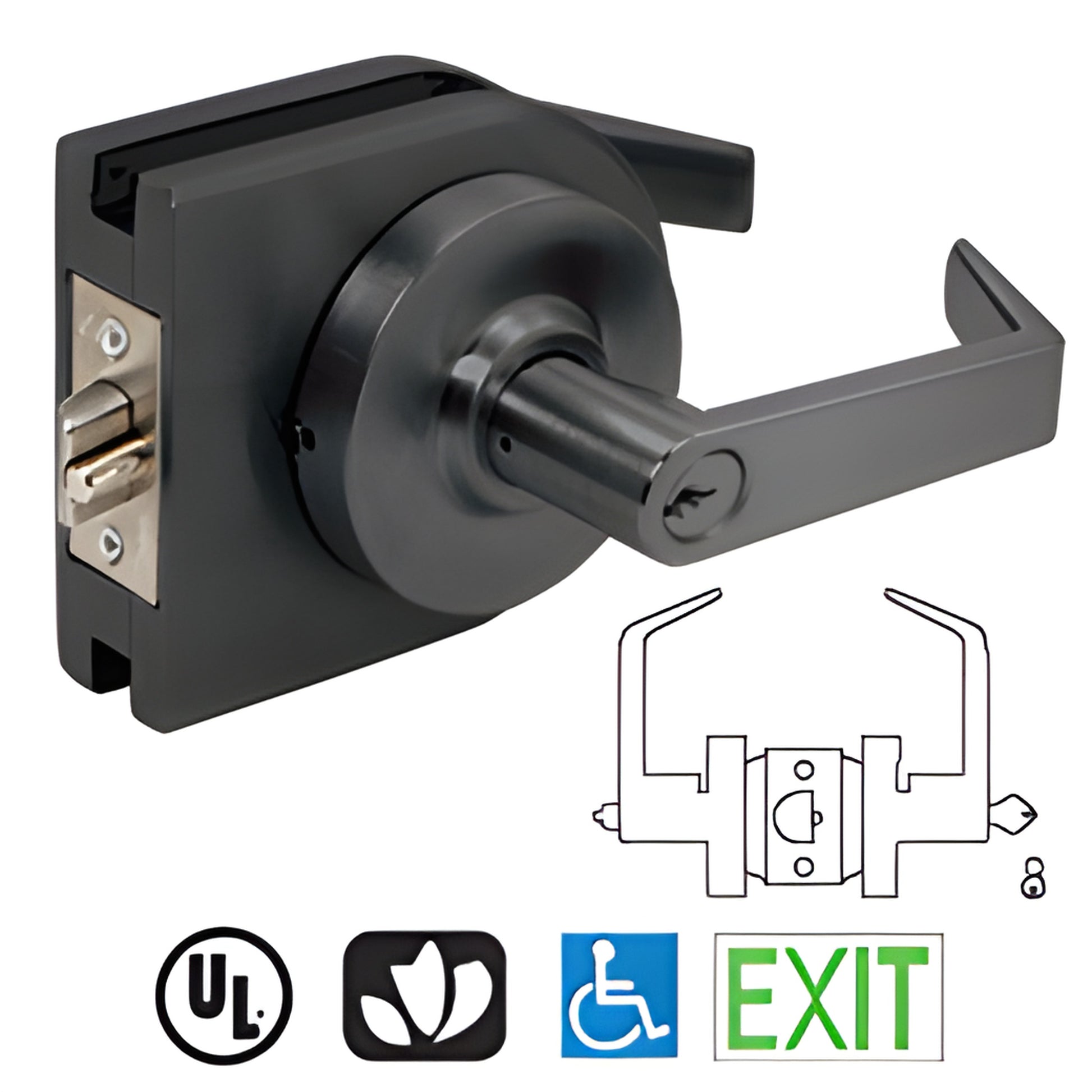

CRL Matte Black Grade 1 Commercial Door Lever Lock Housing

• Schlage® 6-Pin keyway option (C keyway)
• Low-profile body design for use with 3/8" or 1/2" (10 or 12 mm) tempered glass
• Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lock
• Non-handed and reversible for left or right doors
• Five architectural finishes available
• Four function options (Entrance, Storeroom, etc.)
• Compatible with monolithic tempered glass doors

CRL's Lever Lock Housings are easy-to-install and include the housing and lever lockset sized for 3/8" or 1/2" (10 or 12 mm) thick glass. Entrance and Storeroom models are offered with either a Schlage® 'C' 6-Pin keyway or a 7-Pin Small Format Interchangeable Core (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included. Ideal for frameless glass doors and commercial storefronts requiring a low-profile lever lock for tempered glass.

• Certifications: ANSI A156.2 Grade 1; UL10C and UBC 7.2 for Positive Pressure
• Accessibility: ANSI A117.1 and A.D.A. compliant for barrier-free accessibility
• Code: C-UBC California Amended Uniform Builders Code – 2001
• Fire & Life Safety: NFPA-80 (1999) and NFPA101 Life Safety (2000)

Glass fabrication is required. Installation instructions and fabrication template are included.

SKU: LH50MBL. Order now to get the low-profile lever lock housing for 3/8" or 1/2" tempered glass doors.
