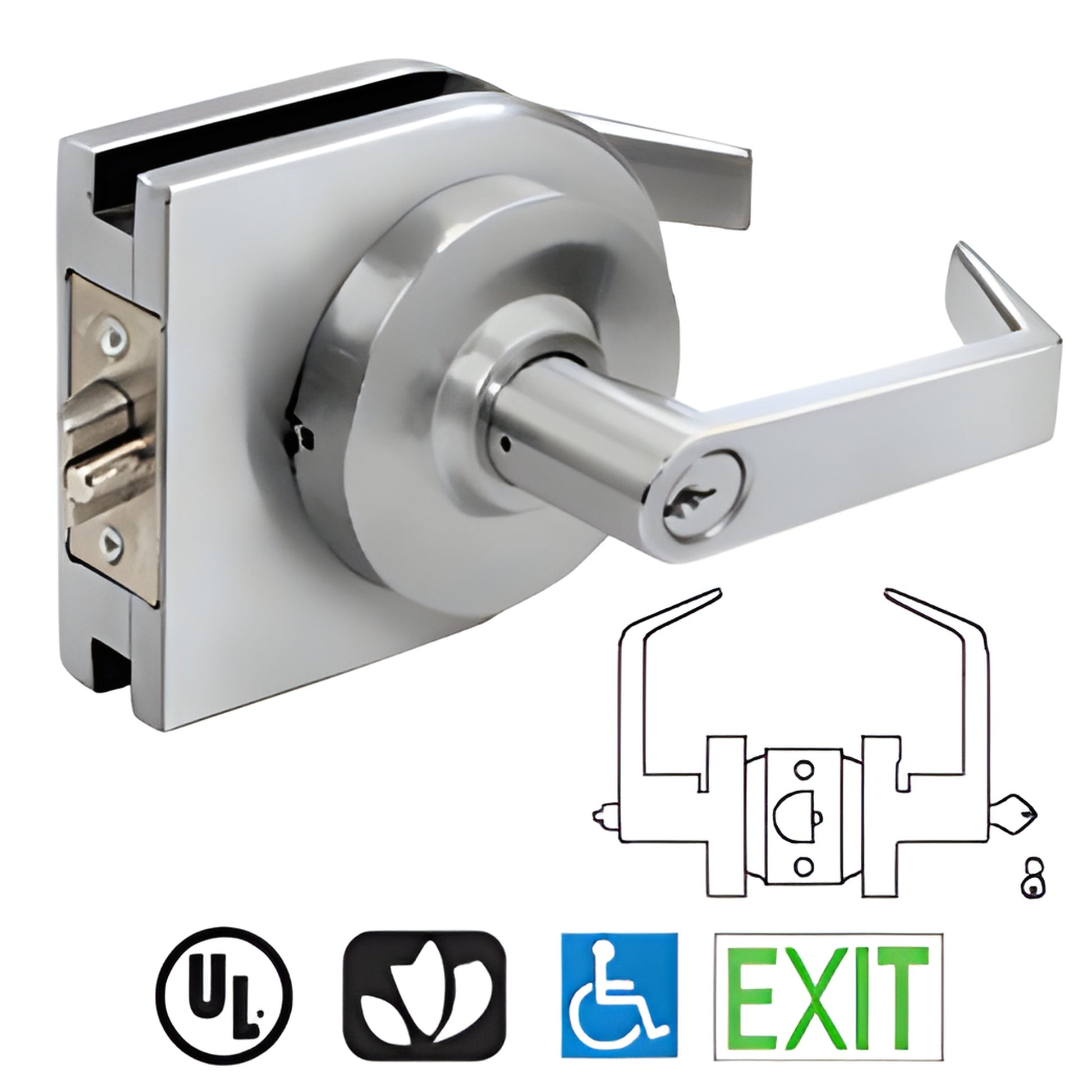

CRL Grade 1 Satin Anodized Entrance Lever Lock Housing - Commercial

• Schlage® 6-Pin keyway (Entrance/Storeroom models) or optional 7-Pin SFIC
• Low-profile body design for 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
• Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lockset
• Non-handed and reversible for left or right door swing
• Five architectural finishes; four function options
• Includes ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike

CRL's Lever Lock Housings (SKU: LH50SA) are easy-to-install complete housings with lever lockset for 3/8" or 1/2" (10 or 12 mm) tempered glass doors. Entrance and storeroom models come with a Schlage® 'C' 6-Pin keyway or optional 7-Pin Small Format Interchangeable Core (SFIC). Designed for commercial glass door applications, these housings deliver durable security and a low-profile aesthetic.

Certifications and compliance:

• ANSI A156.2 Grade 1; UL10C and UBC 7.2 for positive pressure
• ANSI A117.1 and ADA for barrier-free accessibility
• C-UBC California Amended Uniform Building Code – 2001
• NFPA-80 (1999) and NFPA 101 Life Safety (2000)

Product Warning:

Glass fabrication is required. Installation instructions and fabrication template included.

Order LH50SA now for a high-security, low-profile lever lock housing for tempered glass doors.
