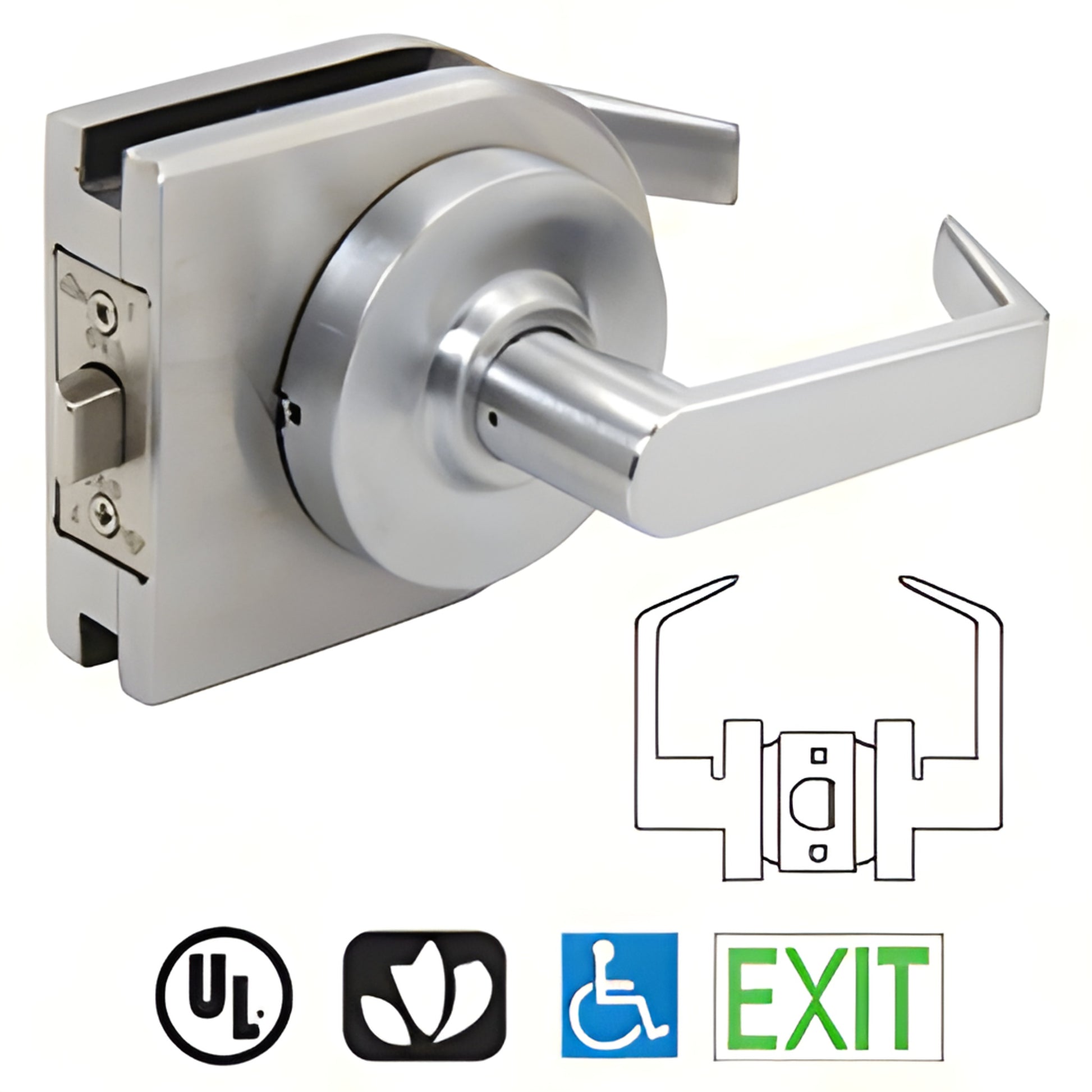

CRL Brushed Stainless Grade 1 Door Lever Lock Housing - Passage
CRL Brushed Stainless Grade 1 Door Lever Lock Housing - Passage
Regular price
$391.39 CAD
Regular price
Sale price
$391.39 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LH10BS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Cover Style
Round
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. (10 mm)
Height
4-1/2 in. (114 mm)
Width
2 in. (51 mm)
Overview
- Low profile body design for use with 3/8" or 1/2" (10 or 12 mm) glass
- Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lock
- Non-handed and reversible for left or right swing glass doors
- Five architectural finishes available
- Four function options for entrance, storeroom, passage, or office use
CRL's Lever Lock Housings (SKU: LH10BS) are easy-to-install and ship complete with housing and lever lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. Entrance and storeroom models are offered with either a Schlage® 'C' 6-pin keyway or a 7-pin Small Format Interchangeable Core (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included. These lever lock housings are ideal long-tail solutions for "lever lock housing for glass doors" and "reversible lever lock for 3/8 or 1/2 inch glass."
• ANSI A156.2 Grade 1. UL10C and UBC 7.2 for Positive Pressure
• ANSI A117.1 and A.D.A. for Barrier-Free Accessibility
• C-UBC California Amended Uniform Builders Code – 2001
• NFPA-80 National Fire Protection - 1999
• NFPA101 National Fire Protection - Life Safety – 2000
Product Warning:
Glass fabrication is required. Installation instructions and fabrication template included.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, view the Stainless Steel Disclaimer in the Technical References section below.
Need a durable, reversible lever lock housing for glass doors? Order SKU: LH10BS or contact CRL for pricing and lead times.
Specifications
Cleaning & Maintenance
