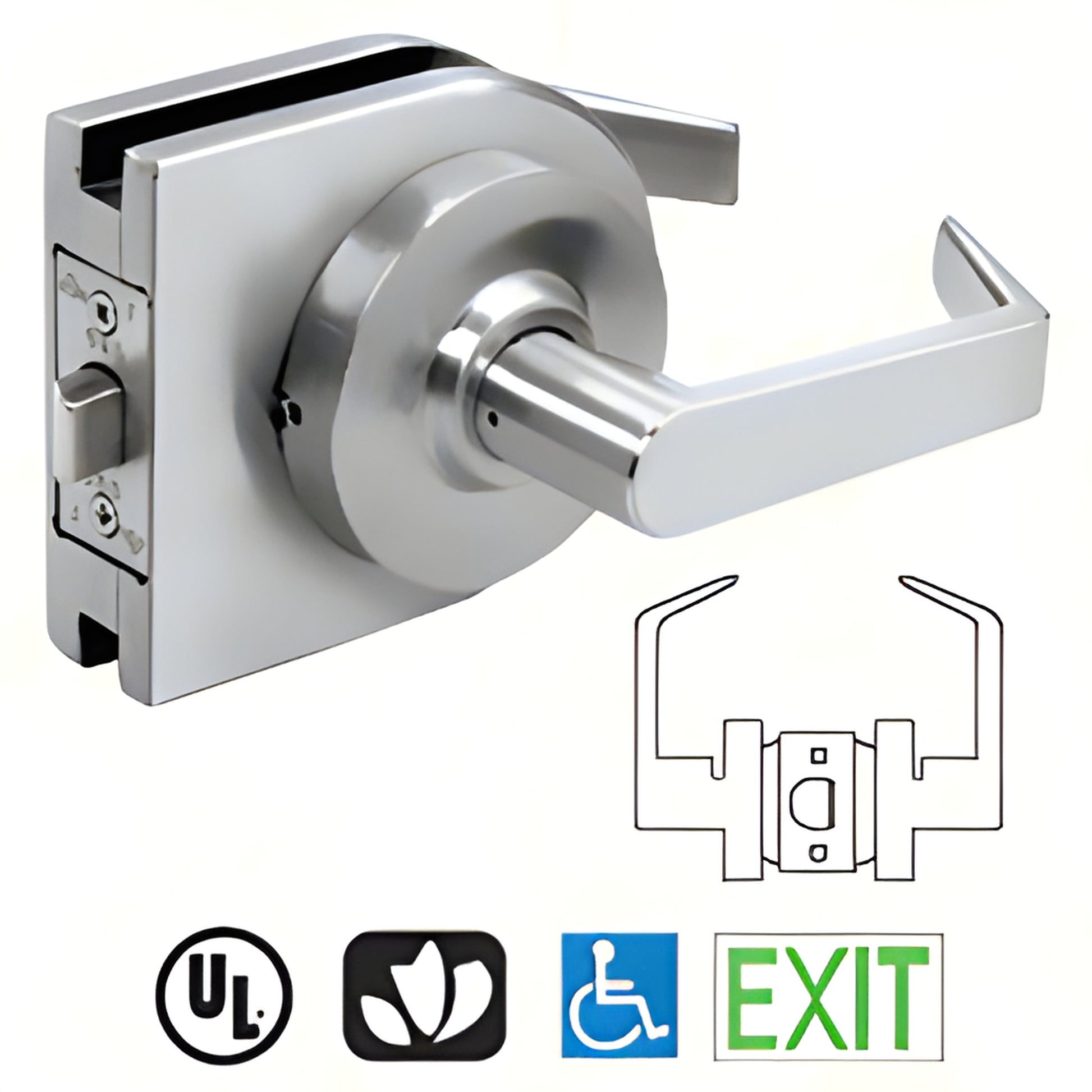

CRL Satin Anodized Grade 1 Heavy-Duty Passage Door Lever Housing

• Low-profile body design for 3/8" or 1/2" (10 or 12 mm) glass
• Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lock
• Non-handed and reversible
• Five architectural finishes available
• Four function options
• For use with monolithic tempered glass

CRL's Lever Lock Housings (SKU: LH10SA) are easy to install and ship complete with housing and lever lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. Entrance and storeroom models are available with either a Schlage® 'C' 6-pin keyway or a 7-pin Small Format Interchangeable Core (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included. These lever lock housings are designed for glass door applications requiring durable, ADA-compliant hardware and are ideal for commercial glass doors and storefronts.


Certifications & Compliance:
• ANSI A156.2 Grade 1. UL10C and UBC 7.2 for positive pressure
• ANSI A117.1 and A.D.A. for barrier-free accessibility
• C-UBC California Amended Uniform Builders Code – 2001
• NFPA-80 National Fire Protection - 1999
• NFPA101 National Fire Protection - Life Safety – 2000


Product Warning:

Glass fabrication is required. Installation instructions and a fabrication template are included.
