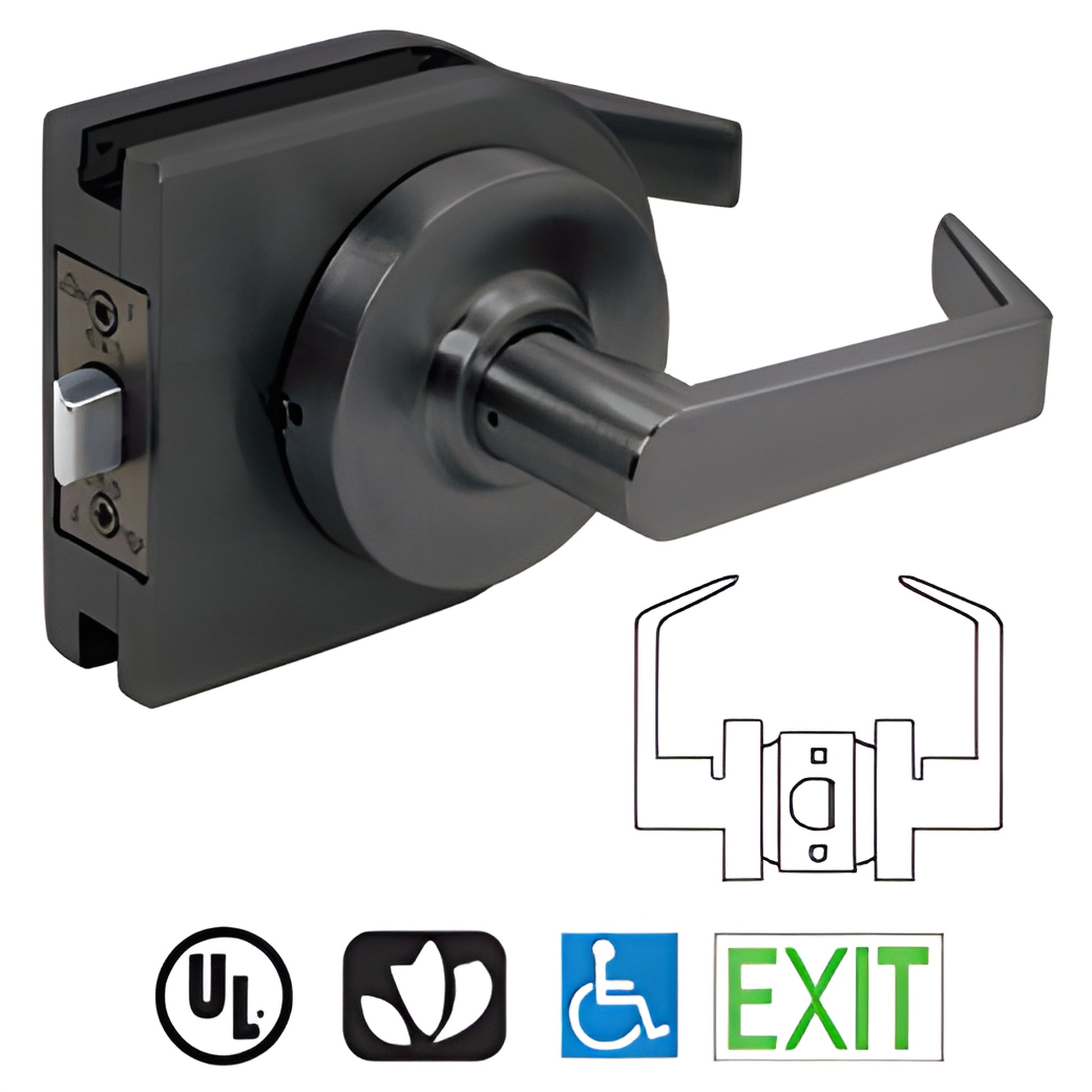

CRL Matte Black Commercial Grade 1 Passage Lever Lock Housing

• Low-profile body design for use with 3/8" or 1/2" (10 or 12 mm) glass
• Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lock
• Non-handed and reversible for left or right glass doors
• Five architectural finishes available
• Four function options (Entrance, Storeroom, etc.)

CRL's Lever Lock Housings (SKU: LH10MBL) are easy-to-install housings that include the housing and lever lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. Entrance and Storeroom models are available with either a Schlage® 'C' 6-pin keyway or a 7-pin Small Format Interchangeable Core (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included.

• ANSI A156.2 Grade 1; also available in Grade 2
• UL10C and UBC 7.2 rated for positive pressure (fire-rated lever lock housing)
• Meets ANSI A117.1 and ADA for barrier-free accessibility
• C-UBC California Amended Uniform Building Code – 2001
• NFPA-80 (1999) and NFPA 101 Life Safety (2000) compliant

Product warning: Glass fabrication is required. Installation instructions and a fabrication template are included. Follow all local codes and glazing practices when installing lever lock housings on glass doors.

For secure, low-profile lever lock housings for glass doors (3/8" or 1/2"), choose CRL LH10MBL. Contact CRL or your local distributor to order today.
