- 118" (3 m) top and bottom tracks
- Kits contain all necessary hardware to complete the installation
- For use with 5/16" to 1/2" (8 to 12 mm) tempered glass
- One pair of rollers accommodates doors up to 286 lbs. (130 kg)
- Use monolithic tempered glass (laminated glass should not be used)
- Available for a single rolling door or bi-parting rolling doors

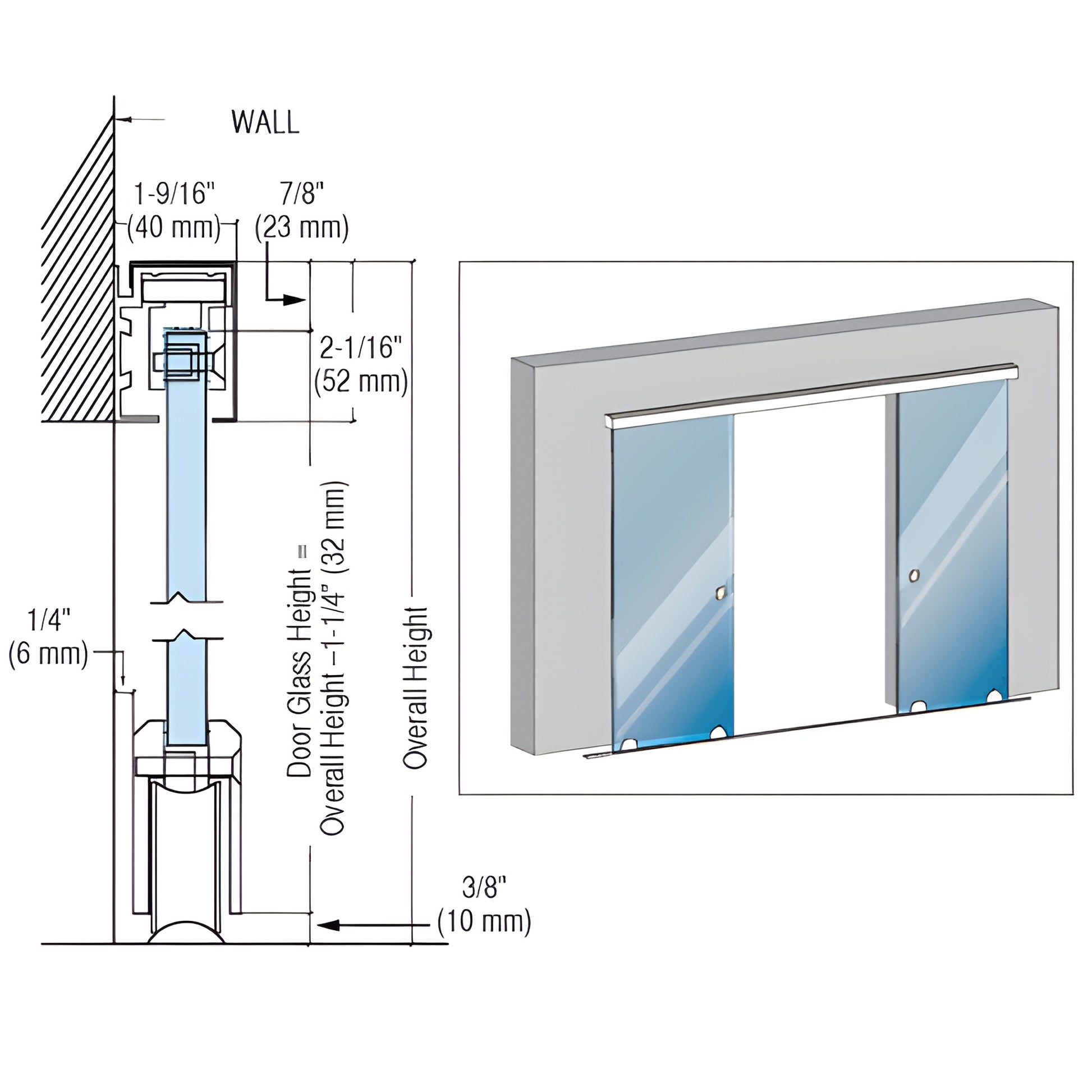

There are two configurations of the
GSDH Series Kits for glass doors. Both kits (SKU:
GSDH2BS) include top and bottom track, top guides, top guide roller stops, end covers, and bottom rollers—everything required for installation except the tempered glass. Kits are offered in brushed or polished stainless steel finishes for single and bi-parting sliding glass door applications. These glass sliding door hardware kits are ideal when you need a heavy-duty tempered glass rolling door solution.
For technical details or assistance with selecting the correct configuration for your project, contact CRL Technical Sales Department.
NOTE: Laminated glass should not be used with the GSDH system.
GLASS FABRICATION REQUIRED: Four holes and two notches per panel. Glass templates are included in kits.
Product Warning:STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to determine product suitability for the intended use and site conditions. Installers must be qualified and familiar with local, state, and federal regulations, safety factors, and appropriate fixing materials and procedures.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are of the actual product or a close representation; colors may vary by monitor and video card settings.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more information.
Call-to-action: Contact CRL Technical Sales or Customer Service to confirm fit, request exact shipping weights, or order your GSDH Series glass sliding door hardware kit (GSDH2BS) today.
