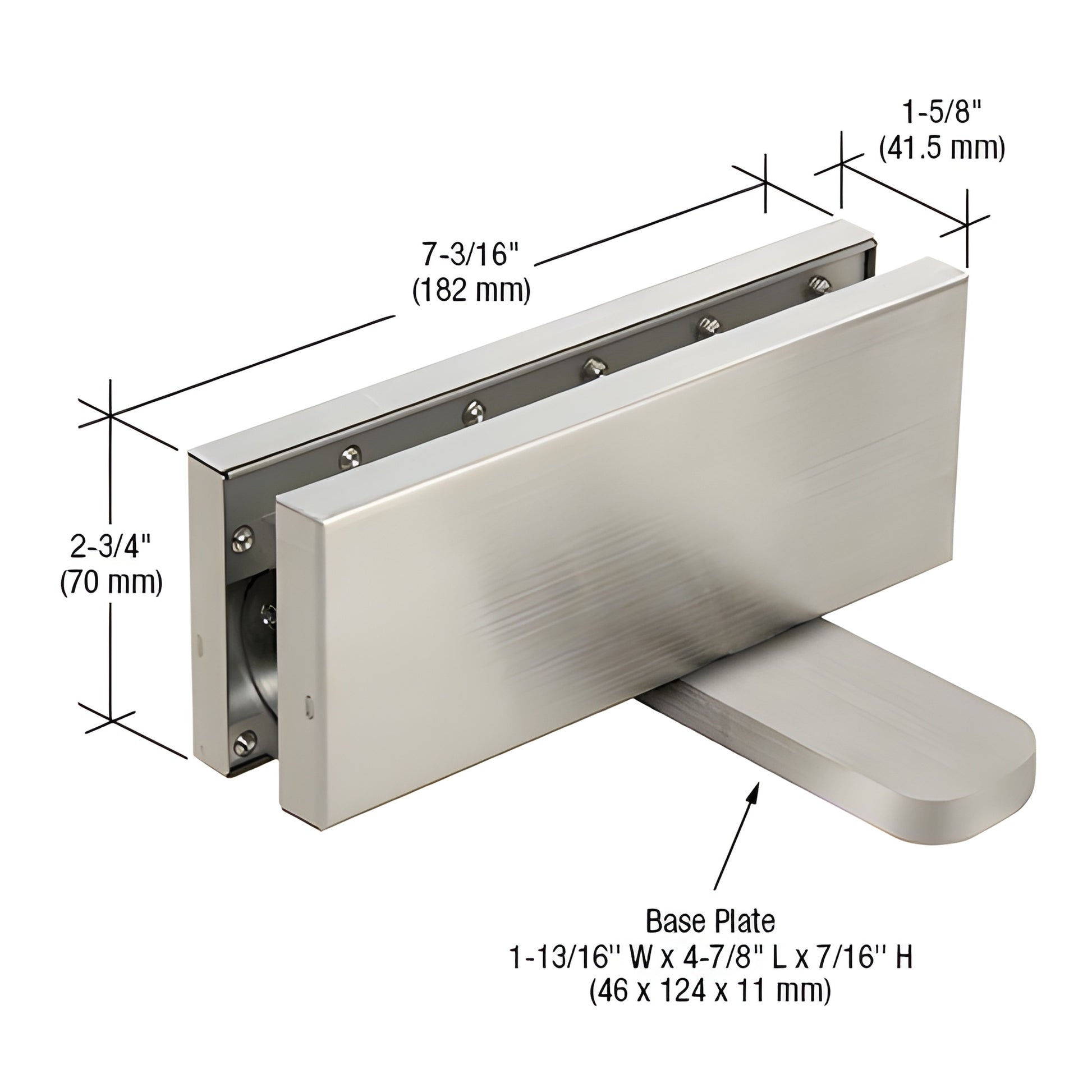

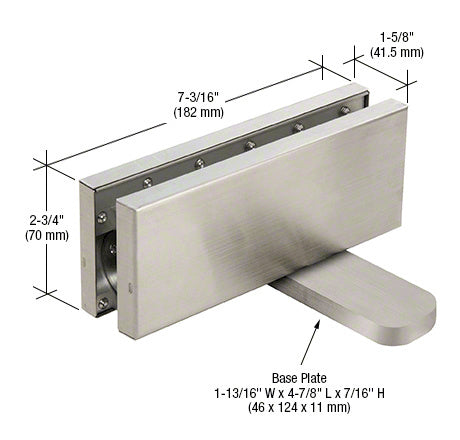

CRL Brushed Stainless Hydraulic Patch Fitting 2-9/16 in Setback NHO
CRL Brushed Stainless Hydraulic Patch Fitting 2-9/16 in Setback NHO
Regular price
$302.68 CAD
Regular price
Sale price
$302.68 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL380BS
Shipping Weight: 3.456 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.456 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
2-3/4 in. (70 mm)
Hold Open
No
Maximum Door Width
39 in. (991 mm)
Maximum Panel Weight
220 lbs. (99.8 kg)
Pivot Setback
2-9/16
Width
1-5/8 in. (41 mm)
Overview
- 2-9/16" (65 mm) pivot point
- Available in Brushed Stainless, Polished Stainless, Satin Anodized, and Matte Black finishes
- Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
- Flush mount — no hole required in the floor
- For interior use only
- Must be used with PH21A top patches
CRL380 Series Hydraulic Patch Fittings (SKU: CRL380BS) are medium-duty hydraulic patch fittings for interior glass doors. Designed as a flush-mount pivot fitting for frameless tempered glass, the CRL380BS requires no floor or overhead closing devices. Two adjustment screws allow precise control of latching speed and swing speed for smooth, reliable door operation. Fits 3/8" (10 mm) and 1/2" (12 mm) tempered glass with required glass fabrication (cut-out). Maximum door width: 39" (1 m). Maximum door weight: 220 lbs (100 kg).
Product Warning:
Custom headers with a 2-9/16" (65 mm) pivot point must be ordered if needed. These fittings are not compatible with stock NH36xx and NH72xx headers.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.
For a dependable interior hydraulic patch fitting for frameless glass doors, choose CRL380BS — contact CRL or your distributor to order or request installation guidance.
