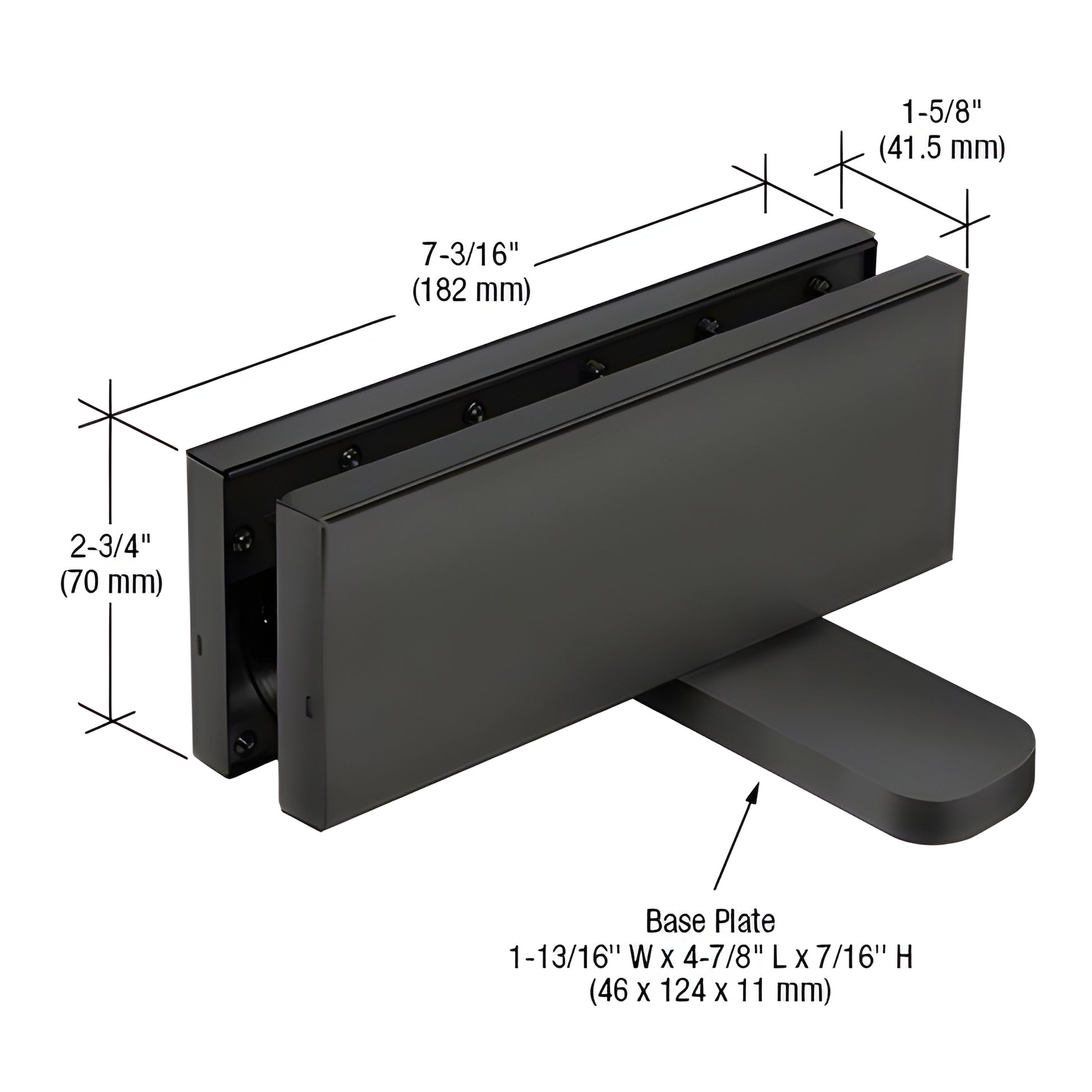

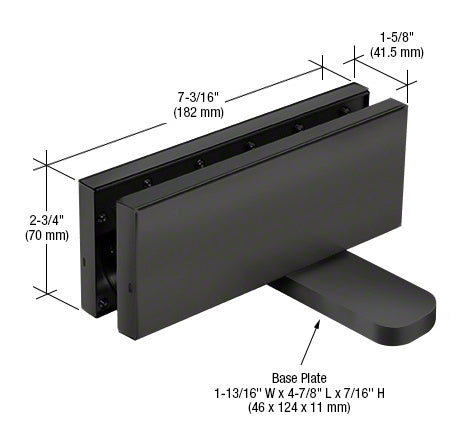

CRL Matte Black Hydraulic Patch Fitting 2-9/16" Setback for Glass Door

• 2-9/16" (65 mm) pivot point
• Flush mount — no hole required in the floor
• Fits tempered glass 3/8" to 1/2" (10–12 mm); glass cut-out required
• Available finishes: Brushed Stainless, Polished Stainless, Satin Anodized, Matte Black
• Interior use only
• Must be used with PH21A top patches

CRL380 Series Hydraulic Patch Fittings (SKU: CRL380MBL) are medium-duty hydraulic patch fittings for interior glass doors. Designed as a flush-mount solution, the CRL380 provides controlled closing without floor or overhead closers. Two adjustment screws let you fine-tune latching speed and swing speed for smooth operation. Maximum door width 39" (1 m); maximum door weight 220 lb (100 kg). Requires glass fabrication (cut-out). Ideal for frameless interior glass door installations where a clean, no-floor-hole appearance and reliable hydraulic closing are required.

Product Warning:
Custom headers with 2-9/16" (65 mm) pivot points must be ordered if needed. These fittings are not compatible with NH36xx and NH72xx stock headers.

Order the CRL380MBL hydraulic patch fitting for a sleek, no-hole interior glass door solution.
