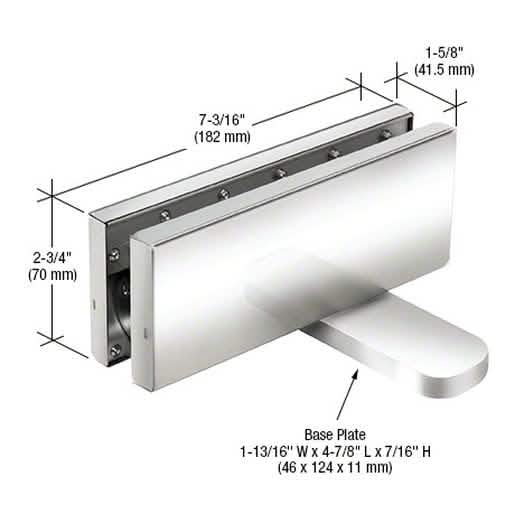

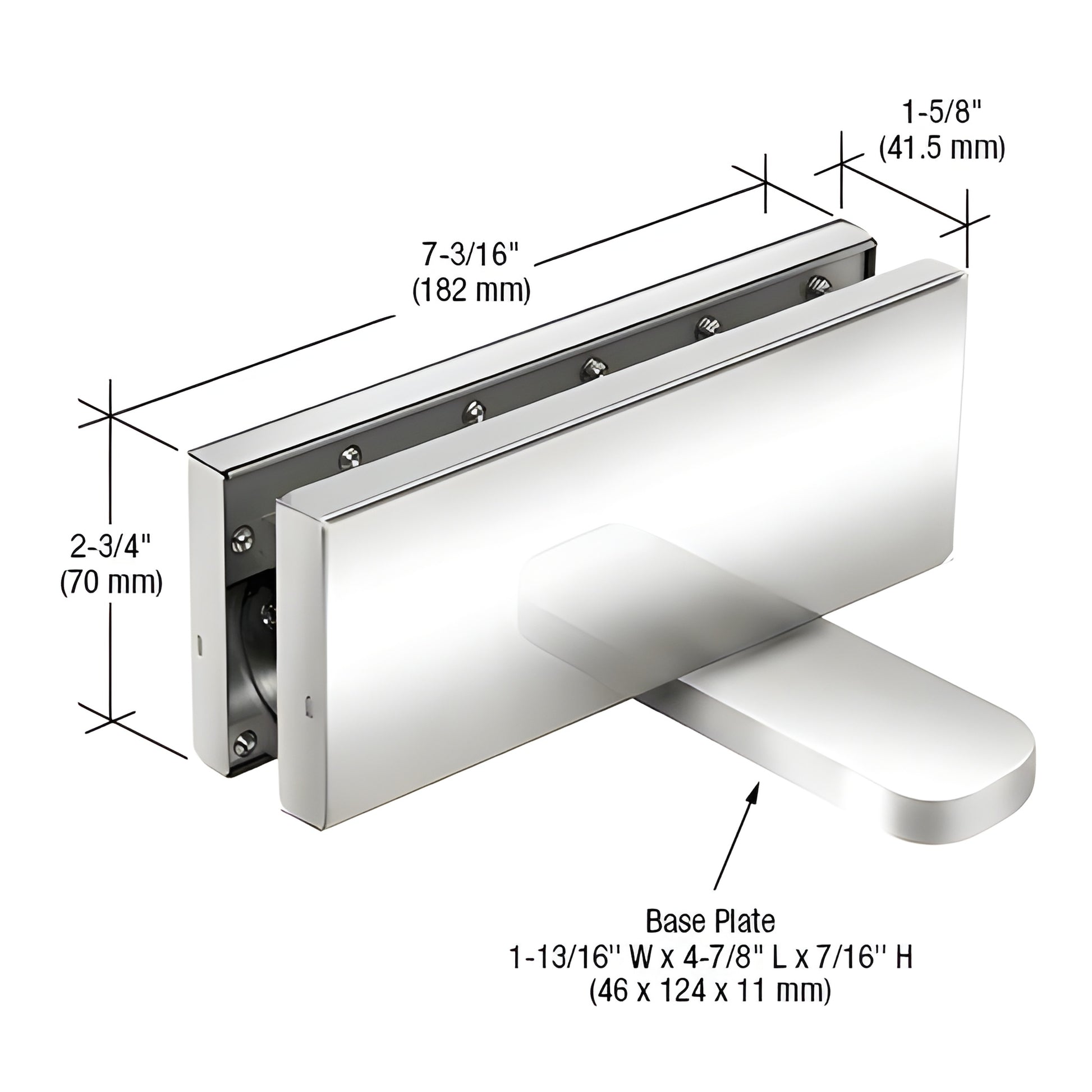

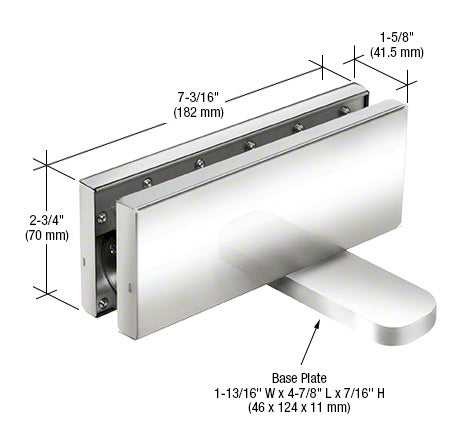

CRL Polished Stainless Steel Hydraulic Patch Fitting 2-9/16" Setback
CRL Polished Stainless Steel Hydraulic Patch Fitting 2-9/16" Setback
Regular price
$302.68 CAD
Regular price
Sale price
$302.68 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL380PS
Shipping Weight: 5.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
2-3/4 in. (70 mm)
Hold Open
No
Maximum Door Width
39 in. (991 mm)
Maximum Panel Weight
220 lbs. (99.8 kg)
Width
1-5/8 in. (41 mm)
Overview
- 2-9/16" (65 mm) Pivot Point
- Available in Brushed Stainless, Polished Stainless, Satin Anodized, and Matte Black finishes
- Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
- Flush mount — no floor hole required
- For interior use only
- Must be used with PH21A top patches
CRL380 Series Hydraulic Patch Fittings (SKU: CRL380PS) are medium-duty hydraulic patch fittings for interior tempered glass doors. Two adjustment screws allow independent control of latching speed and swing speed. Designed as a self-contained floor-closing solution, these hydraulic patch fittings install without additional floor or overhead closing devices. Maximum door width: 39" (1 m). Maximum door weight: 220 lbs (100 kg). Compatible with 3/8" (10 mm) and 1/2" (12 mm) tempered glass; glass fabrication (cut-out) is required.
Product Warning:
Custom headers with 2-9/16" (65 mm) pivot points must be ordered if needed. These fittings are not compatible with NH36xx or NH72xx stock headers.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order CRL380PS hydraulic patch fittings for reliable interior glass door closing—contact CRL or your local distributor to buy or request technical support.
