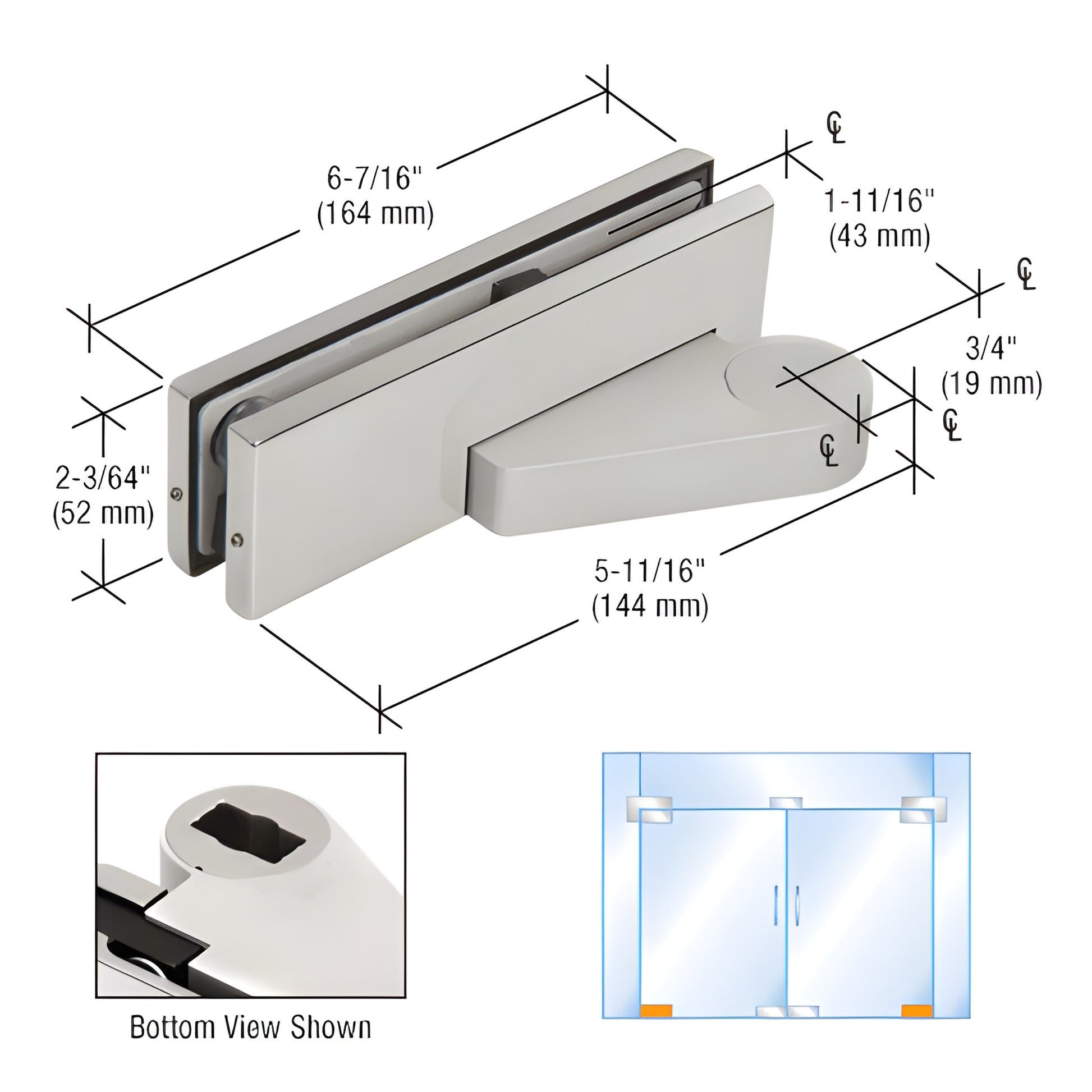

• CRL 0PF10LBS brushed stainless bottom offset patch fitting for 3/8"-1/2" glass, 180 swing, left/right.
1 1

CRL

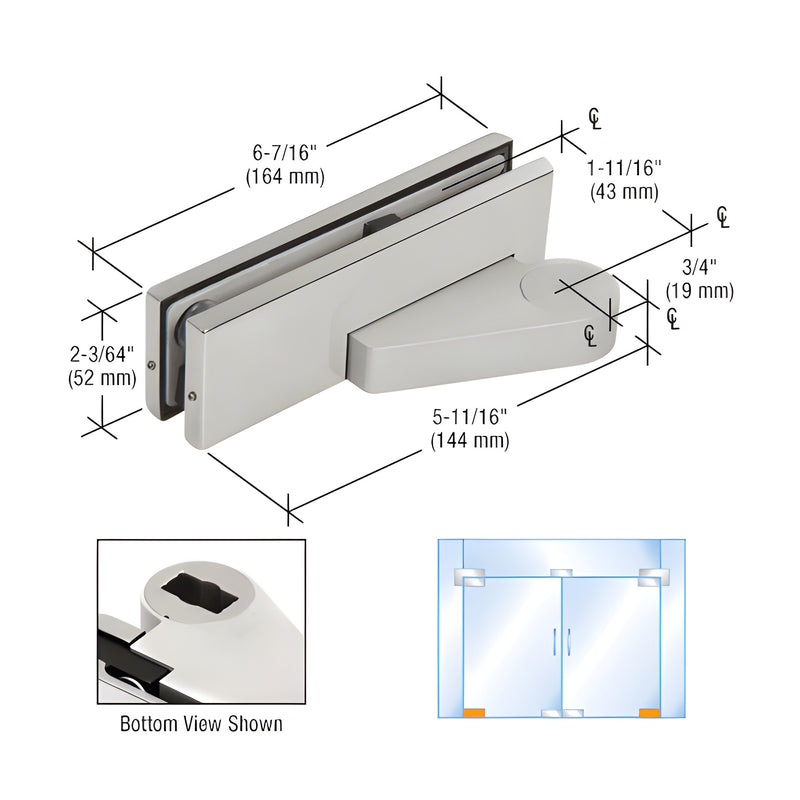

CRL Brushed Stainless Left Offset Bottom Patch Fitting for Glass Door

CRL Brushed Stainless Left Offset Bottom Patch Fitting for Glass Door

$194.17 CAD
$194.17 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0PF10LBS
Shipping Weight: 3.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Left Hand
Series
Offset
Type
Bottom

Overview

  • Allows for 180º Door Swing
  • For 3/8" or 1/2" (10 or 12 mm) Glass
  • Left and Right Handed

The CRL Bottom of Door Offset Patch Fitting (SKU: 0PF10LBS) is a stainless steel offset patch fitting engineered for glass doors, enabling a full 180º door swing. Available in brushed or polished stainless steel finishes and configured for left- or right-hand installation. Glass fabrication templates are included for accurate installation.


INCLUDES:
- High Density Cast Body
- Cover Plates (Finish of Your Choice)
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) Glass
- Template and Instructions

SPECIFICATIONS:
For Use With:
- CRL8300 Series Floor Closers
- CRL8400 Series Floor Closers
- INT402 Bottom Free Swinging Pivot
- INT403 Adjustable Bottom Free Swinging Pivot
- INT406 Adjustable Bottom Free Swinging Pivot

Glass Fabrication Required:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

Comes With: Template and Instructions

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For more details, see the Stainless Steel Disclaimer in Technical References.


Key differentiators: durable high-density cast body, compatible with CRL floor closers and pivots, and included glass templates for precise glass door fabrication. Ideal for commercial glass door installations requiring a 180° swing.

Ready to specify this stainless steel bottom of door offset patch
