CRL Matte Black Left-Hand Offset Bottom Glass Door Patch Fitting
Item# 0PF10LMBL
Shipping Weight: 3.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Matte Black
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Left Hand
Series
Offset
Type
Bottom
- Allows for 180º door swing
- For 3/8" or 1/2" (10 or 12 mm) glass
- Left and right hand configurations

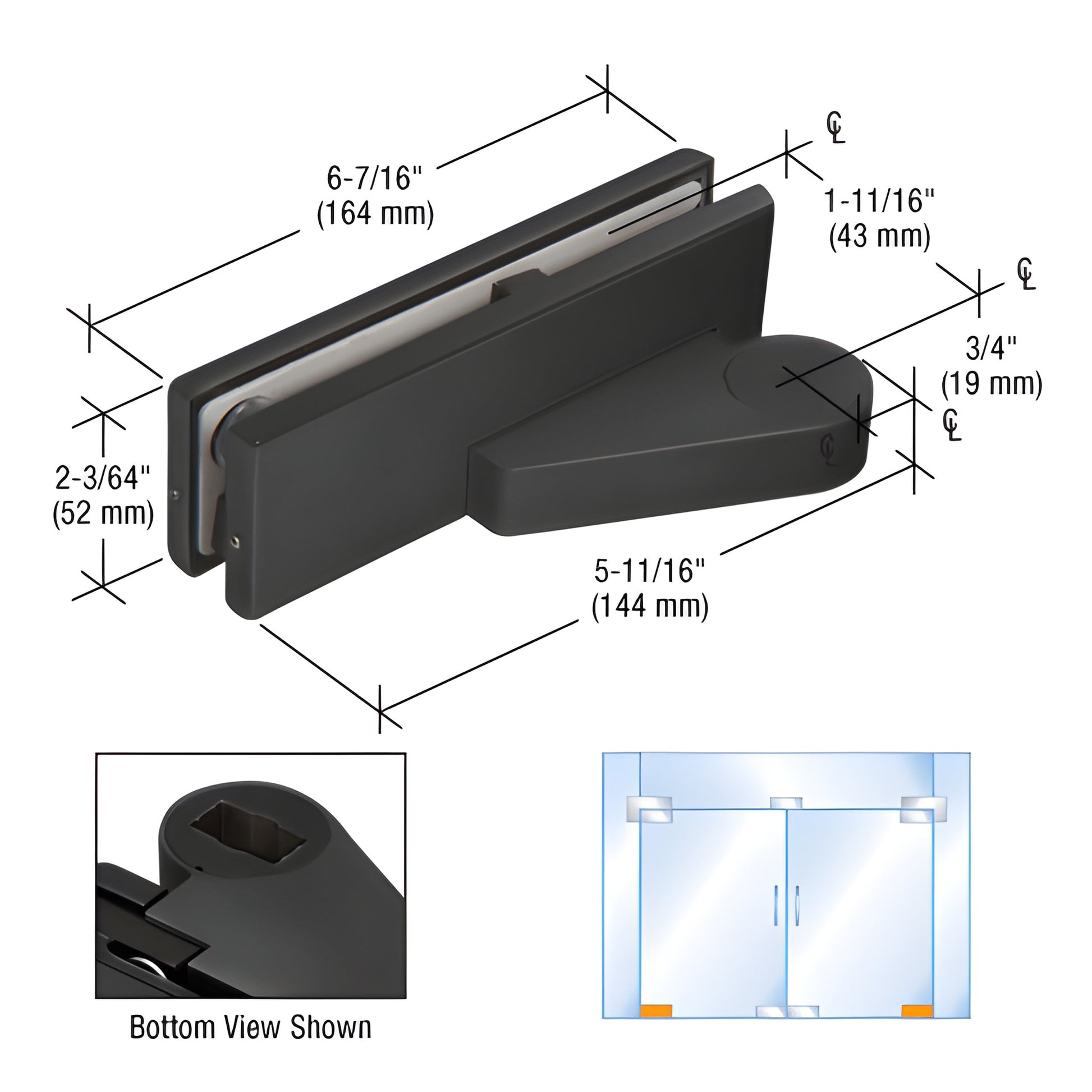

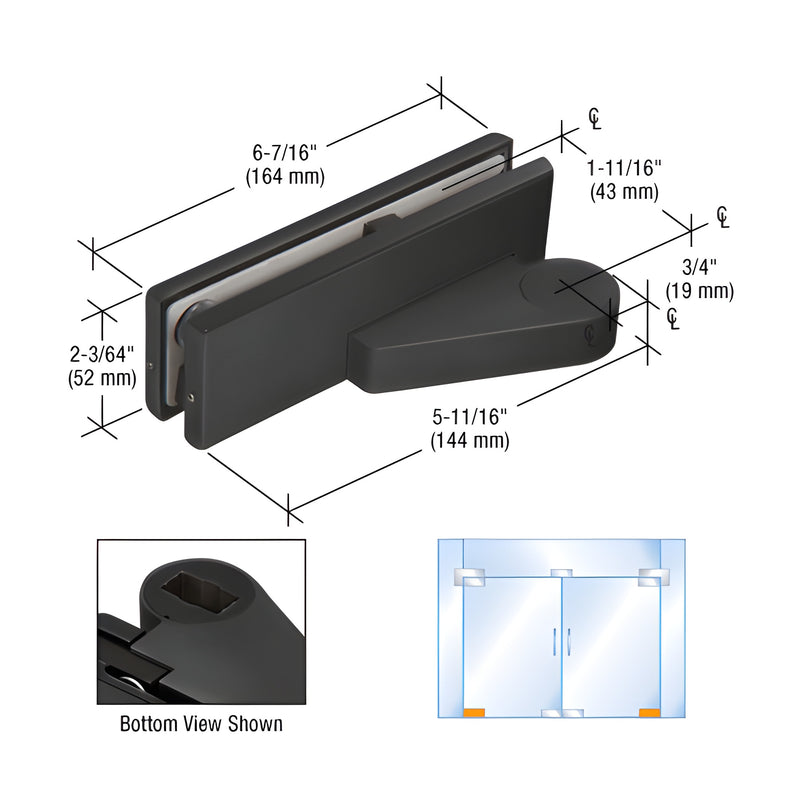

CRL Bottom of Door Offset Patch Fitting (SKU: 0PF10LMBL) is a high-density cast offset patch fitting for frameless glass doors. Designed to mate with CRL offset fittings and pivots, it provides a full 180° door swing and is available in brushed or polished stainless steel finishes. Glass fabrication templates and installation instructions are included.
Includes:
- High-density cast body
- Cover plates in your choice of finish
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) glass
- Template and instructions
Specifications:
- For use with CRL8300 and CRL8400 series floor closers
- Compatible with INT402, INT403, and INT406 bottom free-swinging pivots
- Glass fabrication required: one 3/4" (19 mm) diameter hole and corner notch
Notes: Product images are representative; colors may vary by monitor. Shipping weights are approximate—contact CRL Customer Service for exact weight if required for shipping cost calculation.
Order the CRL bottom of door offset patch fitting for glass doors (SKU: 0PF10LMBL) to ensure durable, stainless-steel hardware and reliable 180° swing—add to cart or contact sales for bulk pricing.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
CAD Drawings - dwg
