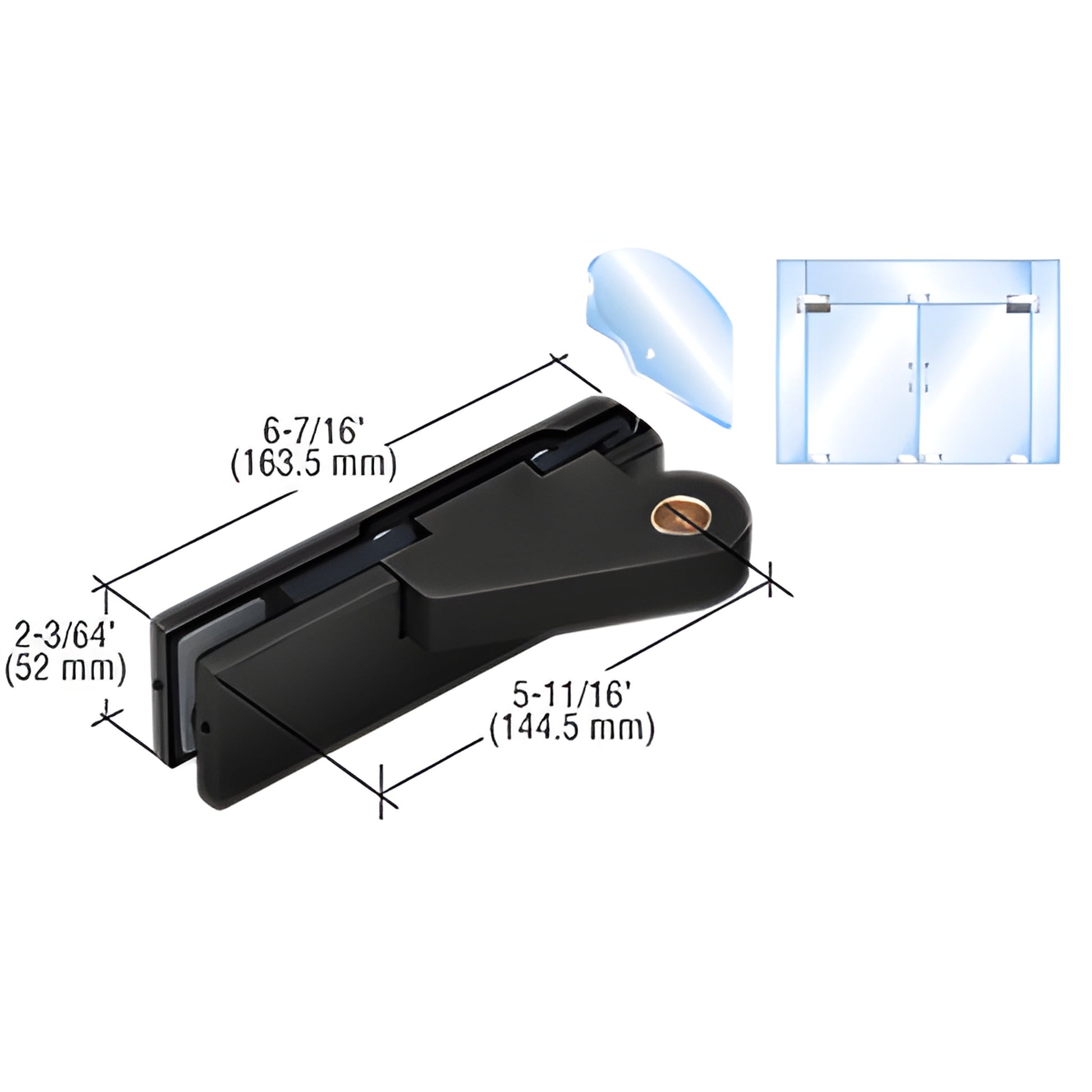

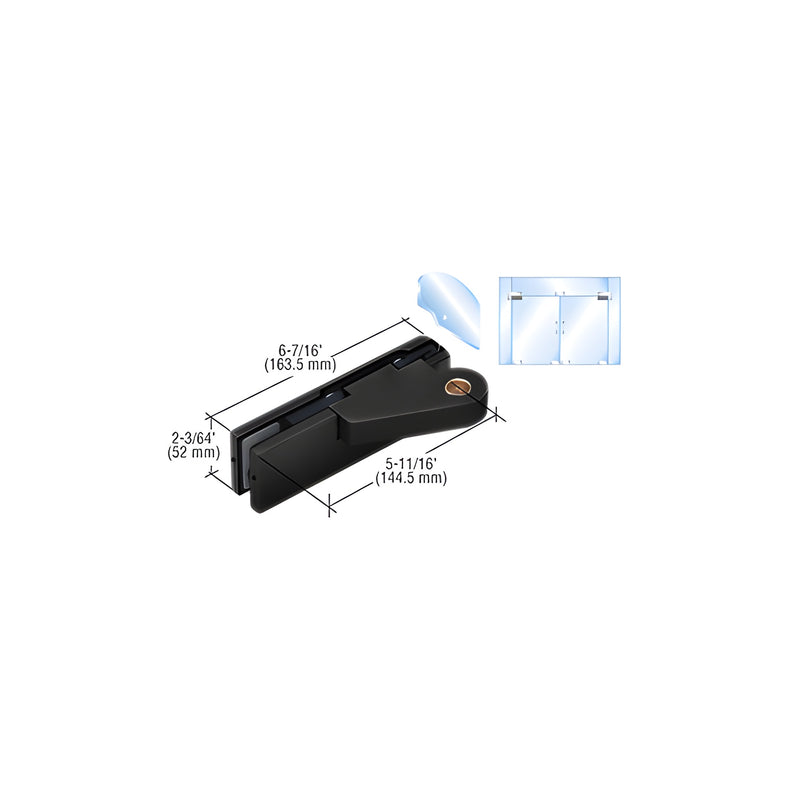

CRL Matte Black Left Offset Top Patch Fitting for Frameless Door

• For 3/8" or 1/2" (10 or 12 mm) glass
• Allows for 180º door swing
• Left- and right-handed configurations
• Works with CRL 3/4" (19 mm) offset arm bottom door rails with no alterations
• Use monolithic tempered glass

The CRL Top of Door Offset Patch Fitting is engineered for glass doors that require full 180º swing and seamless integration with offset arm bottom door rails. No alterations are required for compatibility with CRL 3/4" (19 mm) offset arm bottom door rails, and the fitting also mates with other offset patch fittings. Available in brushed or polished stainless steel finishes for corrosion resistance and a premium look.

INCLUDES:

• High-density cast body
• Cover plates (finish of your choice)
• Gasket for 3/8" or 1/2" (10 or 12.7 mm) glass
• Template and instructions

SPECIFICATIONS / COMPATIBILITY:

• For use with: 0PF40 transom patch fittings
• Compatible with: 1NT401 surface mounted top pivot and 1NT405 threaded top pivot

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch

COMES WITH: Template and instructions

SKU: 0PF20LMBL

Optimize your frameless glass door installation with this durable top-of-door offset patch fitting—order now or contact us for compatibility help.
