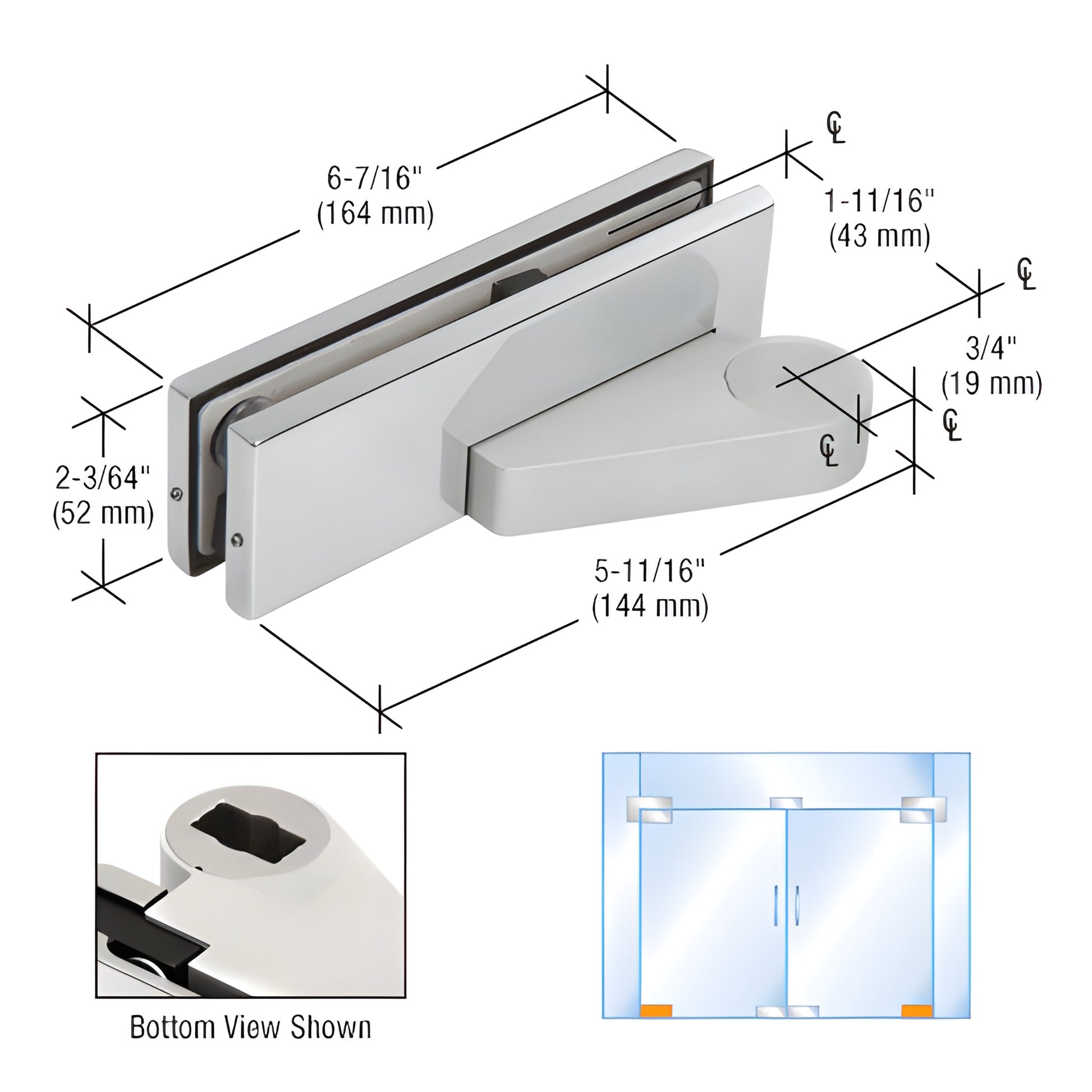

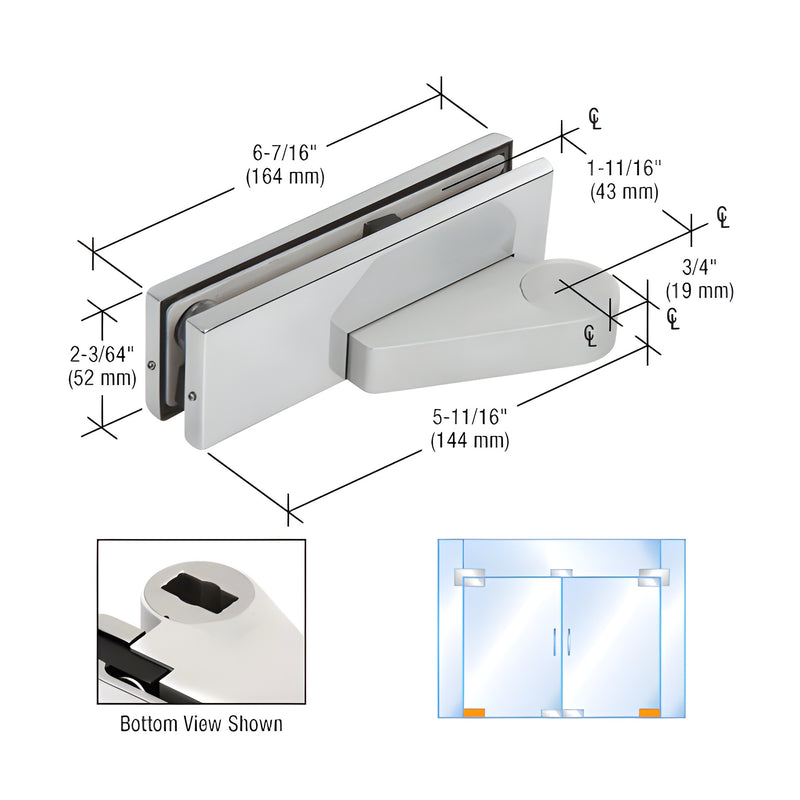

CRL Polished Stainless Left Offset Bottom Door Patch Fitting
Item # 0PF10LPS
$181.04
CAD
Finish (3)
-
Brushed Stainless Steel -
Matte Black -
Polished Stainless Steel
Type (2)
- Bottom
- Top
Overview
| SKU | 0PF10LPS |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Handing | Left Hand |
| Series | Offset |
| Type | Bottom |
Description
- Allows for 180º Door Swing
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Left and Right Handed
The CRL Bottom of Door Offset Patch Fitting is designed to work with any of our other offset fittings. Allowing for a full 180º door swing, these fittings are available for right or left hand configurations, in your choice of brushed or polished stainless steel. Glass fabrication templates are included in the box.
INCLUDES:
- High Density Cast Body
- Cover Plates (Finish of Your Choice)
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) Glass
- Template and Instructions
SPECIFICATIONS:
For Use With:
- CRL8300 Series Floor Closers
- CRL8400 Series Floor Closers
- INT402 Bottom Free Swinging Pivot
- INT403 Adjustable Bottom Free Swinging Pivot
- INT406 Adjustable Bottom Free Swinging Pivot
Glass Fabrication Required:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
Comes With: Template and Instructions
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
Templates
CAD Drawings - pdf
- PDFCommercial Patch Hardware European Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware North American Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.pdf
CAD Drawings - dwg
- DocumentCommercial Patch Hardware European Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware North American Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.dwg
Cleaning & Maintenance
