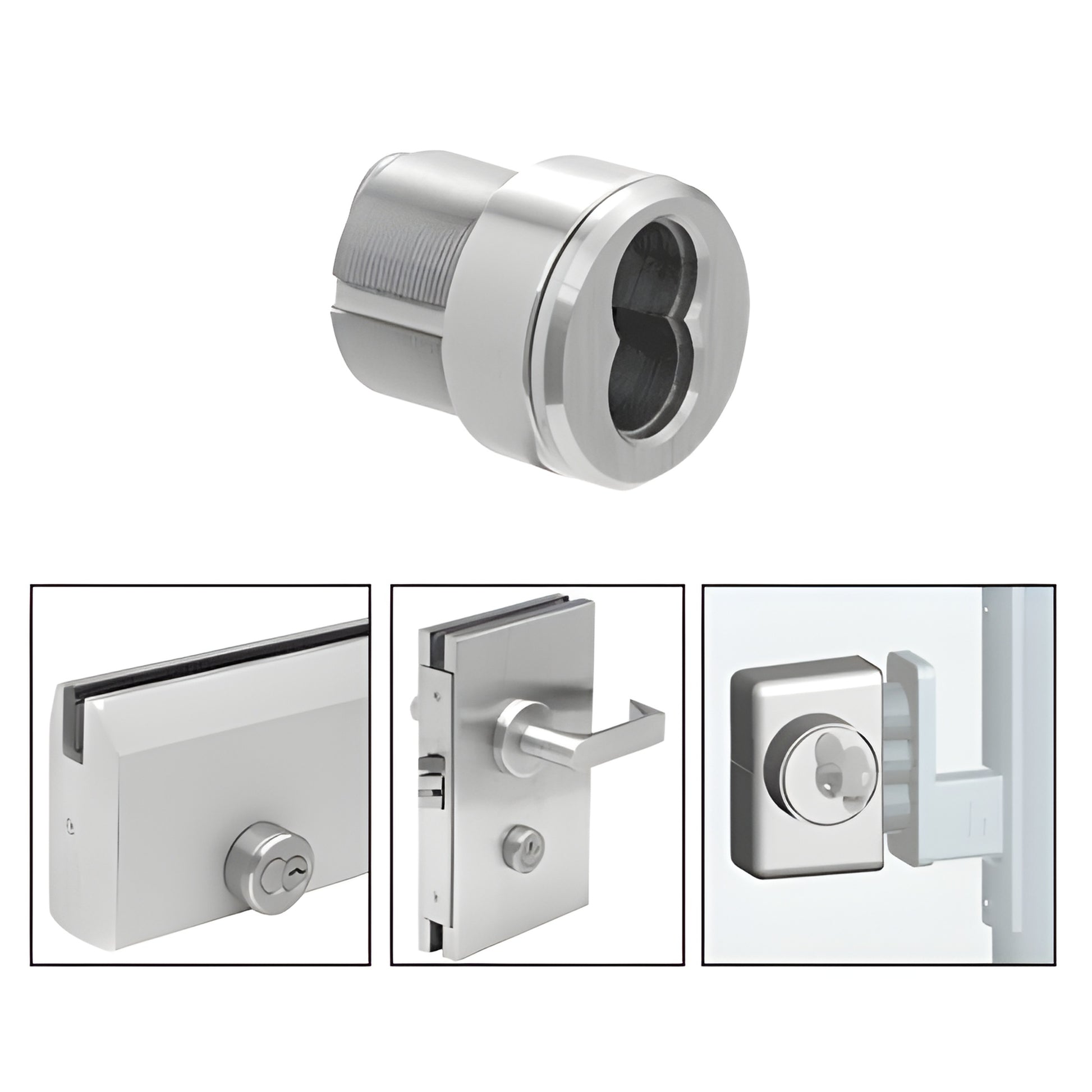

CRL Brushed Stainless Mortise Lock Housing for 7-Pin SFIC
CRL Brushed Stainless Mortise Lock Housing for 7-Pin SFIC
Regular price
$83.06 CAD
Regular price
Sale price
$83.06 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 1CHBS
Shipping Weight: 4.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-5/32 in. (29.4 mm)
Finish/Color
Brushed Stainless Steel
Length
1-5/16 in. (33.3 mm)
Material
Brass
Type
Mortise
Overview
- Compatible with any 7-pin SFIC type core
- Available in several architectural finishes

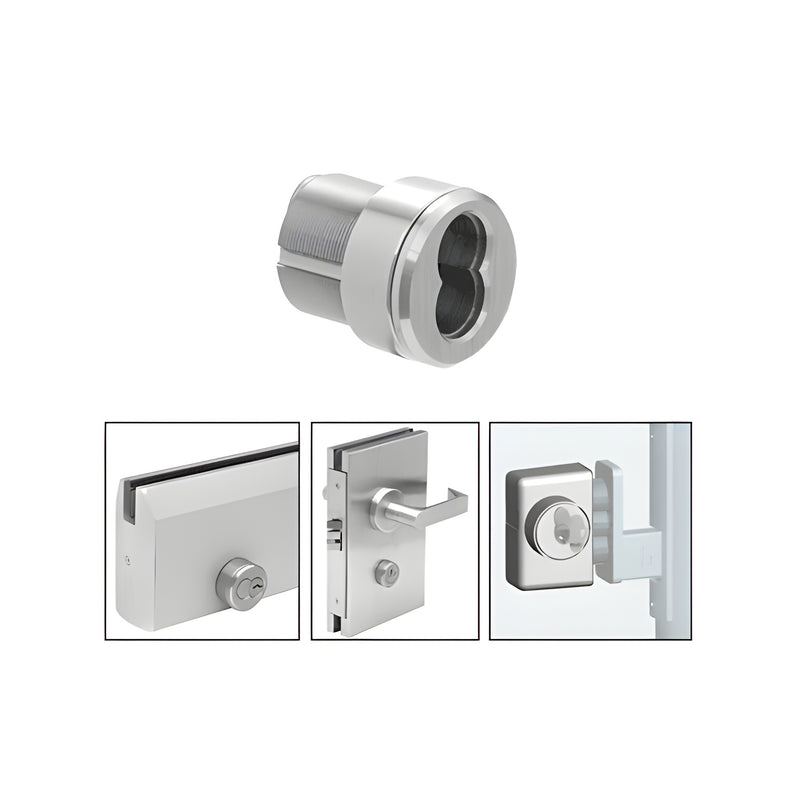

CRL Mortise Housings for 7-Pin Small Format Interchangeable Cores (SFIC) are a direct replacement for mortise keyed cylinders, enabling a fast conversion to a 7-pin interchangeable core system. Convert Door Rails with locks, 4" x 10" (102 x 254 mm) and 6" x 10" (152 x 254 mm) Center Locks, or Panic and Deadbolt Handles by removing the existing mortise cylinder, choosing the correct cam, and installing the new housing and SFIC core. Ideal for facilities requiring key control and quick core changes without replacing locks—SKU: 1CHBS.
Key differentiators:
- Direct-fit solution for 7-pin SFIC mortise housings—no full lock replacement required
- Includes multiple cams to support common center-lock applications
- Available in architectural finishes to match door hardware
Ordering information
• Each mortise housing includes a 1/2" (12 mm) tall cylinder ring and ships with one DRA10CAM (installed), one DRACAM, and one cam to simplify conversion with 6" x 10" (152 x 254 mm) Center Locks.
• Not compatible with larger removable core systems.
• When used with CRL Low Profile Wedge-Lock® Door Rails, an additional DRA256 Series cylinder ring must be ordered separately.
• SFIC cores must be ordered separately.
Product warning
When used with AMR205 patch locks, an additional DRA256 cylinder ring must be used.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
