CRL Matte Black Mortise Lock Housing for 7-Pin SFIC

• Compatible with Any 7-Pin SFIC Type Core
• Available in Several Architectural Finishes

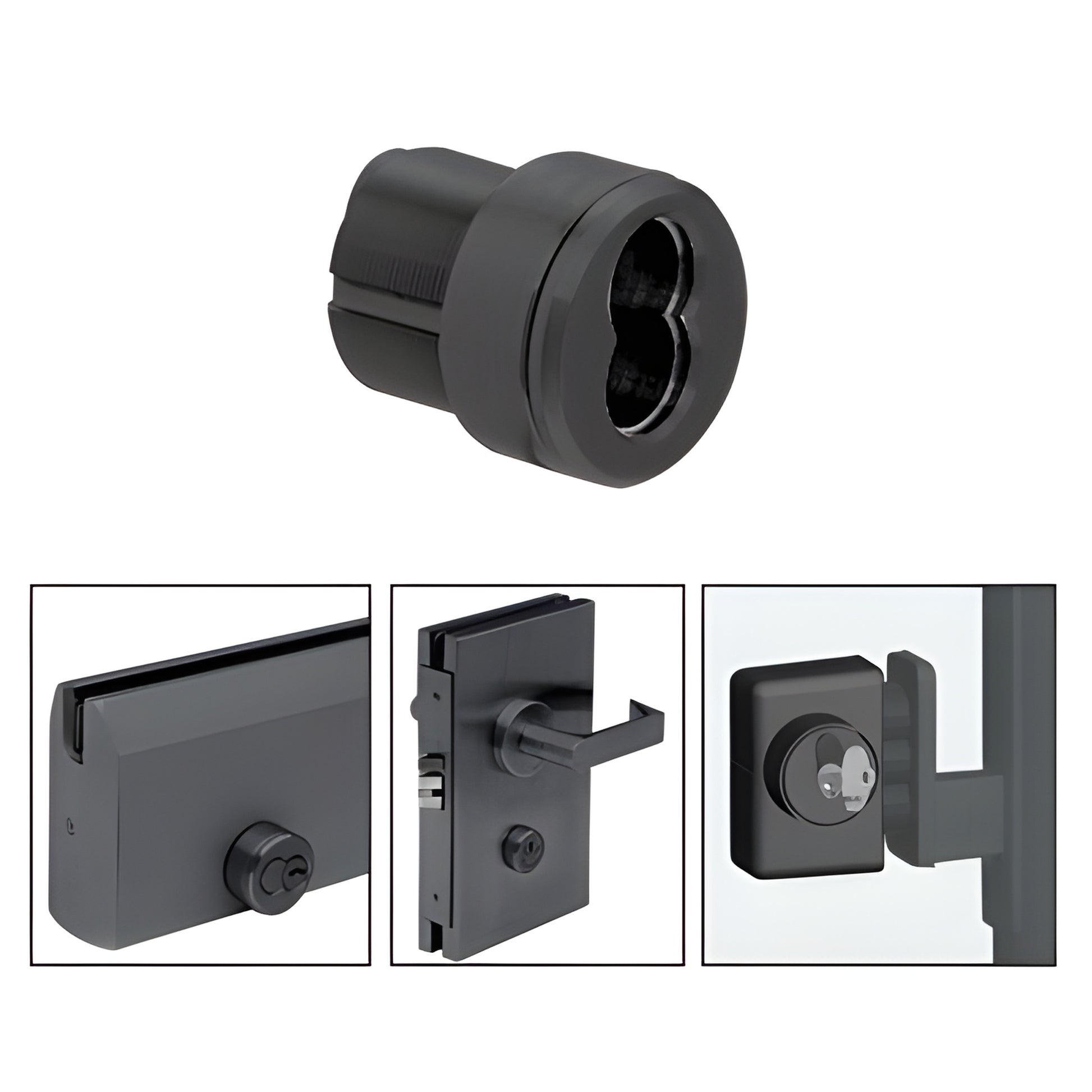

CRL Mortise Housings for 7-Pin Small Format Interchangeable Cores (SFIC) convert standard mortise cylinders to a 7-pin SFIC interchangeable core system for fast rekeying and reduced downtime. Use these mortise housings to replace CRL Mortise Keyed Cylinders on Door Rails with locks, 4" x 10" (102 x 254 mm) and 6" x 10" (152 x 254 mm) Center Locks, panic devices, and deadbolt handles. Remove the existing mortise cylinder, select the appropriate cam, and install the new housing and SFIC core—simple field conversion for locksmiths and facilities managers. SKU: 1CHMBL.

ORDERING INFORMATION:
• Each mortise housing includes a 1/2" (12 mm) tall cylinder ring and ships with one DRA10CAM (installed), one DRACAM, and one additional cam for easy conversion when used with our 6" x 10" (152 x 254 mm) Center Locks.
• Not compatible with larger removable core systems.
• When used with CRL Low Profile Wedge-Lock® Door Rails, an additional DRA256 Series Cylinder Ring must be ordered separately.
• SFIC cores are sold separately.


Product Warning:

When used with AMR205 patch lock, an additional DRA256 cylinder ring must be used.
