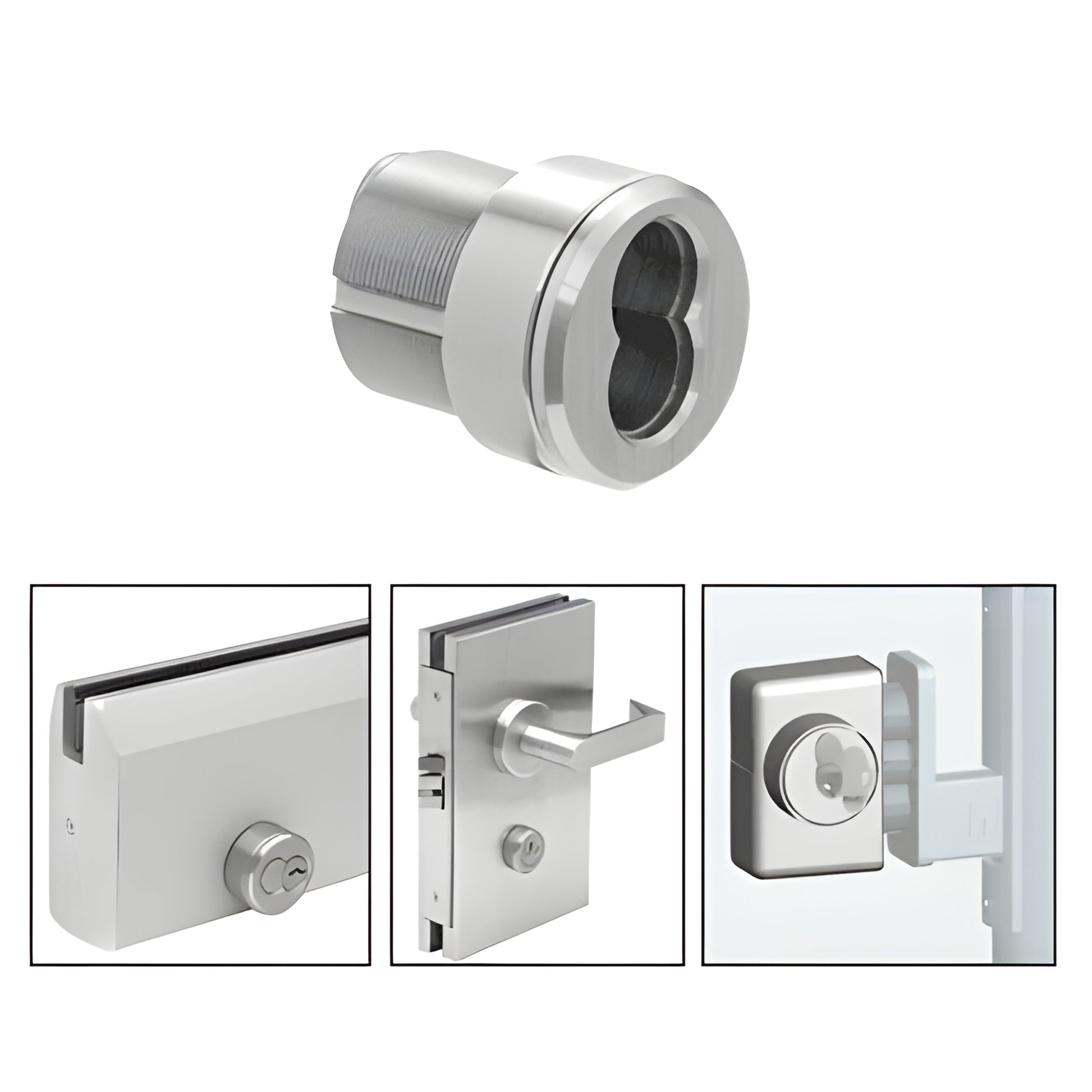

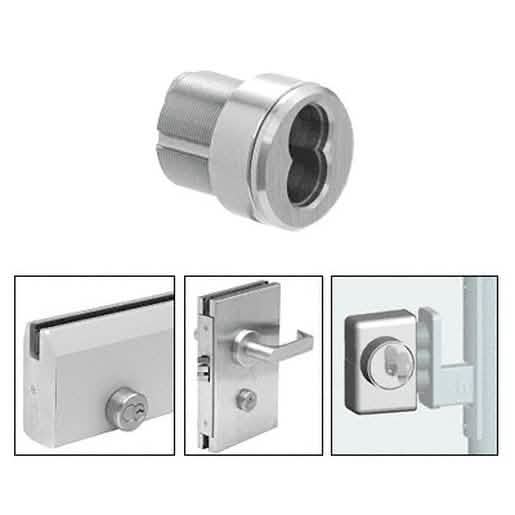

CRL Satin Anodized 7-Pin SFIC Mortise Housing for Door Locks

• Compatible with Any 7-Pin SFIC Type Core
• Available in Several Architectural Finishes

CRL Mortise Housings for 7-Pin Small Format Interchangeable Cores (SFIC) are replacement mortise housings (SKU: 1CHSA) designed to convert our mortise keyed cylinders to a 7-pin SFIC interchangeable core system. Use them to convert Door Rails with locks, 4" x 10" (102 x 254 mm) and 6" x 10" (152 x 254 mm) Center Locks, panic hardware, or deadbolt handles to an interchangeable core configuration. Remove the existing mortise cylinder, select the correct cam, and install the new housing and SFIC core for a quick retrofit—ideal for facility rekeying and master key systems.


ORDERING INFORMATION:

• Each mortise housing includes a 1/2" (12 mm) tall cylinder ring and ships with one DRA10CAM (installed), one DRACAM, and one additional cam for easy conversion with our 6" x 10" (152 x 254 mm) Center Locks.
• Not compatible with larger removable core systems; for 7-pin SFIC use only.
• When used with CRL Low Profile Wedge-Lock® Door Rails, order the DRA256 Series Cylinder Ring separately.
• SFIC cores are sold separately—order 7-pin SFIC cores to complete your interchangeable core mortise assembly.

Product Warning:

When installed with the AMR205 patch lock, an additional DRA256 cylinder ring is required.

Order SKU 1CHSA today to upgrade to a 7-pin SFIC interchangeable core mortise housing—contact CRL for assistance or to confirm compatibility.
