CRL
CRL PTH Bottom Patch Fitting, Brushed Stainless for Glass Doors
Item# PTH21BS
Shipping Weight: 1.66 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.66 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
4-7/16 in. (113 mm)
Series
PTH
Type
Bottom
Width
1-3/16 in. (30 mm)
With Insert
No
- Complete selection for single or double doors, transoms, and sidelites fittings
- Fits 3/8" or 1/2" (10 or 12 mm) glass
- Available in two finishes
- Use with monolithic tempered glass

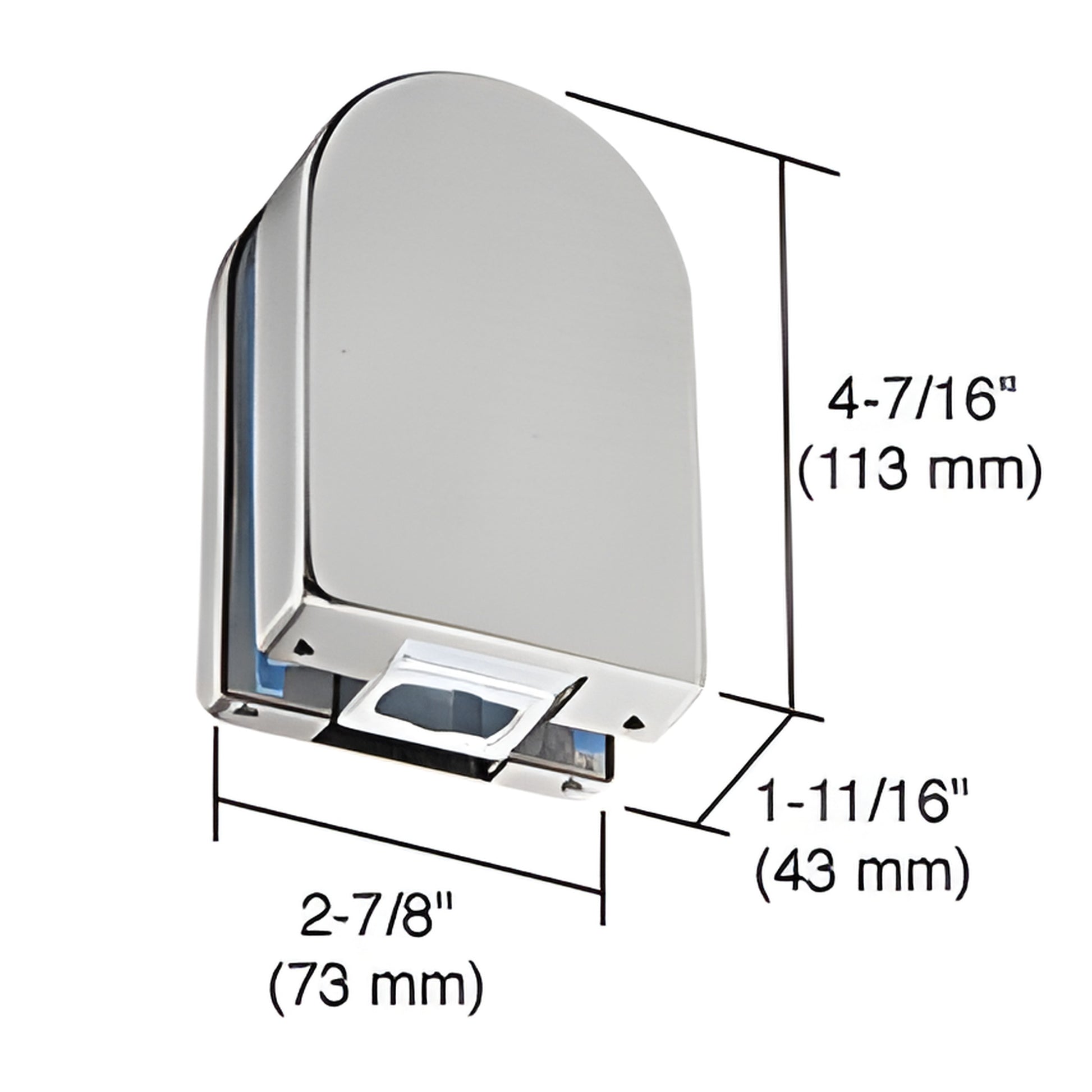

CRL PTH Series Bottom Door Patch Fitting (SKU: PTH21BS) includes a high-density cast body, floor-closer type insert, finished cover plate, and gaskets for 3/8" and 1/2" (10 and 12 mm) glass. This glass door bottom patch fitting is commonly used with CRL8300, CRL8400 or CRL8500 Series floor closers, 1NT402 bottom free-swinging pivot, 1NT406 adjustable free-swing bottom pivot, and J990 Series door closers; accepts 7/8" (22 mm) flat tapered spindles. Designed for frameless glass doors, it provides durable performance for commercial glass door installations and storefronts.
Glass fabrication required: Two 13/16" (20 mm) diameter holes and one notch (template included).
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
Order the PTH21BS glass door bottom patch fitting for reliable, commercial-grade performance — add to cart or contact CRL for technical support.
CAD Drawings - dwg
