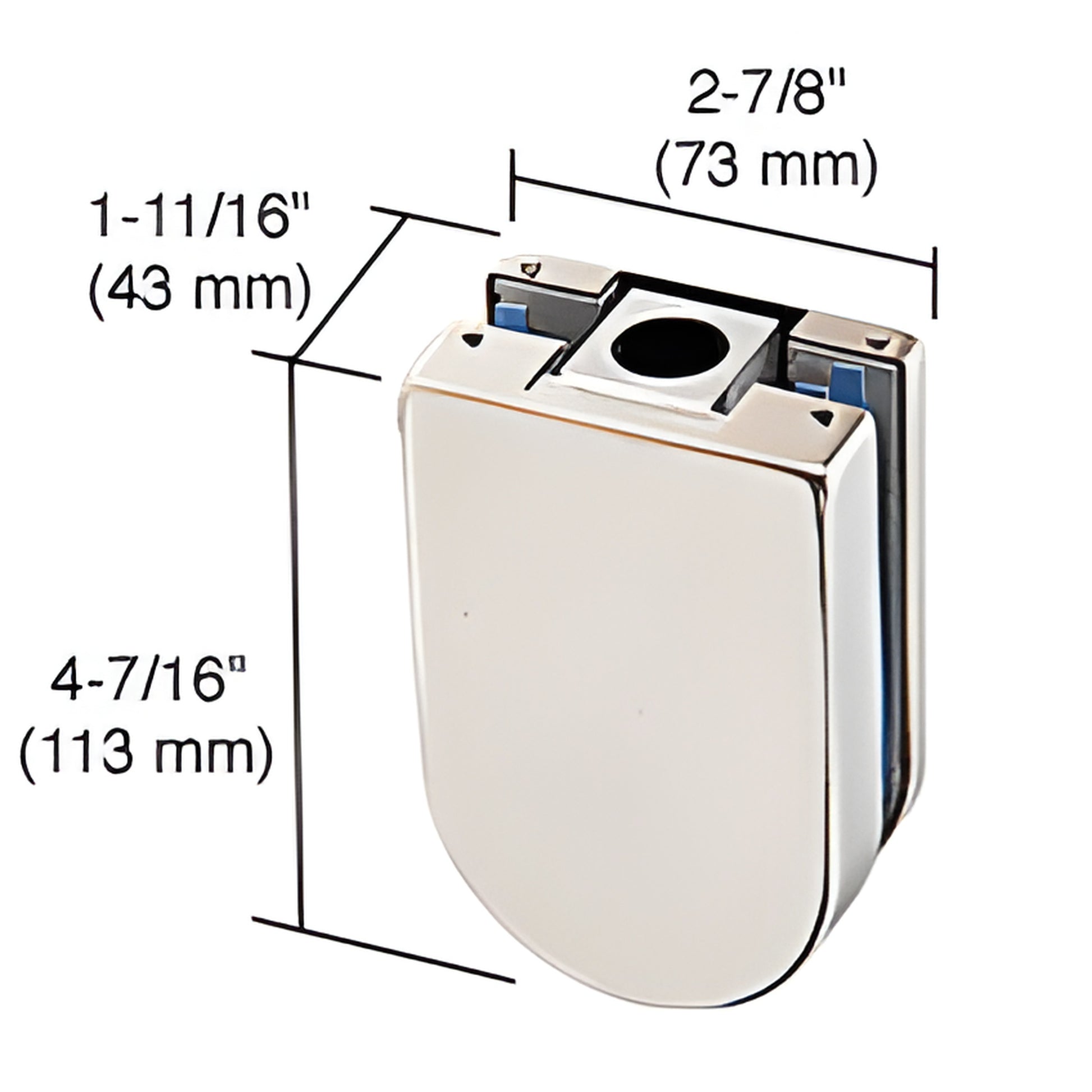

CRL PTH Polished Stainless Top Patch Fitting for Frameless Glass Door
Item# PTH22PS
Shipping Weight: 1.48 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.48 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
4-7/16 in. (113 mm)
Series
PTH
Type
Top
Width
1-3/16 in. (30 mm)
With Insert
No
- Complete selection for single or double doors, transoms, and sidelites fittings
- Fits 3/8" or 1/2" (10 or 12 mm) glass — for monolithic tempered glass doors
- Available in two finishes
- Glass fabrication template included
This CRL PTH Series Top Door Patch Fitting (SKU: PTH22PS) features a high-density cast body, pivot socket, finished cover plate, and gaskets for 3/8" and 1/2" (10 and 12 mm) glass. Designed for frameless glass door installations, this top patch fitting is commonly used with a PTH23 Top Transom Pivot, CRL860 Walking Beam Pivot, 1NT401 Top Free-Swinging Pivot, or 1NT405 Header Mount Top Pivot.
GLASS FABRICATION REQUIRED:
Two 13/16" (20 mm) diameter holes and one notch (template included).
FOR USE WITH:
PTH23 Top Transom Pivot; CRL9040WBP Walking Beam Pivot; 1NT401 Top Free-Swinging Pivot; 1NT405 Header Mount Top Pivot.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before placing your order. Product images are actual product or close representations; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the PTH22PS top door patch fitting for reliable, heavy-duty glass door hardware—add to cart or contact us for technical support.
CAD Drawings - dwg
