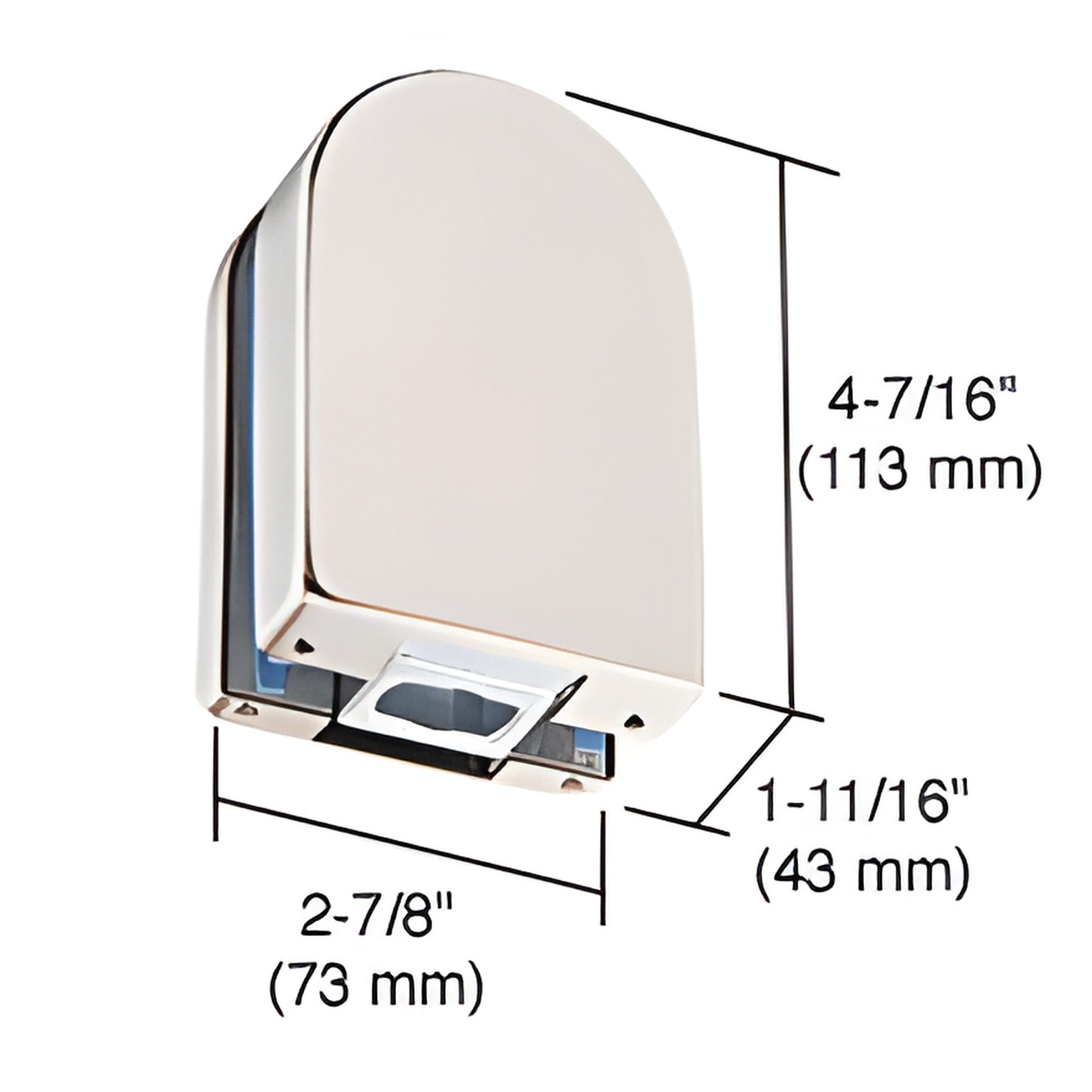

CRL Polished Stainless PTH Series Bottom Door Patch Fitting
Item # PTH21PS
$69.90
CAD
Finish (2)
-
Brushed Stainless Steel -
Polished Stainless Steel
Type (2)
- Bottom
- Top
Overview
| SKU | PTH21PS |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Height | 4-7/16 in. (113 mm) |
| Series | PTH |
| Type | Bottom |
| Width | 1-15/16 in. (49 mm) |
| With Insert | No |
Description
- A Complete Selection for Single or Double Doors, Transoms, and Sidelites Fittings
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Available in Two Finishes
- Use Monolithic Tempered Glass
CRL PTH Series Bottom Door Patch Fitting includes high density cast body, floor closer type insert, finished cover plate, and gaskets for 3/8" and 1/2" (10 and 12 mm) glass. This fitting is commonly used with either CRL8300, CRL8400 or CRL8500 Series Floor Closers,1NT402 Bottom Free Swinging Pivot, or 1NT406 Adjustable Free Swing Bottom Pivot and J990 Series Door Closers; 7/8" (22 mm) Flat Tapered Spindles.
GLASS FABRICATION REQUIRED: Two 13/16" (20 mm) Diameter Holes and One Notch (Template Included)
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
Templates
CAD Drawings - pdf
- PDFCommercial Patch Hardware European Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware North American Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.pdf
CAD Drawings - dwg
- DocumentCommercial Patch Hardware European Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware North American Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.dwg
Cleaning & Maintenance
