- Uses Top Loading Roll-In Glazing Gasket for 3/8" and 1/2" (10 and 12 mm) Glass
- Ideal for Ceiling or Floor Installations
- Use Monolithic Tempered Glass
- 7 Standard Architectural Finishes
- Custom Finishes and Powder Painting Available
- Custom Lengths Available

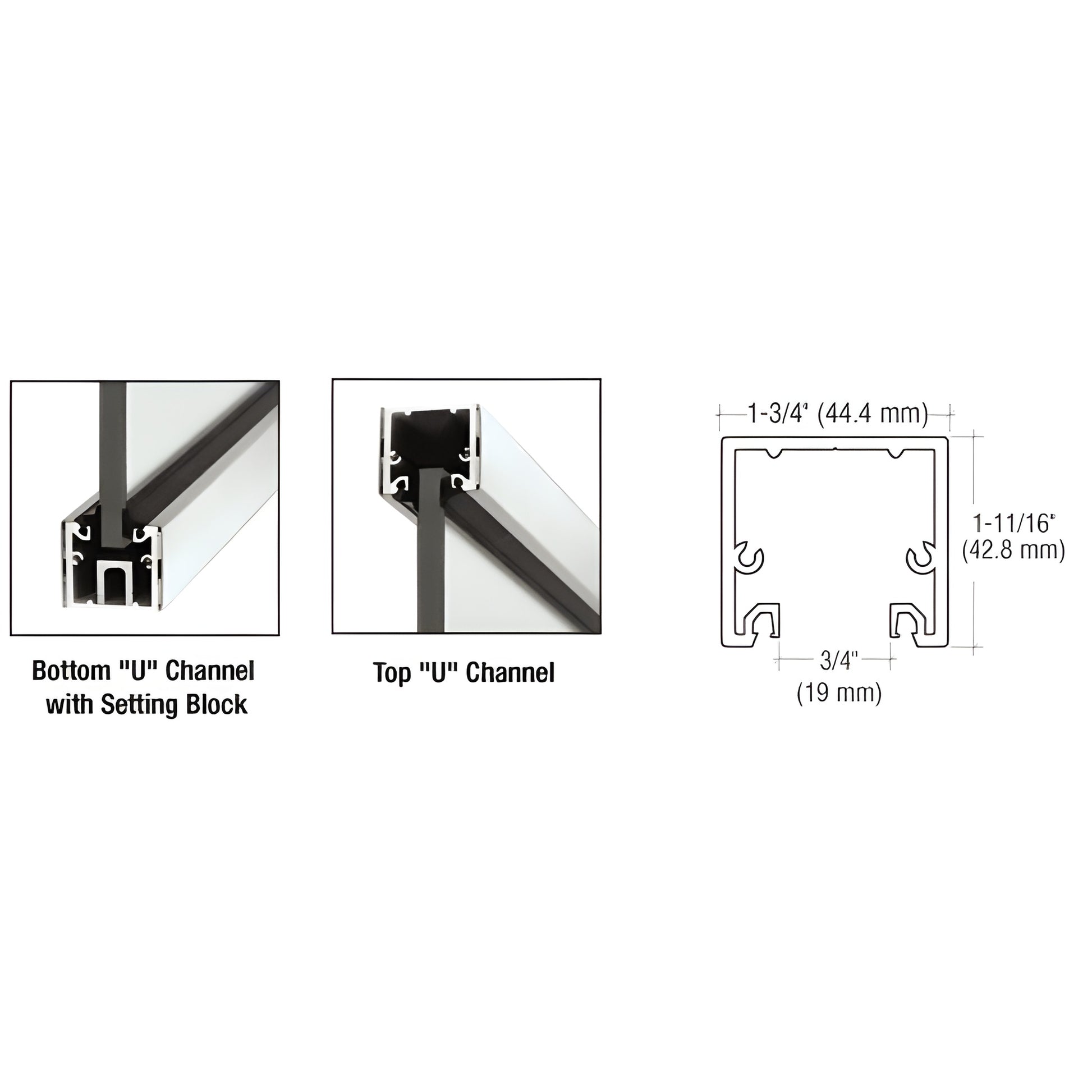

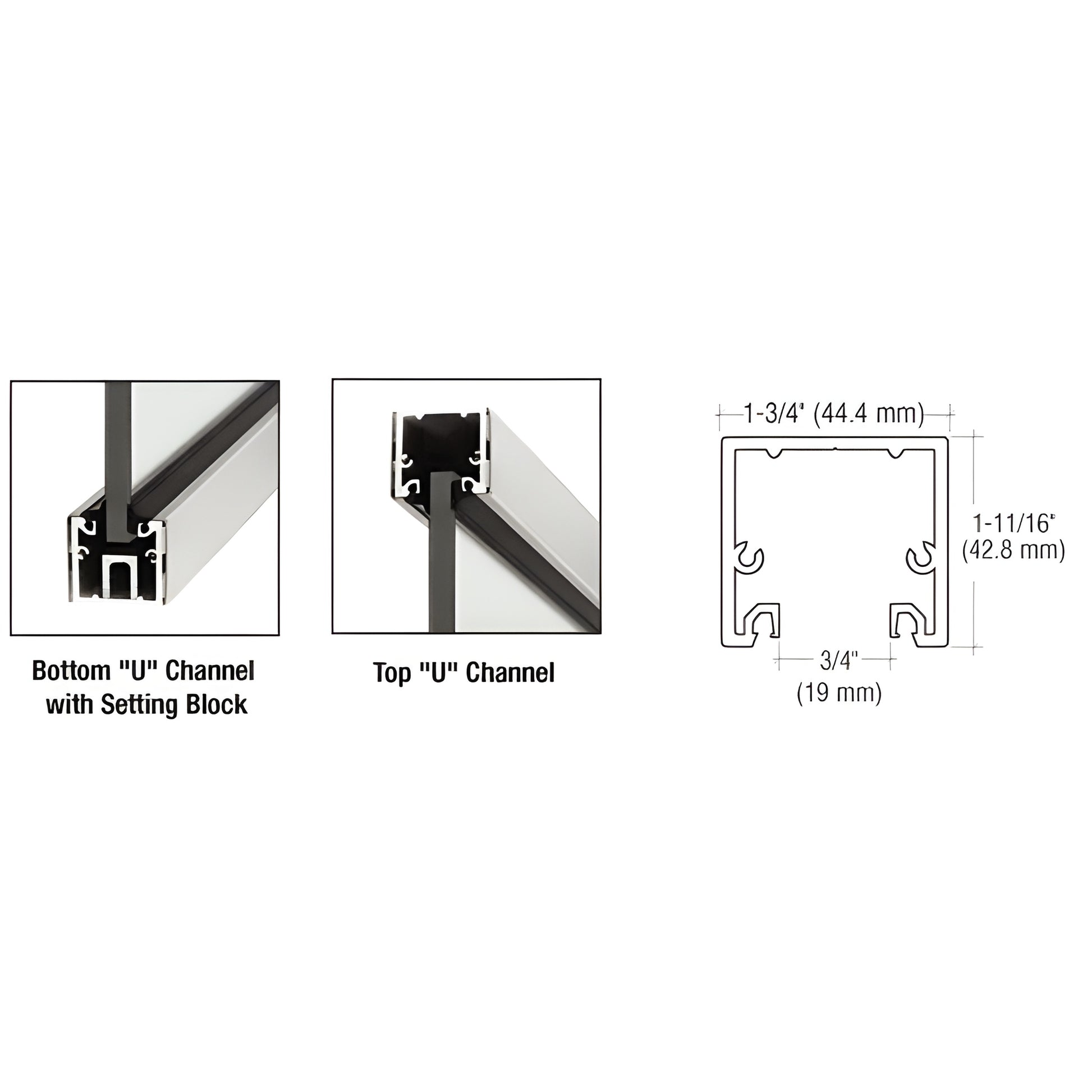

CRL Regular U-Channel with Top Load Roll-In Glazing Gasket
was designed to be used with our Patch Hardware, or our Header for Overhead Door Closers with Fixed Sidelites and Door Rail System. The design allows it to be surface or recessed mounted, with the Top Load Roll-In Glazing Gasket securing the glass.
NOTE
For installations using 1/2" (12 mm) glass, the Roll-In Glazing Gasket is included in the package. If using 3/8" (10 mm) glass the Roll-In Glazing Gasket must be ordered separately.
IMPORTANT NOTE
Setting Blocks are not included with U-Channels and must be purchased separately. Part # for setting blocks is UCSB4.
Product Warning
CRL Does Not Recommend Cutting This Item Due to Gauge of Metal. If a cut is needed, additional cutting charges may apply.
This material is Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact
Technical Sales
.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
