CRL 120in Satin Anodized U-Channel w/ Roll-In Top Gasket for Glass
CRL 120in Satin Anodized U-Channel w/ Roll-In Top Gasket for Glass
Regular price
$282.36 CAD
Regular price
Sale price
$282.36 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UCSA3812SL
Shipping Weight: 8.4 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.4 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

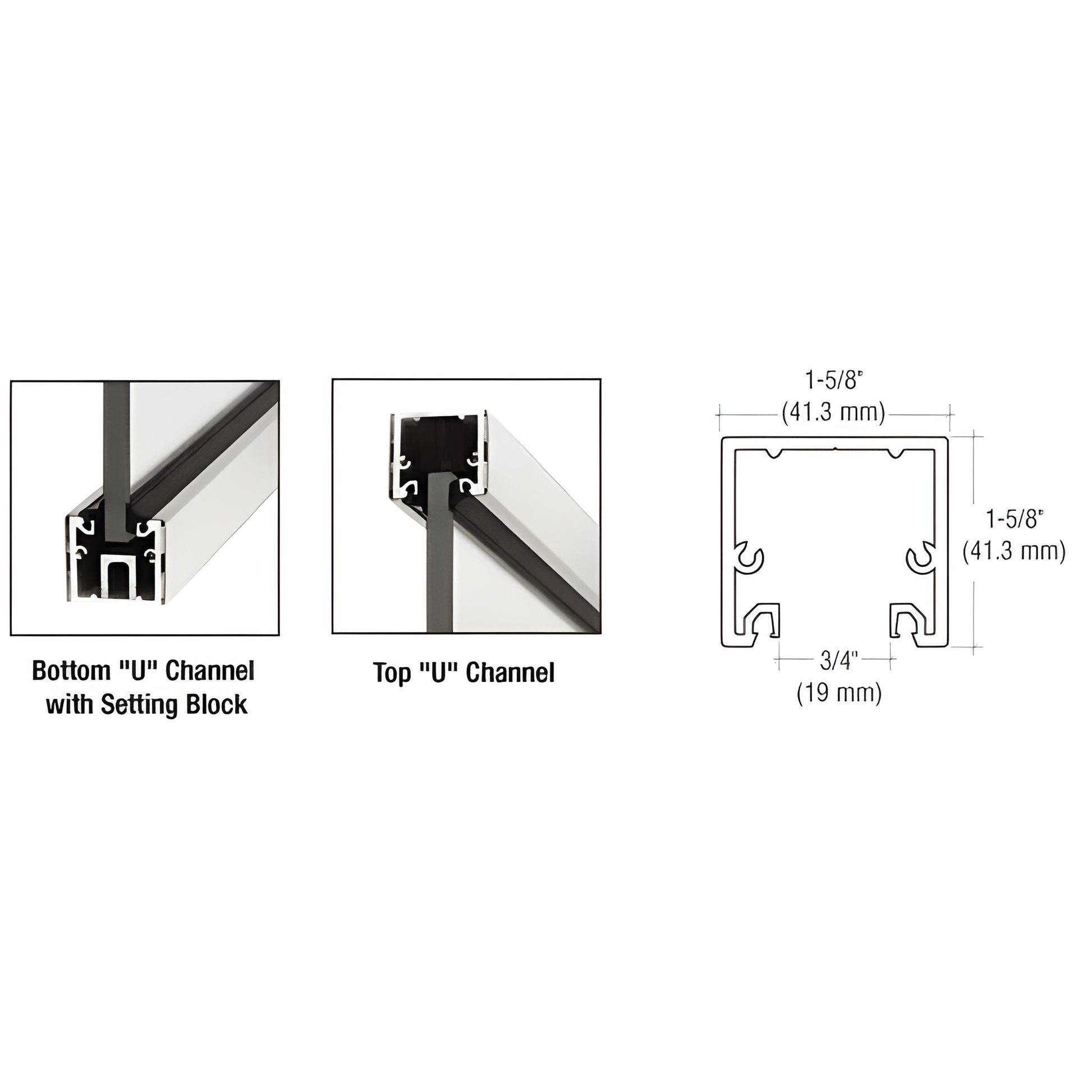

Finish/Color
Satin Anodized
Glazing Thickness
3/8 in. (10 mm)
Height
1-5/8 in. (41 mm)
Length
120 in. (3048 mm)
Width
1-5/8 in. (41 mm)
Overview
- Top-loading roll-in glazing gasket for 3/8" and 1/2" (10 and 12 mm) glass
- Aluminum U-channel for glass — ideal for ceiling or floor installations
- Designed for monolithic tempered glass
- 7 standard architectural finishes; custom finishes and powder painting available
- Custom lengths available to fit project requirements
CRL Regular U-Channel with Top Load Roll-In Glazing Gasket — engineered to secure 3/8" or 1/2" glass with a top-load roll-in glazing gasket. Use with CRL patch hardware, or with our header for overhead door closers with fixed sidelites and door rail systems. Can be surface- or recessed-mounted for flexible installation options.
SKU: UCSA3812SL
NOTE: For installations using 1/2" (12 mm) glass, the roll-in glazing gasket is included. For 3/8" (10 mm) glass, the gasket must be ordered separately.
IMPORTANT NOTE: Setting blocks are not included and must be purchased separately. Setting block part #: UCSB4.
Product Warning:
CRL does not recommend cutting this item due to the gauge of the metal. If cutting is required, additional cutting charges may apply.
Contact CRL Customer Service to request a sample, confirm finish availability, or place an order for SKU UCSA3812SL.
Specifications
CAD Drawings - dwg
