CRL 33 in Brushed Stainless Steel Two-Point Vertical Glass Post

• Stock or custom kits to stabilize fixed panels of glass that do not reach the ceiling
• Excellent alternative to traditional horizontal header systems for frameless shower enclosures
• Designed for monolithic tempered glass (glass fabrication required for tube adaptors/end caps)
• Available in four popular stock finishes; custom finishes and kit configurations available

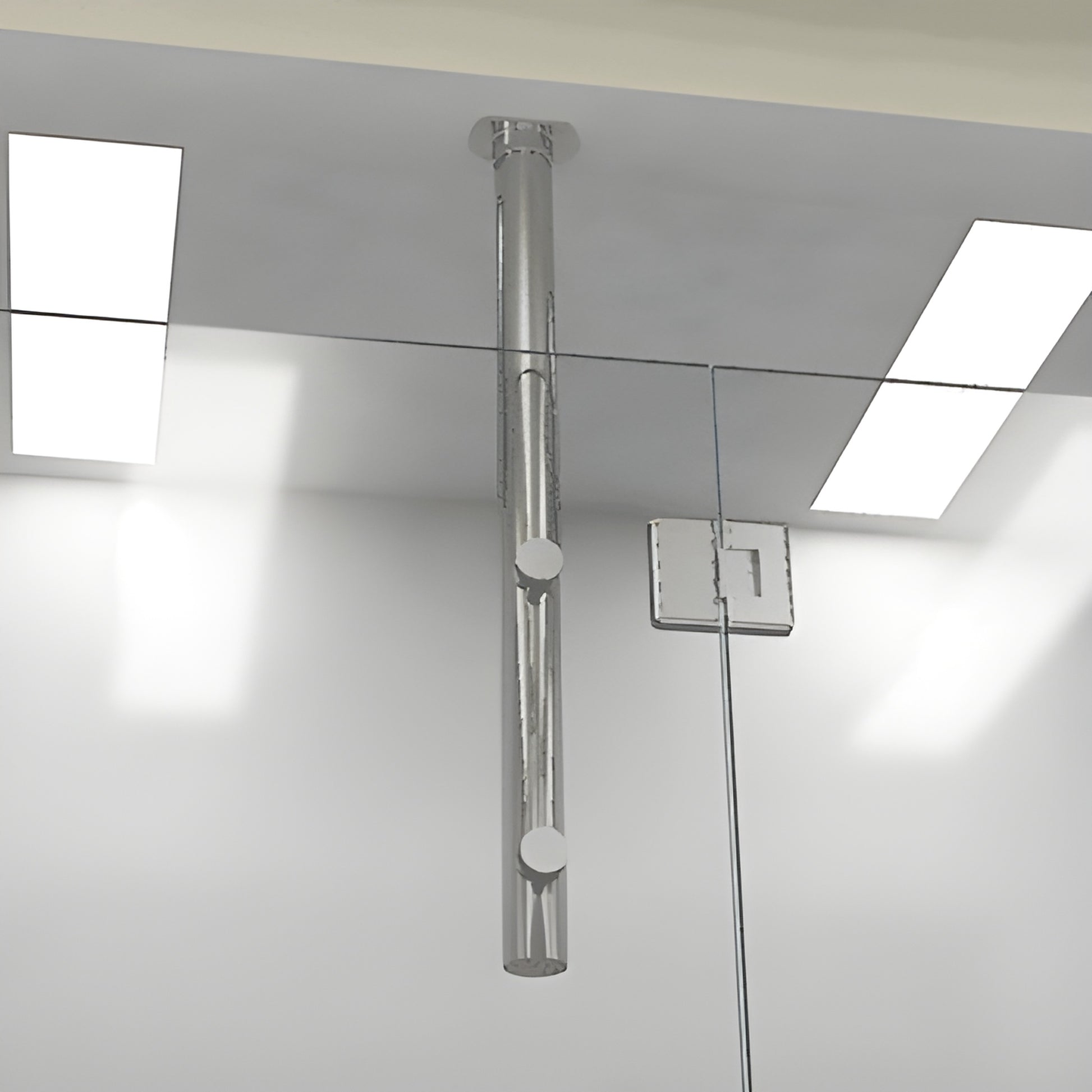

CRL offers two styles of our Frameless Vertical Post System (SKU: VPK33BN) — engineered as a vertical stabilizer for fixed shower glass panels that stop short of the ceiling. These vertical posts provide a clean, modern look and are an excellent alternative to full-width horizontal header systems, especially when using patterned glass with decorative top edges that cannot accept a crown header.

Two stock options are offered: the Floor-to-Ceiling Mount System and the Two-Point Ceiling Mount System. Stock systems are prepared for behind-the-glass installation. For custom kits or finishes, submit a drawing to our Frameless Shower Door Technical Department. Tube adaptors/end caps require 3/4" (19 mm) holes in the glass. Complete mounting details and installation instructions are available.

NOTE: Maximum bar length is 33" (838 mm).

STOCK KIT INCLUDES:

• 1 — 33" (838 mm) length of 2" (51 mm) diameter round tubing, two rivet nuts, and flat style end cap
• 2 — Tube adaptors with 1-1/2" (38 mm) diameter end caps (with threaded stud)
• 1 — Removable top flange with set screw

NOTE: There are size limitations when hinging a door off a panel fastened using the VPK33. Contact our Frameless Shower Department for details.

Choose VPK33BN for a modern frameless vertical post kit that stabilizes non-ceiling-height shower glass with minimal visual impact. Contact CRL to order or request custom finishes and drawings.
