CRL 33" Polished Stainless Steel Two-Point Vertical Railing Post

• Stock or custom kits to stabilize fixed glass panels that do not reach the ceiling
• Alternative to full-width horizontal header systems
• Designed for monolithic tempered glass
• Available in four popular stock finishes; custom finishes available
• Glass fabrication required for tube adaptors/end caps (3/4" / 19 mm hole)

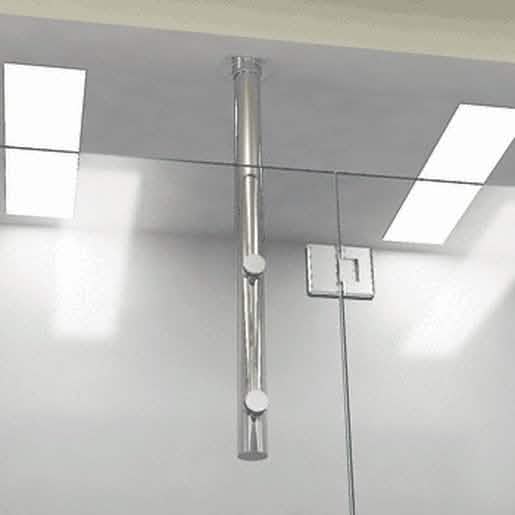

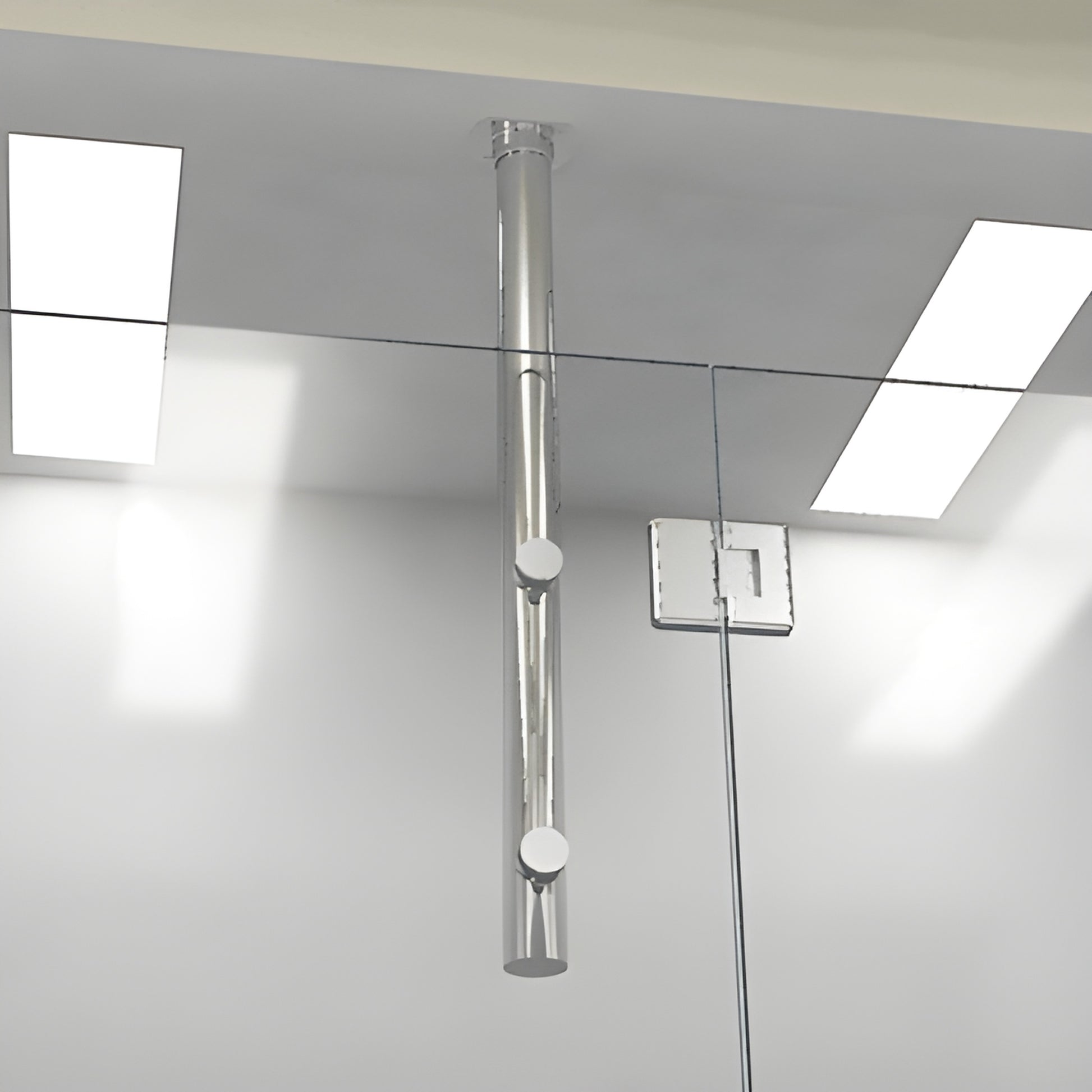

CRL's Frameless Vertical Post System (SKU: VPK33CH) stabilizes fixed shower or partition glass panels that stop short of the ceiling. It’s an excellent long-tail solution for frameless shower projects where customers prefer a vertical support over a traditional horizontal header—ideal when using patterned or decorative glass with rippled top edges that cannot accept a crown header.

Two stock styles are offered: the Floor-to-Ceiling Mount System and the Two-Point Ceiling Mount System. Stock kits are configured for behind-the-glass installation. Custom kits and finishes are available—submit drawings to the Frameless Shower Door Technical Department for quotes and lead times. Complete mounting details and installation instructions are available.

NOTE: Maximum bar length is 33" (838 mm). There are size limitations when hinging a door off a panel fastened with the VPK33CH; contact the Frameless Shower Department for guidance.

STOCK KIT INCLUDES:

• 1 — 33" (838 mm) length of 2" (51 mm) diameter round tubing with two rivet nuts and flat style end cap
• 2 — Tube adaptors with 1-1/2" (38 mm) diameter end caps (with threaded stud)
• 1 — Removable top flange with set screw

For custom finishes, glass fabrication requirements, or installation support for SKU VPK33CH, contact CRL's Frameless Shower Door Technical Department or order your Vertical Post Kit today.
