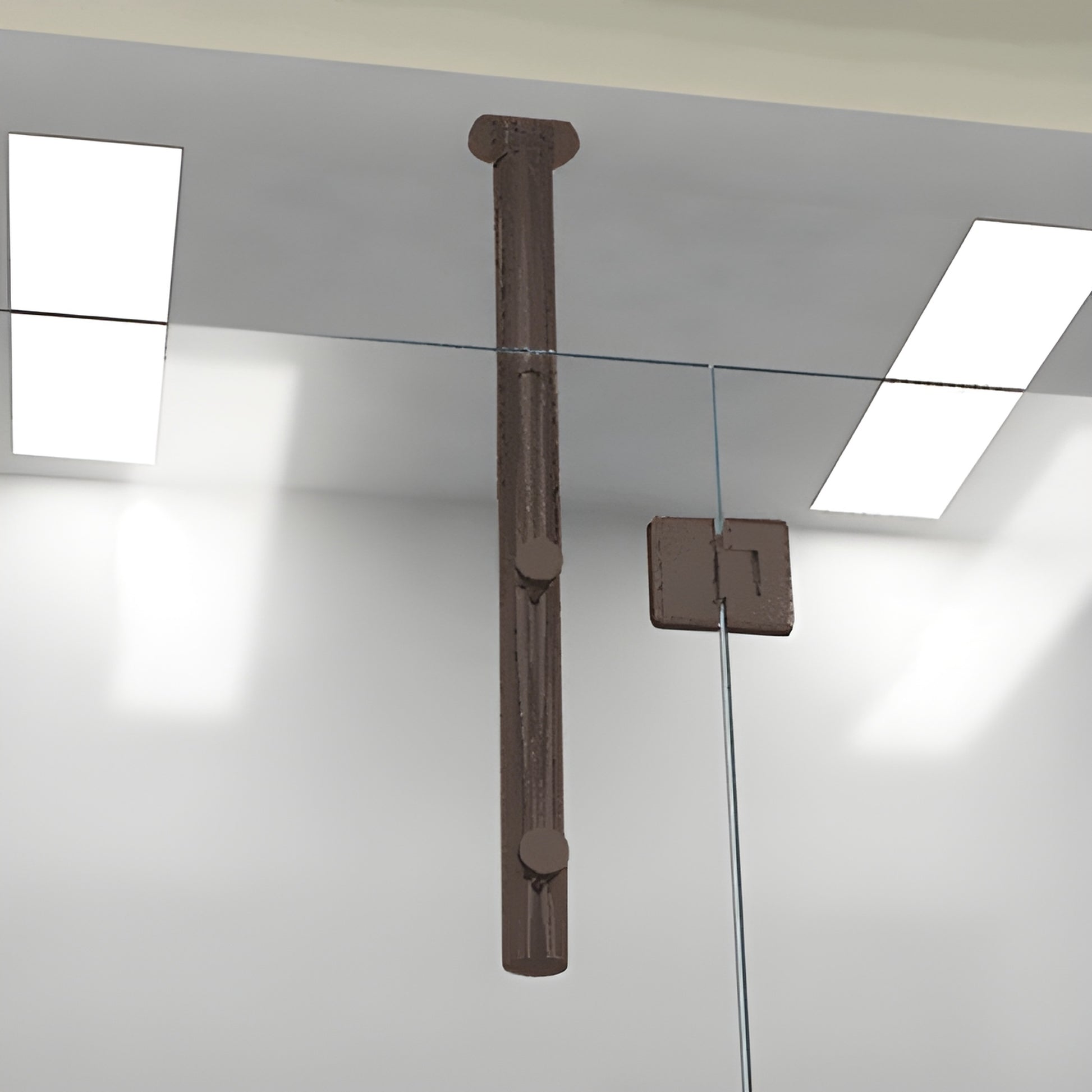

CRL Oil Rubbed Bronze 33" Two Point Vertical Post System

Product Details

• Stock or Custom Kits Allow User to Stabilize Fixed Panels of Glass Not Going to Ceiling
• Excellent Alternative to Traditional Horizontal Header Systems
• Use Monolithic Tempered Glass
• Four Popular Stock Finishes
• Glass Fabrication Required for Tube Adaptors/End Caps
• Custom Kits Available in Various Finishes
• 1 Each - 33" (838 mm) length of 2" (51 mm) diameter Round Tubing, two Rivet Nuts, and Flat Style End Cap
• 2 Each - Tube Adaptors with 1-1/2" (38 mm) diameter End Caps (with Threaded Stud)
• 1 Each – Removable Top Flange with Set Screw NOTE: There are size limitations when hinging a door off a panel fastened using the VPK33. Call our Frameless Shower Department for details.

CRL offers two styles of our Frameless Vertical Post System. They are used to stabilize fixed panels of glass not reaching the ceiling, and provide an excellent alternative to customers not wanting to use the more traditional horizontal Header Systems that run across the entire width of the enclosure. An especially attractive look is when patterned glass with decorative, rippled top edges is used, since a Header System cannot be applied as a crown to the glass.

Two stock systems are offered the Floor-to-Ceiling Mount System and the Two-Point Ceiling Mount System. Stock Systems are prepared for behind-the-glass installation. Custom Systems and finishes are available by simply submitting a drawing to our Frameless Shower Door Technical Department. Tube Adaptors/End Caps require 3/4" (19 mm) holes in glass. Complete mounting details and installation instructions are available.

STOCK KIT INCLUDES:

1 Each - 33" (838 mm) length of 2" (51 mm) diameter Round Tubing, two Rivet Nuts, and Flat Style End Cap

2 Each - Tube Adaptors with 1-1/2" (38 mm) diameter End Caps (with Threaded Stud)

1 Each – Removable Top Flange with Set Screw
