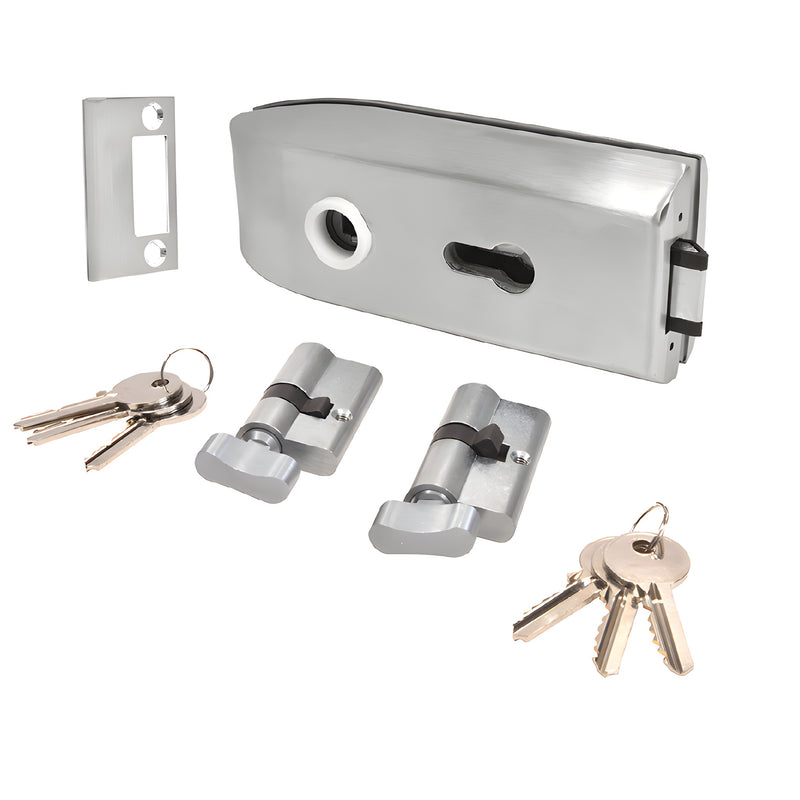

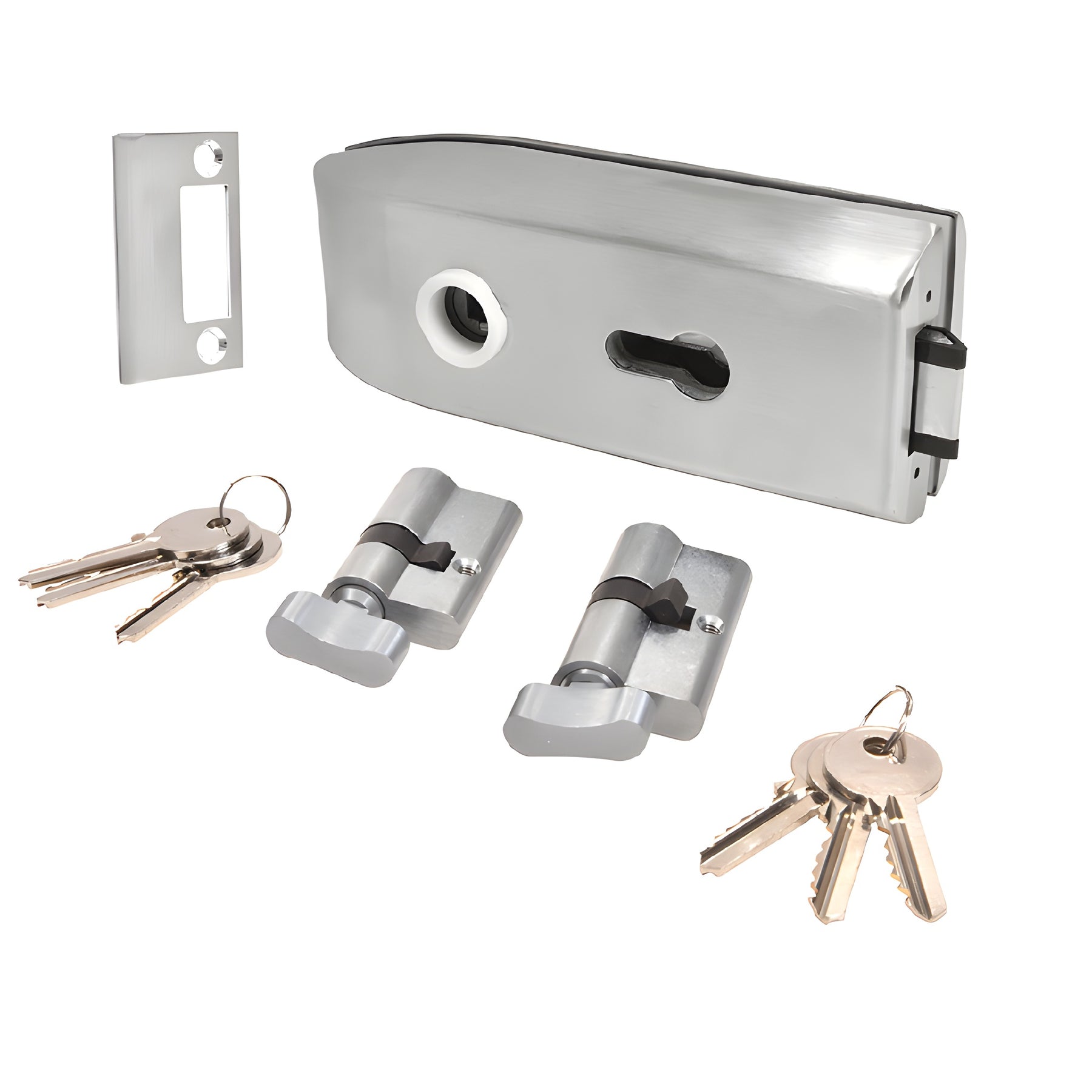

CRL Brushed Stainless Steel Glass Door Latch with Lock & Thumbturn
CRL Brushed Stainless Steel Glass Door Latch with Lock & Thumbturn
Regular price
$233.08 CAD
Regular price
Sale price
$233.08 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PTH311BS
Shipping Weight: 3.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glass Mounting Holes Diameter
1-7/8 in. (48 mm)
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Height
2-7/8 in. (73 mm)
Length
6-7/8 in. (175 mm)
Material
304 Grade Stainless Steel
Overview
- Works on single or double doors
- For 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
- Field reversible for left- or right-hand installation
- 304 grade stainless steel construction
- Lever handles ordered separately
- Use with monolithic tempered glass only
The CRL PTH311 Glass Mounted Latch (SKU: PTH311BS) is a glass door latch assembled for use with the EC4 keyed cylinder on outswing doors and on inswing doors when a PTH314 Glass Mounted Latch Keeper is not required. For inswing doors using a PTH314 keeper, the EC3 extended-length keyed cylinder must be used. This durable 304 stainless steel latch is designed for commercial glass door security and polished finish longevity.
NOTE: On double-door installations, the door with the keeper should be secured at the bottom with a separate lock to ensure proper latching and security.
GLASS FABRICATION REQUIRED:
Two 1-7/8" (48 mm) holes in the glass
COMES WITH:
EC3 and EC4 series cylinder/thumbturn with 3 keys, template, and installation instructions.
Product Warning:
Lever handles are ordered separately and are required for operation.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For full details, see the Stainless Steel Disclaimer in the Technical References section.
Buy the CRL PTH311BS glass-mounted latch for secure, commercial-grade glass door hardware. Contact CRL or your distributor to order or request technical drawings.
