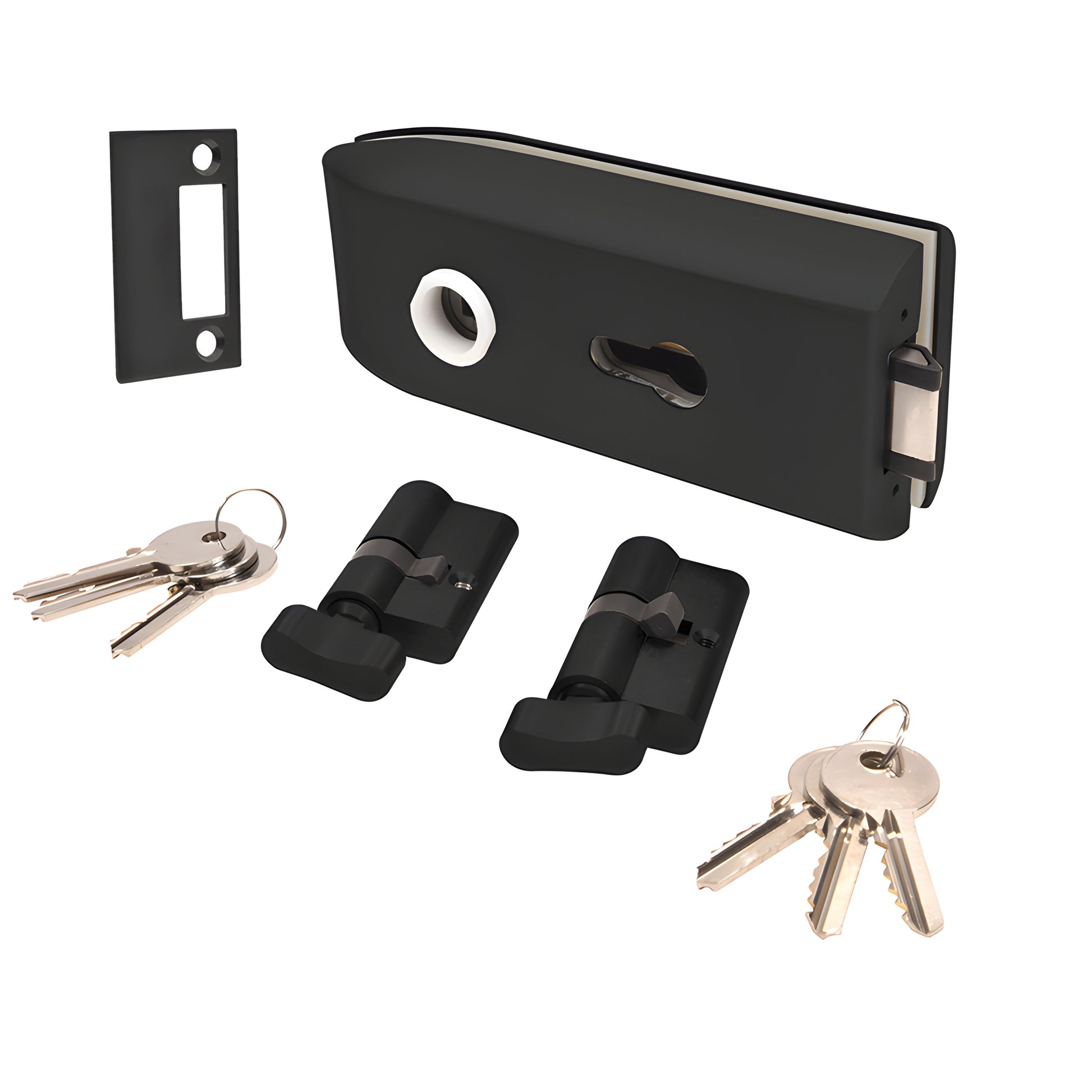

CRL Matte Black Glass Door Latch with Lock & Thumbturn - Privacy Lock

• Works on single or double glass doors
• Fits 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
• Field reversible for left or right hand installations
• 304 grade stainless steel construction for corrosion resistance
• Lever handles ordered separately
• Use with monolithic tempered glass only

CRL PTH311 Glass-Mounted Latch (SKU: PTH311MBL) is a heavy-duty glass door latch designed for commercial and residential tempered glass doors. Supplied assembled for use with the EC4 keyed cylinder on outswing doors and on inswing doors when a PTH314 latch keeper is not required. For inswing doors using a PTH314 keeper, use the EC3 extended-length keyed cylinder.

Key differentiators:

• Glass-mounted design—no door drilling beyond required holes
• Durable 304 stainless steel—ideal for high-traffic, coastal, or humid environments
• Includes EC3/EC4 series cylinder and thumbturn with 3 keys, plus template and instructions

Glass fabrication required:
Two 1-7/8" (48 mm) holes

Note for double door applications:
When used on double doors, the door with the keeper should be secured at the bottom with an additional lock.

Product warning:
Lever handles are sold separately.

Order the PTH311MBL glass-mounted latch for secure, stainless-steel tempered glass door hardware—add to cart or contact CRL for assistance.
