CRL Laguna Brushed Stainless Steel Top Sliding Door Track
CRL Laguna Brushed Stainless Steel Top Sliding Door Track
Regular price
$545.07 CAD
Regular price
Sale price
$545.07 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LS240BS
Shipping Weight: 22.75 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 22.75 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Track Diameter
1-1/4 in. (32 mm)
Track Length
240 in. (6096 mm)
Overview
- Supports sliding door systems
- Cat. No. LS104CAP end caps — ordered separately

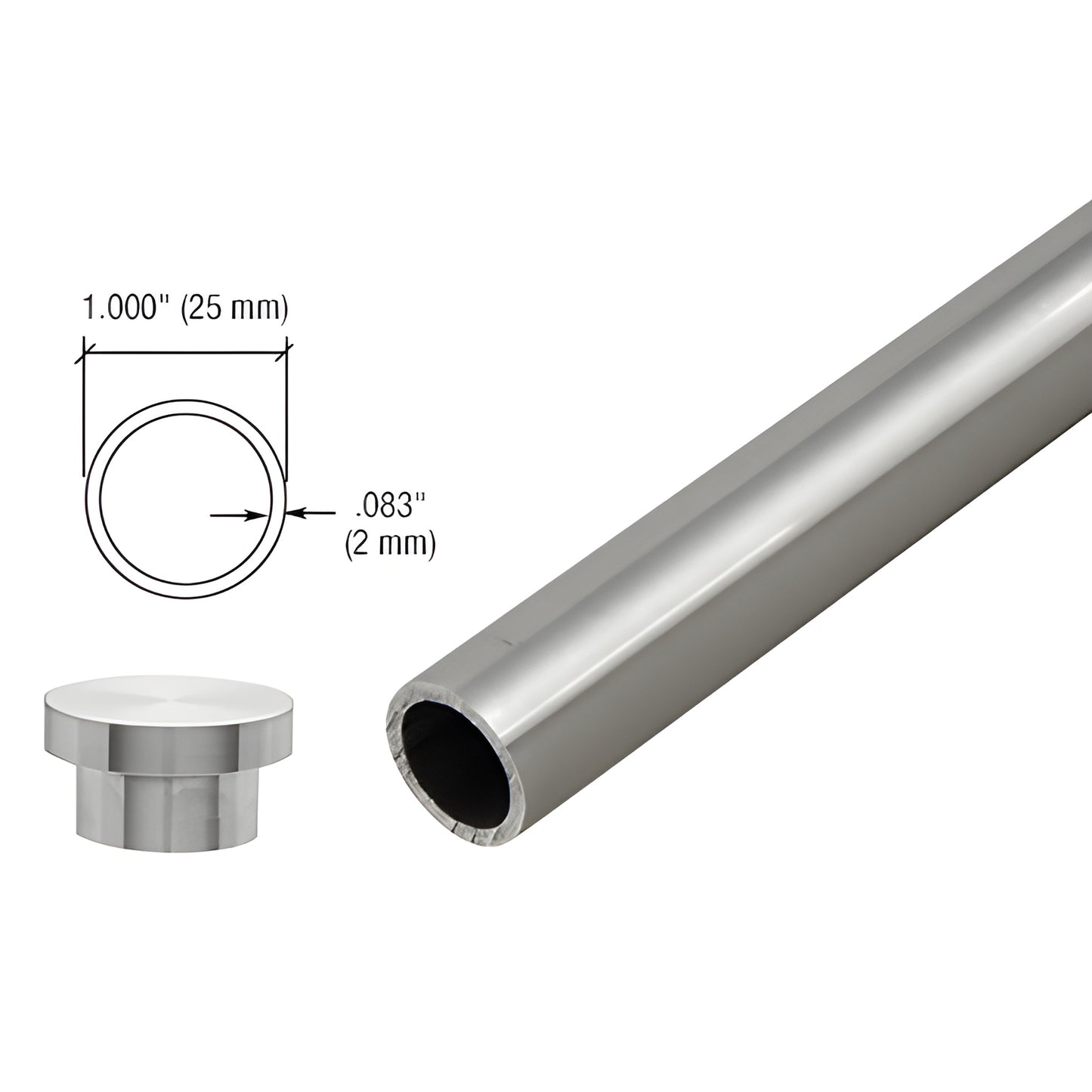

This CRL Top Sliding Tube (SKU: LS240BS) is a stainless-steel top track designed to support glass or wall-mounted sliding doors when installed with the appropriate clamps. Use Cat. No. LS302BS Top Sliding Tube Wall Mount Clamps for wall attachment or Cat. No. LS303BS Top Sliding Tube Glass Mount Clamp Fittings for glass panels. Ideal long‑run top sliding tube for heavy glass door systems and commercial interior sliding doors.
SYSTEM LIMITATIONS:
Recommended system limitations for safe operation:
Minimum panel width: 37-13/16" (960 mm)
Maximum panel width: 53-9/16" (1.36 m)
Maximum panel weight: 220 lbs (100 kg)
Panel height should not exceed 2.5× panel width.
Maximum available top track length: 240" (6096 mm).
If your application exceeds these limits, please contact our Technical Sales Department for alternatives and custom recommendations.
Product Warning:
STRUCTURAL DISCLAIMER — Customers must consult a structural engineer to verify suitability for site-specific loads and conditions. Installers must be qualified and follow local, state, and federal codes, safety factors, and correct fixing materials and procedures.
These fittings are not for use with laminated glass.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care instructions.
