CRL Brushed Stainless Type 5 SPS – 4" Top / 6" Bottom Square Rails
Item# S534S5BS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
- For 3/4" (19 mm) tempered glass sliding and pivot doors
- Available in several architectural finishes

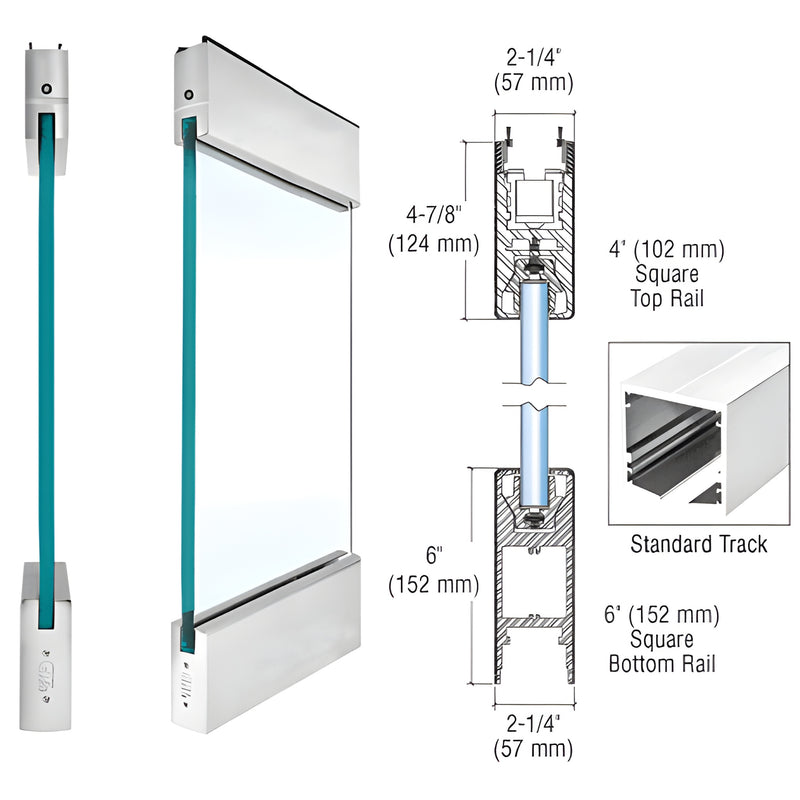

CRL 4" (102 mm) Square Door Rail on the top and 6" (152 mm) Square Door Rail on the bottom for use with 3/4" (19 mm) tempered glass. Choose from five standard parking configurations or specify custom parking layouts to suit your project. Supports all-sliding panels or combinations of sliding and pivoting panels for flexible commercial and residential applications.
Product Warning:
STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm product suitability for site conditions and intended use. Installers must be qualified and follow local, state, and federal regulations, safety requirements, and appropriate fixing methods and materials.
NOTE: Track ships standard in white powder coat unless a different finish is specified.
Most shipping weights are approximate and have not been verified. If you require exact weight to calculate shipping costs, contact CRL Customer Service before placing your order. Product images represent the actual item or a close match; colors may vary by monitor and video card settings.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
CAD Drawings - pdf
