CRL Chrome Plated Brass 5-5/16" No-Draft Speak-Thru
Item# 549
Shipping Weight: 0.8
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.8
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
- Diameter5-5/16 in. (134.9 mm)
- Finish/Color:Polished Chrome
- Glazing Thickness1/4 in. To 1/2 in. (6 mm To 12 mm)
- MaterialAluminum
- Required Hole Size3-1/2 in. (88.9 mm)
- Easy-to-Install
- Eliminates Drafts
- Theft-Proof Locking Device

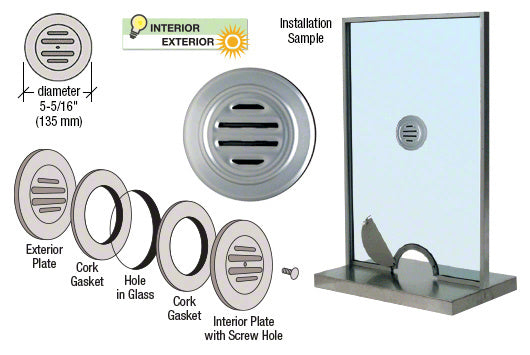

Our CRL No-Draft Speak-Thrus are designed to allow audible transmission of voice requests at ticket windows, box offices, and more. They prevent tampering from the outside, and stop drafts to the interior. The 549 Series is made of brass, the 834 Series is made of aluminum. Each unit is individually boxed with gaskets and mounting screws for installation on glass from 1/4" (6 mm) to 1/2" (12 mm) thick. For glass up to 3-3/4" (95 mm) thick you can use the optional Cat. No. 8324 4" (102 mm) screws. No-Draft Speak-Thrus require a minimum hole diameter of 2-1/4" (57 mm), and will cover holes up to 4-1/4" (108 mm). Recommended hole diameter is 3-1/2" (89 mm).
SPECIFICATIONS:
Material: Brass
Finishes: Chrome Plating
Instructions Included
Glass Fabrication Required: Recommended 3-1/2" (89 mm) Diameter Hole
