CRL Chrome Slot-Mount Standoff for 1/4 in Glass Panels
Item# SM14CH
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Diameter
1-1/4 in. (31.8 mm)
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. (6 mm)
Height
1-5/8 in. (41.3 mm)
Material
Brass
- Fits 1/4" (6 mm) thick material
- No drilling required for installation
- Available in several architectural finishes
- Use with monolithic tempered glass

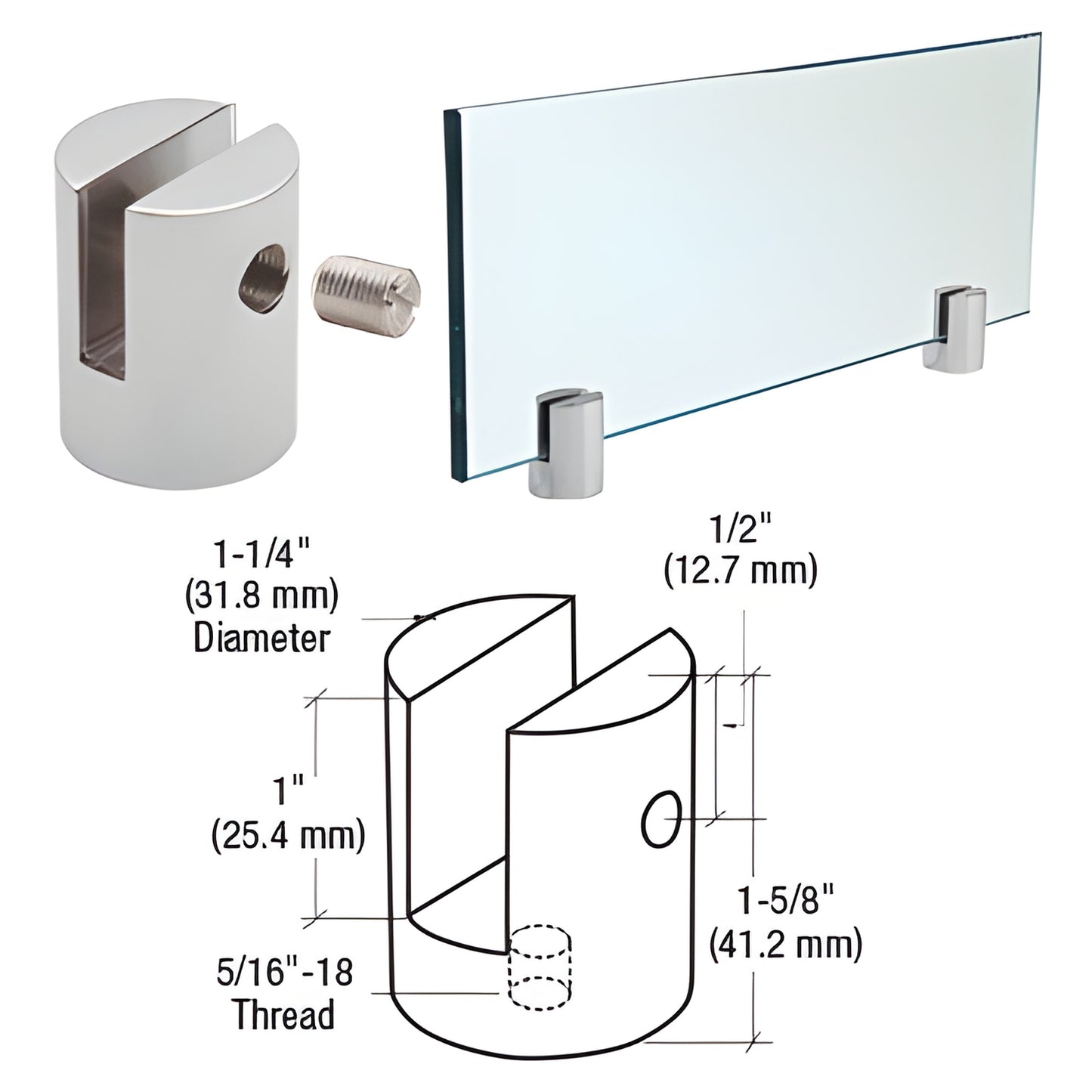

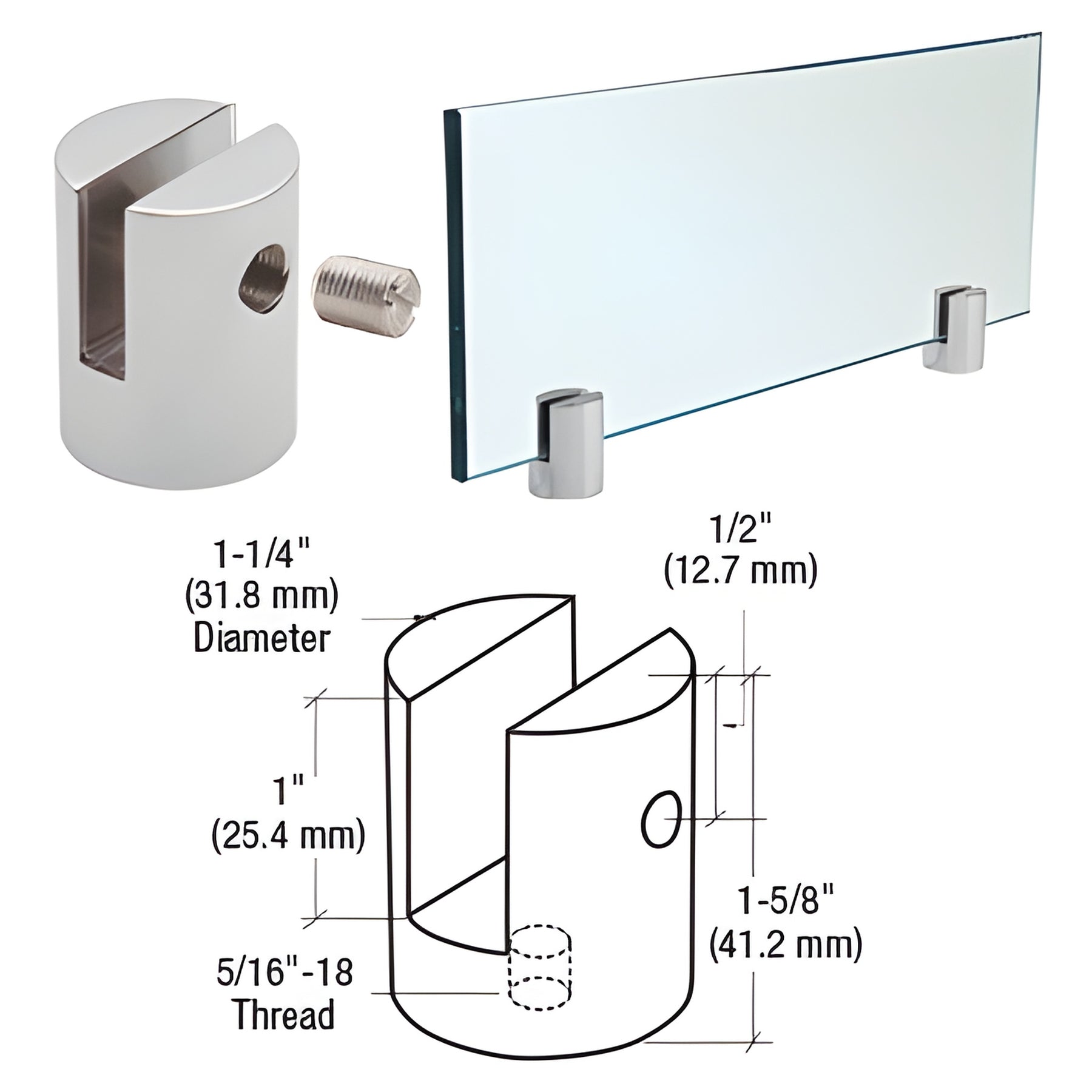

CRL Slot Mount Standoffs (SKU: SM14CH) are designed for vertical or horizontal mounting to install partition panels, glass shelving, or signage without drilling holes in the panel. The nylon-tip set screws secure panels without damaging glass or other finished materials. This 1-1/4" (32 mm) diameter slot mount standoff accommodates 1/4" (6 mm) material. Maximum recommended shelf projection from the wall is 5" (127 mm) when the standoff is anchored to a wall stud.
Slot mount standoffs can be used independently or with Standard Standoff Bases. Available slot widths: 1/4" (6 mm), 3/8" (10 mm), and 1/2" (12.7 mm). These standoffs are ideal for glass shelf supports, frameless glass partitions, and architectural signage applications where a clean, drilled-hole-free appearance and material protection are priorities.
Slot Mount Standoff Assemblies Consist of:
1 Each Standoff
1 Each Nylon Tip Set Screw
1 Each Clear Gasket
Product Warning:
Due to the diversity of applications, weight limitations for standoff systems depend on wall or substrate anchoring and material strengths.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation. Colors can vary depending on your monitor settings.
Contact CRL to order SKU SM14CH or request samples.
