Product Details
- Fits 1/4" (6 mm) Thick Material
- No Drilling Required for Installation
- Available in Several Architectural Finishes
- Use Monolithic Tempered Glass

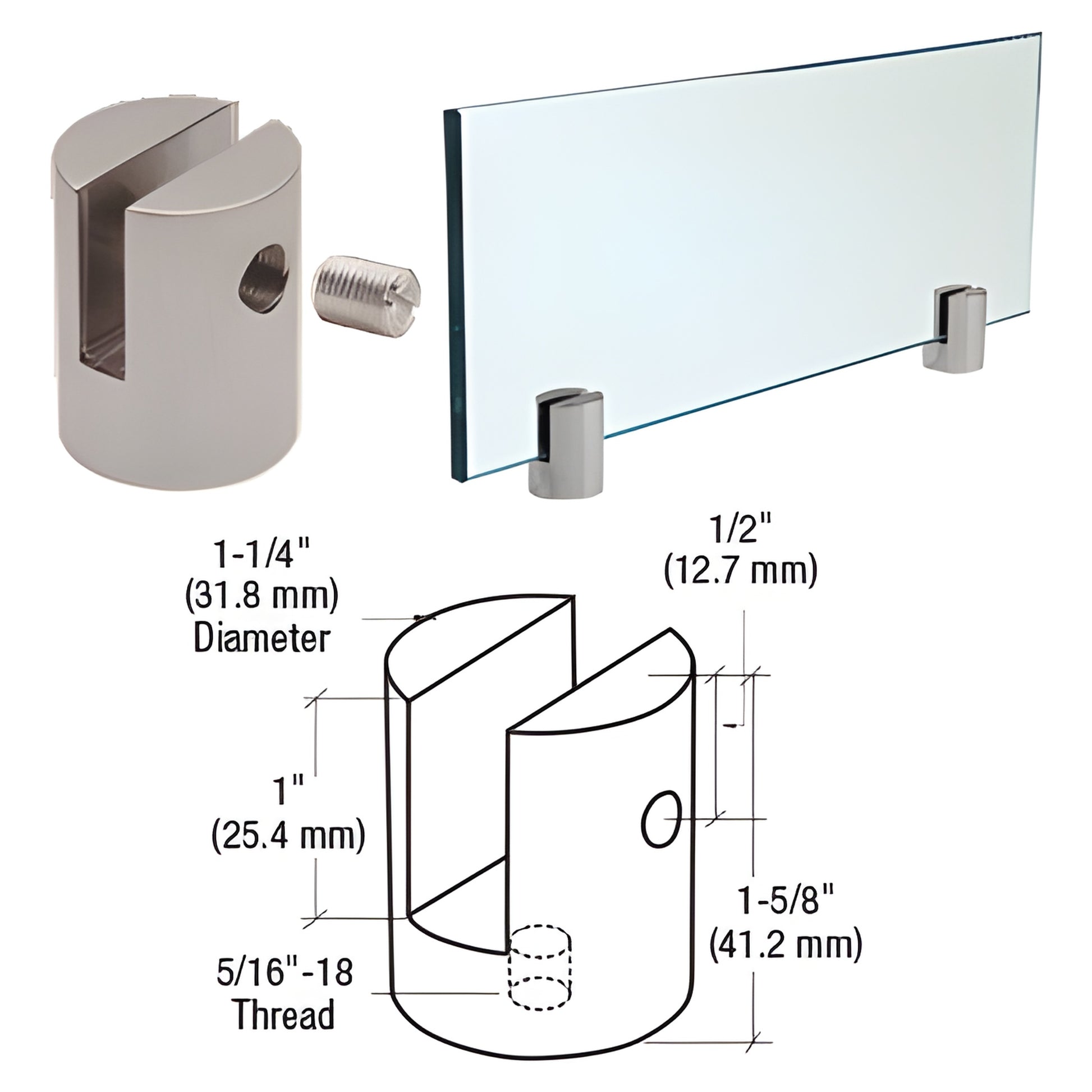

CRL Slot Mount Standoffs are designed to be mounted either vertically or horizontally, and can be used for installing partition panels, shelving or signage without drilling holes in the material. The nylon tip set screws hold panels firmly in place without damaging panel material or glass. This 1-1/4" (32 mm) diameter slot mount standoff is available to hold 1/4" (6 mm) thick material. Maximum recommended shelf projection from the wall is 5" (127 mm) when standoff is anchored to the wall stud.
Slot Mount Standoff's can be used either independently or with Standard Standoff Bases, and they are available in slot widths of 1/4" (6 mm), 3/8" (10 mm) and 1/2" (12.7 mm).
Slot Mount Standoff Assemblies Consist of:
1 Each Standoff
1 Each Nylon Tip Set Screw
1 Each Clear Gasket
Product Warning:
Due to the diversity of applications, weight limitations for Standoff Systems are dependent upon wall or substrate anchoring and material strengths.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
