CRL Aluminum Smoke Baffle Base Shoe, Brushed Stainless, 1/2in Glass

• Fabricates an almost invisible 1/2" (12 mm) tempered glass smoke curtain
• Glass mechanically secured with fasteners and nylon grommets on 12" (305 mm) centers
• Custom drilling, mitering, and cutting services available

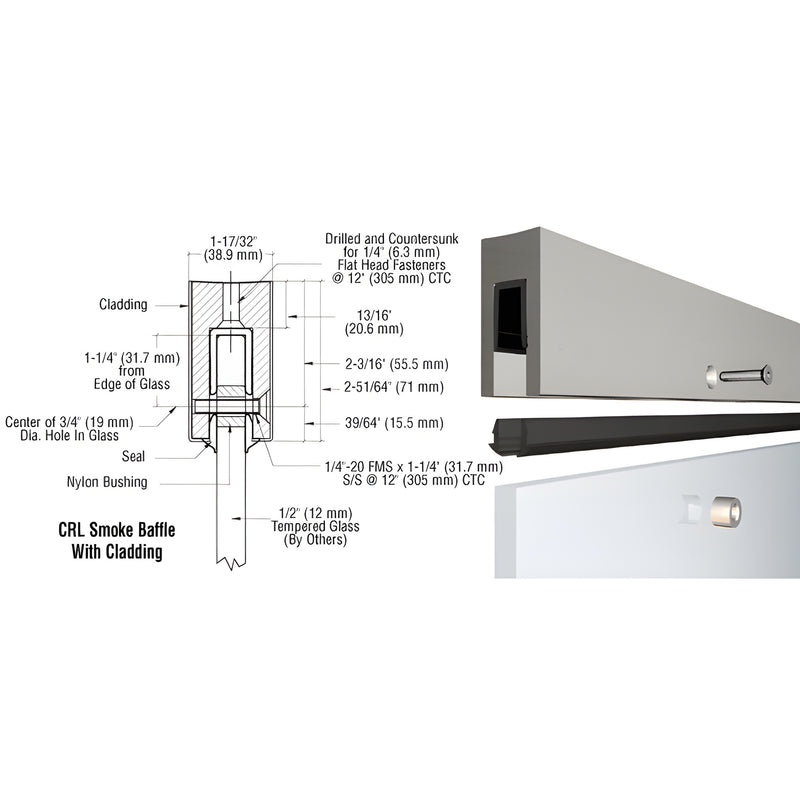

CRL Smoke Baffle Aluminum Base Shoe provides a low-profile, extruded aluminum base for hanging 1/2" (12 mm) tempered glass smoke curtains. Designed for applications that require sectioning large open spaces into smaller monitored areas to retain smoke and reduce unnecessary sprinkler activations, the base shoe attaches to the ceiling so glass hangs straight down. Glass is secured with screws through nylon grommets that fit 3/4" (19 mm) holes drilled on 12" (305 mm) centers. A glass fabrication template is included. Available cladding in five architectural finishes enhances aesthetic integration with interiors.

Key differentiators:

• Low-visibility 1/2" tempered glass smoke curtain solution — ideal for retail and large office spaces
• Mechanical fastening with grommets for secure, code-friendly installation
• Included glass fabrication template and custom glass services to simplify installation

Product Warning:

Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze Finish are inspected at our facilities prior to packaging and shipping. Within two days of receipt of these products you are advised to open the package, remove all protective wrap, and inspect the product thoroughly. You must report any damage or irregularity of the finish to CRL immediately. CRL will not be held liable for damages reported at a later date. Check your local building codes for ceiling area square footage and required depth specifications for glass curtains.
