CRL Aluminum Smoke Baffle Base Shoe - Dark Bronze Clad for 1/2" Glass

• Fabricate almost-invisible 1/2" (12 mm) tempered glass smoke curtains with SKU B5BDUC

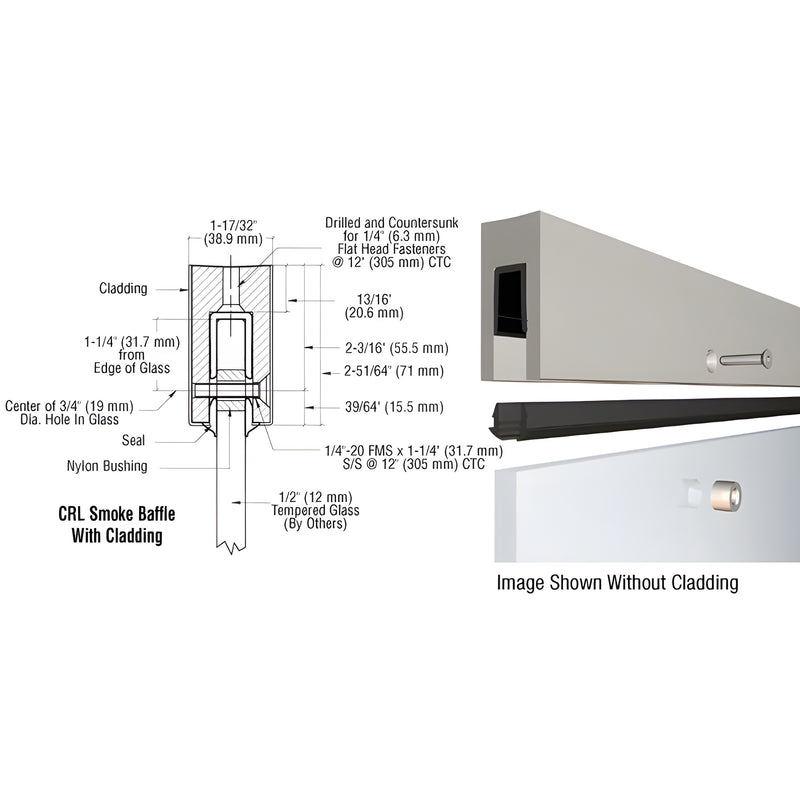

• Glass mechanically secured with screws through nylon grommets into 3/4" (19 mm) drilled holes on 12" (305 mm) centers
• Custom glass drilling, mitering, and cutting services available

CRL Smoke Baffle Aluminum Base Shoe (B5BDUC) — an extruded aluminum base shoe engineered to hang 1/2" (12 mm) tempered glass vertically to form near-invisible smoke curtains for sectioning large spaces. Ideal for applications where dividing open offices or retail areas with a 1/2" tempered glass smoke baffle is preferred to control smoke movement and reduce unnecessary sprinkler activation. The system includes a glass fabrication template and is available in five architectural cladding finishes. Glass is secured using fasteners through nylon grommets for reliable mechanical retention.

Product Warning:
Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze Finish are inspected at our facilities prior to packaging and shipping. Within two days of receipt of these products you are advised to open the package, remove all of the protective wrap from the product, then inspect the product thoroughly. You must report any damage or irregularity of the finish to CRL immediately. Please be advised that CRL will not be held liable for damages reported at a later date. Check your local building codes for regulations pertaining to ceiling area square footage and required depth specifications for glass curtains.
