CRL Smoke Baffle Base Shoe, Polished Brass Cladding for 1/2 in Glass
CRL Smoke Baffle Base Shoe, Polished Brass Cladding for 1/2 in Glass
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# B5BPBC
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Drilling Center To Center
Specify
Finish/Color
Polished Brass
Glass Included
No
Glazing Thickness
1/2 in. (13 mm)
Height
2-51/64 in. (71 mm)
Length
Specify
Material
Aluminum
Width
1-17/32 in. (39 mm)
Overview
- For fabricating almost invisible smoke curtains with 1/2" (12 mm) tempered glass
- Glass mechanically secured with screws through nylon grommets into 3/4" (19 mm) holes on 12" (305 mm) centers
- Custom drilling, mitering, and cutting services available for smoke curtain glass

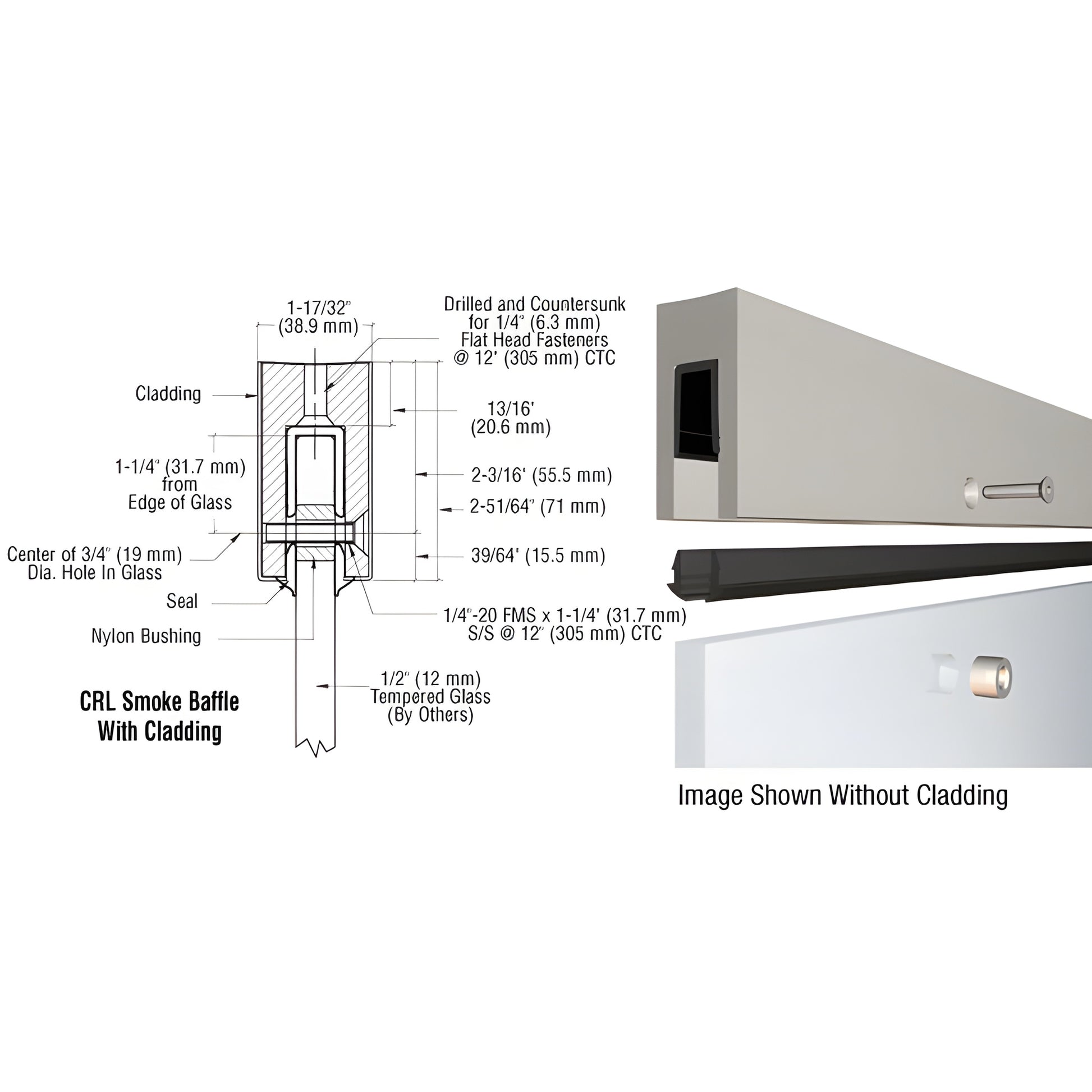

CRL Smoke Baffle Aluminum Base Shoe (SKU: B5BPBC) is an extruded aluminum base shoe engineered to create an almost invisible 1/2" (12 mm) tempered glass smoke curtain. Designed for code-driven applications in large offices and retail areas, this smoke baffle sections ceiling areas to retain smoke within a specified square footage and help prevent unnecessary sprinkler activation. The base shoe attaches to the ceiling structure so the glass hangs straight down; a glass fabrication template is included. Cladding available in five architectural finishes.
Product Warning:
Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze finish are inspected prior to shipping. Within two days of receipt, open the package, remove protective wrap, and inspect thoroughly. Report any finish damage or irregularity to CRL immediately; CRL will not be held liable for damages reported later. Check local building codes for ceiling area square footage and required depth specifications for glass curtains.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of packaging or storage. See the Brass Finish Disclaimer in the Technical References section for details.
Need help specifying a smoke baffle aluminum base shoe for 1/2" tempered glass? Contact CRL Customer Service to request custom drilling, cutting, or a quote.
