CRL Aluminum Smoke Baffle Base Shoe for 1/2" Glass Polished Stainless

• For fabricating almost invisible smoke curtains from 1/2" (12 mm) tempered glass
• Glass is mechanically secured with fasteners and nylon grommets
• Custom drilling, mitering, and cutting services available

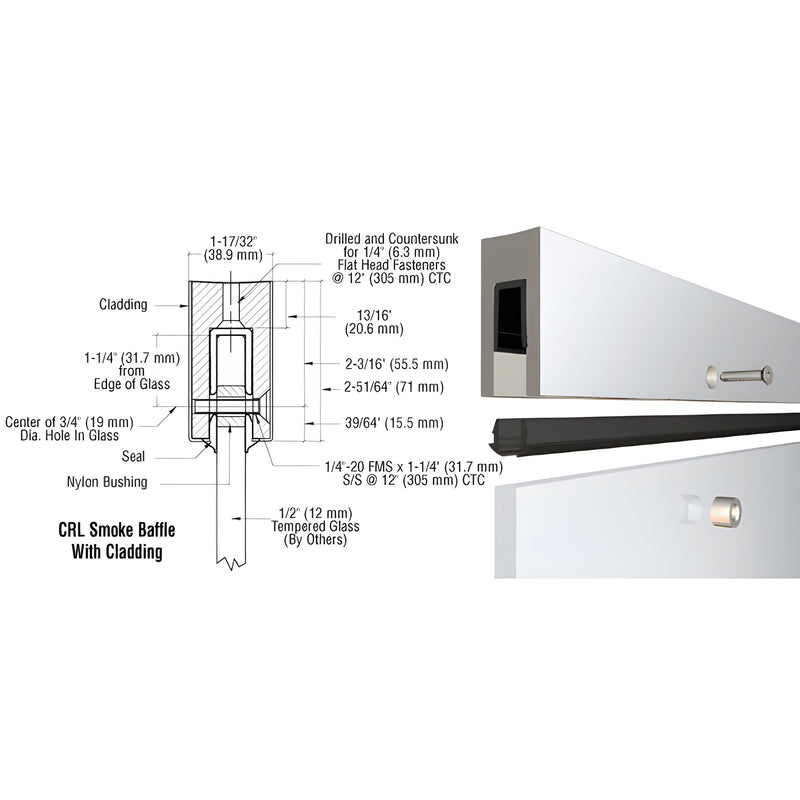

CRL Smoke Baffle Aluminum Base Shoe is an extruded aluminum base shoe engineered for 1/2" (12 mm) tempered glass smoke curtains and baffles. Ideal for office, retail, and open-plan spaces that must be sectioned for smoke detection, this base shoe mounts to the ceiling so glass panels hang straight down, forming an almost invisible smoke curtain. Glass is secured with screws through nylon grommets into 3/4" (19 mm) holes drilled on 12" (305 mm) centers. A glass fabrication template is included. Cladding is available in five architectural finishes for design flexibility.

SKU: B5BPSC

Why choose this tempered glass smoke curtain base shoe?

• Long-tail keyword fit: tempered glass smoke curtain base shoe for code-compliant smoke containment
• Mechanical fastening with nylon grommets reduces visible hardware for a minimalist look
• Available custom drilling and cutting to match your smoke baffle specifications

Product Warning:
Products manufactured by C.R. Laurence Co., Inc. (CRL) with an Oil Rubbed Bronze Finish are inspected at our facilities prior to packaging and shipping. Within two days of receipt you must open the package, remove all protective wrap, and inspect the product thoroughly. Report any damage or finish irregularity to CRL immediately; CRL is not liable for damage reported after this period. Check local building codes for ceiling area square footage and required depth specifications for glass curtains.

Stainless Steel Advisory:

Need help specifying or ordering your smoke baffle system? Contact CRL Customer Service to get a quote and fabrication support.
