CRL Manual Flush Mount Bi-Fold Service Window - Custom Sizes & Colors
CRL Manual Flush Mount Bi-Fold Service Window - Custom Sizes & Colors
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BFW1C
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom
Glazing Thickness
1/4 in. (6 mm)
Material
Aluminum, Stainless Steel
Size
Specify
Window Style
Flush Mount Manual
Overview
- Select from Manual or Semi-Automatic Operation — ideal for commercial or retail service counters
- Available in stock or custom sizes and finishes (special-order custom paint colors)
- Drawings and specifications available; request project submittals for installation

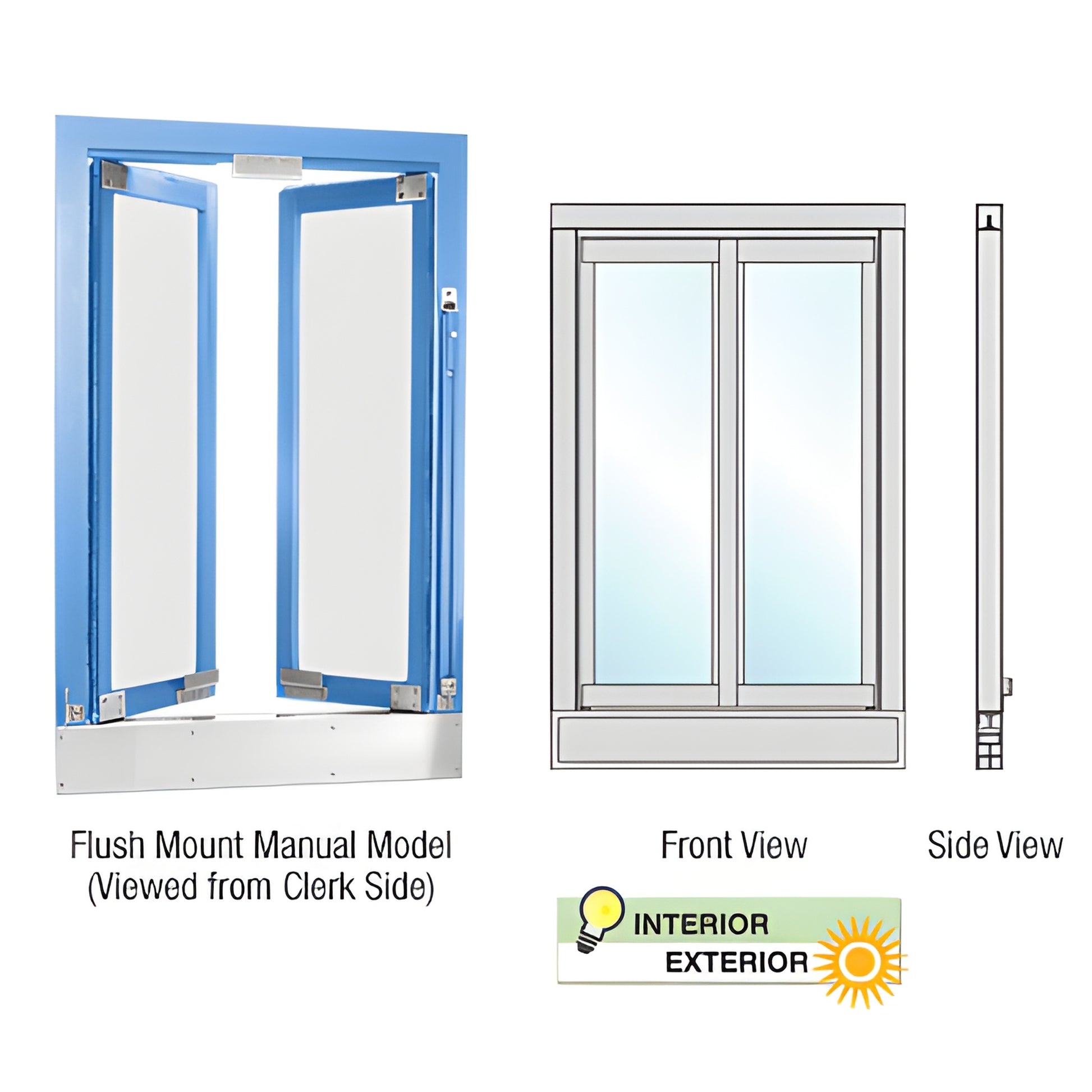

CRL Bi-Fold Service Windows (SKU: BFW1C) are engineered for commercial and retail service counters where a high-quality bi-folding window is required. Key differentiators: simultaneous two-panel outward opening for quick customer access, integrated burglar bar for added security, and optional projected or flush mount models for flexible installation.
MANUAL - Both panels move simultaneously when either panel is manually operated; can be ordered with header pivot mechanism for a clear counter by others.
SEMI-AUTOMATIC - Hip-activated slide bar opens the window; step away and panels automatically close for hands-free operation.
SPECIFICATIONS:
Materials: Aluminum extrusions; pile weatherstrip; glazing vinyl; stainless steel shelf or stainless steel sill
Glazing: 1/4" (6 mm) clear tempered glass
Stock Finishes: Satin anodized or bronze anodized
Bi-Fold Configuration: Manual (Semi-Automatic option available)
To Determine Rough Opening: Add 1/2" (12 mm) to width, 1/4" (6 mm) to height
For drawings, custom sizing, or to place an order for the BFW1C bi-fold service window, contact CRL Technical Sales or Customer Service today.
Specifications
CAD Drawings - dwg
