CRL Custom Powder-Coated Aluminum Narrow Inset Exterior Vision Window

• Narrow inset frame vision window — ideal for installation above built-in exchange drawers or transaction drawers in walk-up, teller, and customer-service openings
• Drawings and specifications available online; SKU: N1VEP

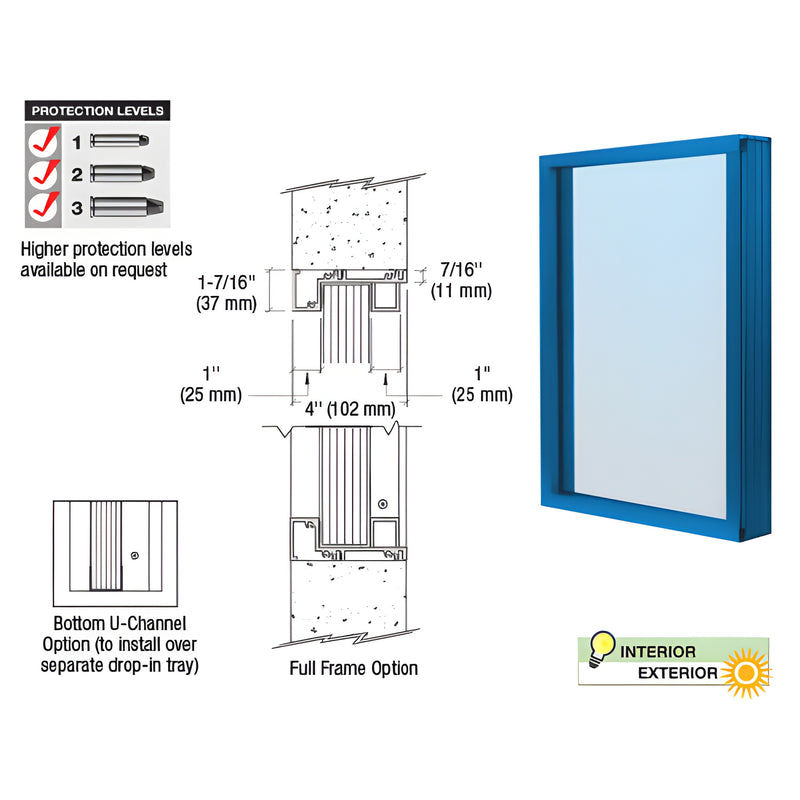

CRL Narrow Inset Frame Vision Windows are engineered for wall openings 4" (102 mm) or thicker. The four-sided uniform aluminum frame seals glazing into the profile with included glazing tape for a weathertight installation. Common applications: sidelites in multi-lite exchange windows, headers above built-in transaction drawers or package receivers, and walk-up service openings. Optional U-Channel under glazing allows access to drop-in deal trays. Installer affixes the frame to the wall opening, then permanently seals glazing material into the frame.

SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-3/16" (30 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1-3/8" (35 mm) Level 2 Acrylic with Abrasion Resistant Coating; 1" (25 mm) Level 2 Lexgard®; 1-11/16" (43 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL powder coat colors or custom KYNAR® paint colors.
Instructions Included

Choose CRL Narrow Inset Frame Vision Windows for durable, weathertight installations in teller, service, and walk-up applications — contact CRL or your distributor to order.
