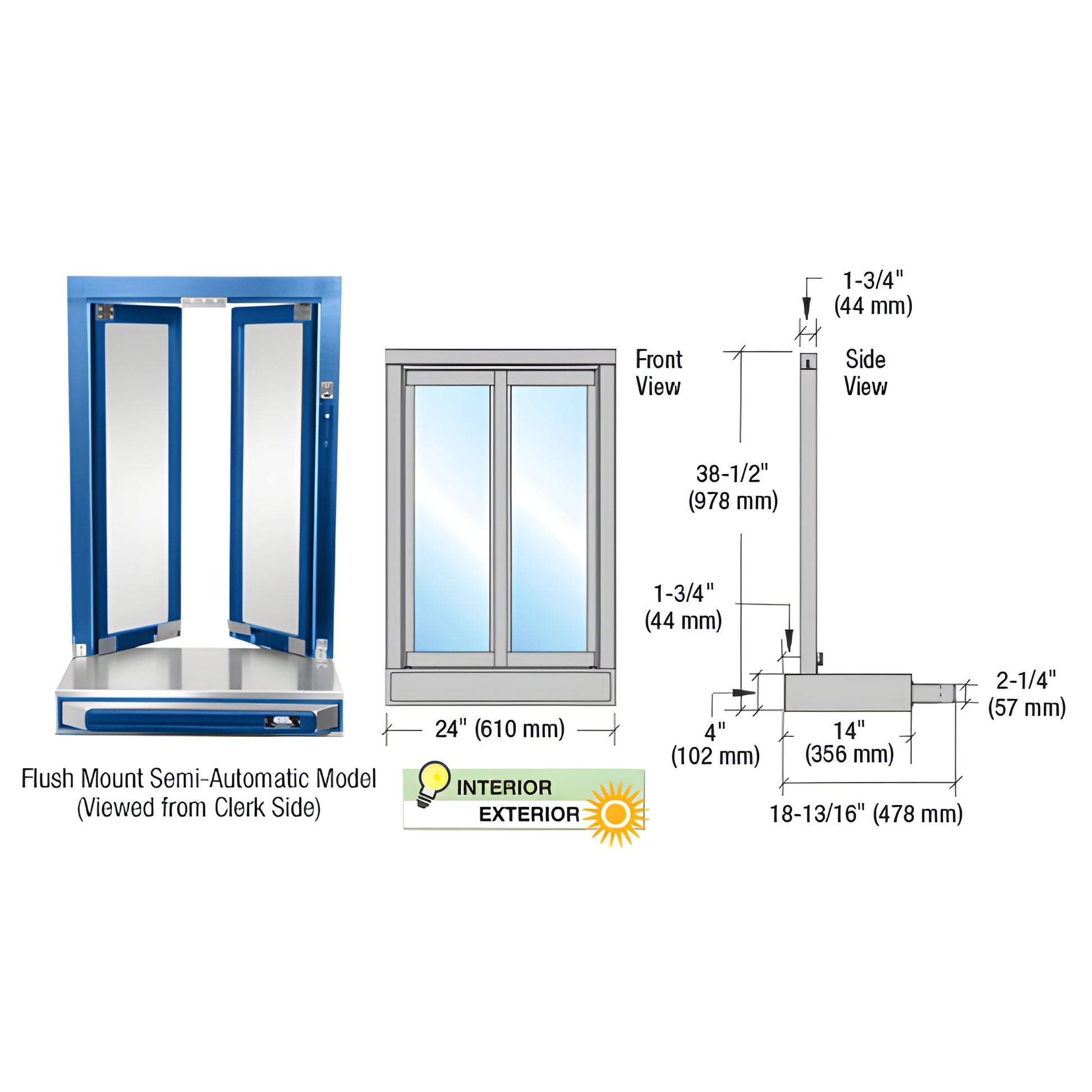

CRL Custom Self-Closing Flush-Mount Bi-Fold Counter Service Window
CRL Custom Self-Closing Flush-Mount Bi-Fold Counter Service Window
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCBFW1C
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Specify
Glazed
Yes
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
Clear Tempered
Material
Aluminum
Usage
Interior,Exterior
Window Style
Flush Mount Semi-Automatic
Overview
- Hip-Activated Opening Feature for hands-free access
- Self-Closing bi-fold panels for secure service
- Custom sizes & finishes available
- Drawings and specifications available on request
CRL Bi-Fold Service Windows (SKU: SCBFW1C) are engineered for high-traffic service openings where a durable, secure bi-folding window is required. Key differentiators include simultaneous two-panel outward opening toward the customer, an integrated burglar bar for extra security, and both Projected and Flush Mount models for flexible installation.
MANUAL - Either panel can be operated manually; both panels move together for smooth, reliable operation.
SEMI-AUTOMATIC - Hip-activated slide bar opens both panels; step away and panels automatically self-close for quick, hands-free service. Custom sizes and paint colors are available by special order. Contact CRL Technical Sales for custom quotes and lead times.
SPECIFICATIONS:
Materials: Aluminum extrusions; pile weatherstrip; glazing vinyl; stainless steel shelf
Glazing: 1/4" (6 mm) clear tempered glass
Stock Finishes: Satin anodized or bronze anodized
Bi-Fold Operation: Self-closing
Rough Opening: Add 1/2" (12 mm) to width, 1/4" (6 mm) to height
For drawings, specifications, or to order a custom CRL bi-fold service window (SCBFW1C), contact CRL Technical Sales or Customer Service today.
