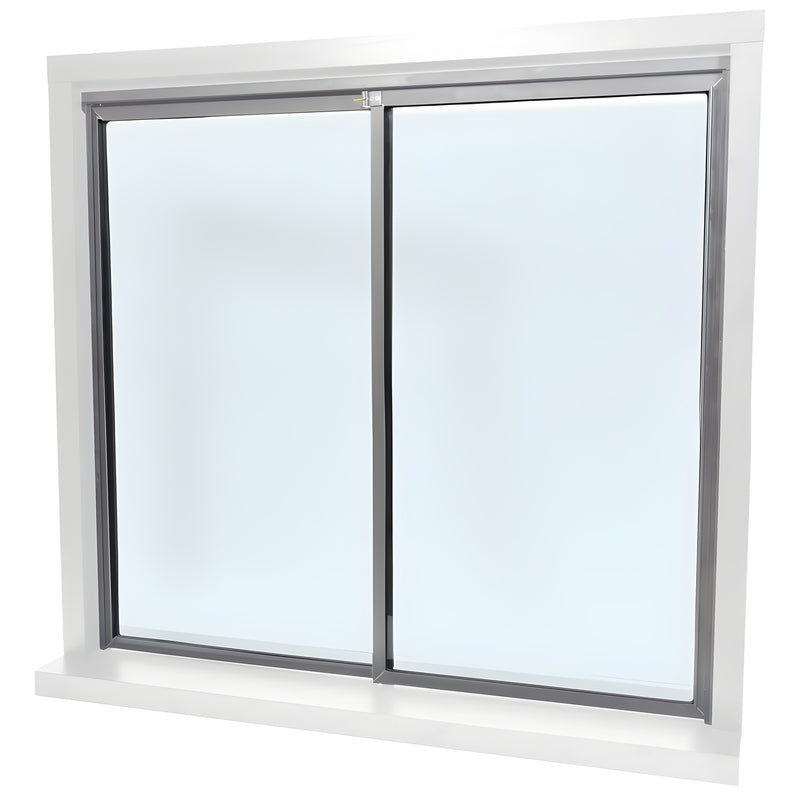

CRL Daisy Satin Anodized Pass-Thru Window 1/4in Tempered Glass 48x48
Item# D1041AXX4848
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
XX
Finish/Color
Satin Anodized
Glazing Type
1/4" Clear Tempered Glass
Model
Daisy
Panel Designation
XX Type X = Sliding
Panel Quantity
2
Width
48 in. (1219.2 mm)
- Assembled and ready to install — minimal on-site work
- Finish options: Satin Anodized or Dark Bronze
- Two sliding 1/4" clear tempered glass panels (clerk-side view)
- Net frame size: 48" W × 48" H (fits opening approx. 48-1/8" W × 48-1/8" H)
- Counter and sub-frame not included
Pass-through window kit SKU D1041AXX4848 includes fully glazed sliding glass panels assembled in the overall frame for quick installation. Designed as a 48x48 sliding glass pass-through window kit with 1/4" clear tempered glass for improved safety and durability. Two-panel configuration provides a clerk-side sliding access solution ideal for teller windows, service counters, and reception openings.
Note: Panels come fully glazed. Some assembly required.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are actual or close representations; color may vary with monitor settings.
Order SKU D1041AXX4848 today to get a ready-to-install 48x48 sliding glass pass-through kit with tempered glass and your choice of Satin Anodized or Dark Bronze finish.
CAD Drawings - pdf
