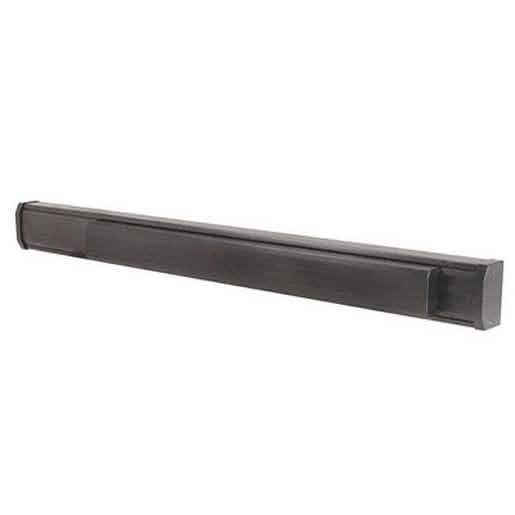

CRL Dark Bronze 36" JacksonĀ® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device
CRL Dark Bronze 36" JacksonĀ® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device
Regular price
$478.01 CAD
Regular price
Sale price
$478.01 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 311285R37313
Shipping Weight: 6.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 6.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Jackson |
| Certification ANSI/BHMA | 156.3 |
| Door Height 84 in. | (2133.6 mm) |
| Door Thickness 1-3/4 in. | (44.5 mm) |
| Door Width 36 in. | (914.4 mm) |
| Finish/Color | Dark Bronze |
| Handing | Right Hand Reverse Bevel (RHR) |
| Includes | Mounting Hardware |
| Material | - End Cap Aluminum |
| Material | - Housing Aluminum |
| Material | - Latch & Strike Sintered Steel |
| Material | - Mechanical Components Stainless and Hardened Plated Steel |
| Minimum Stile Width 1-3/4 in. | (44.5 mm) |
| Model | 1285 |
| Panic Bar Base Height 3-3/16 in. | (81 mm) |
| Panic Bar Projection 2-7/8 in. | (73 mm) |
| Panic Bar Width Net 34-1/2 in. | (876.3 mm) |
| Panic | Dogging Standard Hex Key Dogging |
| Panic | Type Concealed Vertical Rods |
| Push Pad Width 24 in. | (609.6 mm) |
| Recommended | Door Type Aluminum Narrow, Medium, Wide Stile, Hollow Metal |
| Replacement Parts | 302861, 30821J313 |
| Series | 1200 |
| Tall Door Extention Rods | 301347 & 301348 |
| U | L Listed Yes |
Overview
The CRL JacksonĀ® Exit Device seamlessly merges the trusted reliability of the classic 10 Series Crossbar Device with the modern elegance of today's push-pad exit devices.
Designed for compatibility with 1-3/4" narrow, medium, and wide stile aluminum, wood, or hollow metal doors, it is available in Rim, Concealed, and Surface Vertical Rod versions.
This exit device features a "Soft-Touch" smooth action push-pad that requires minimal pressure for activation, and its standard hex key dogging system ensures ease of use.
The 1200 Series model boasts a low profile projection of only 2-7/8" from the door surface, with concealed mounting hardware for a sleek appearance.
Ideal for doors up to 84" tall, the device can be customized with extensions or longer rods for larger doors, and offers optional keyed cylinder dogging for enhanced security.
Designed for compatibility with 1-3/4" narrow, medium, and wide stile aluminum, wood, or hollow metal doors, it is available in Rim, Concealed, and Surface Vertical Rod versions.
This exit device features a "Soft-Touch" smooth action push-pad that requires minimal pressure for activation, and its standard hex key dogging system ensures ease of use.
The 1200 Series model boasts a low profile projection of only 2-7/8" from the door surface, with concealed mounting hardware for a sleek appearance.
Ideal for doors up to 84" tall, the device can be customized with extensions or longer rods for larger doors, and offers optional keyed cylinder dogging for enhanced security.
Specifications
Installation Instructions
CAD Drawings - pdf
