Product Details
- For Use with Rim Panic Device Up to 3/4" (19 mm) Latch
- Field Selectable 12/24 Volts AC/DC
- Field Convertible From Fail-Secure to Fail-Safe
- UL Listed for Burglary Resistance

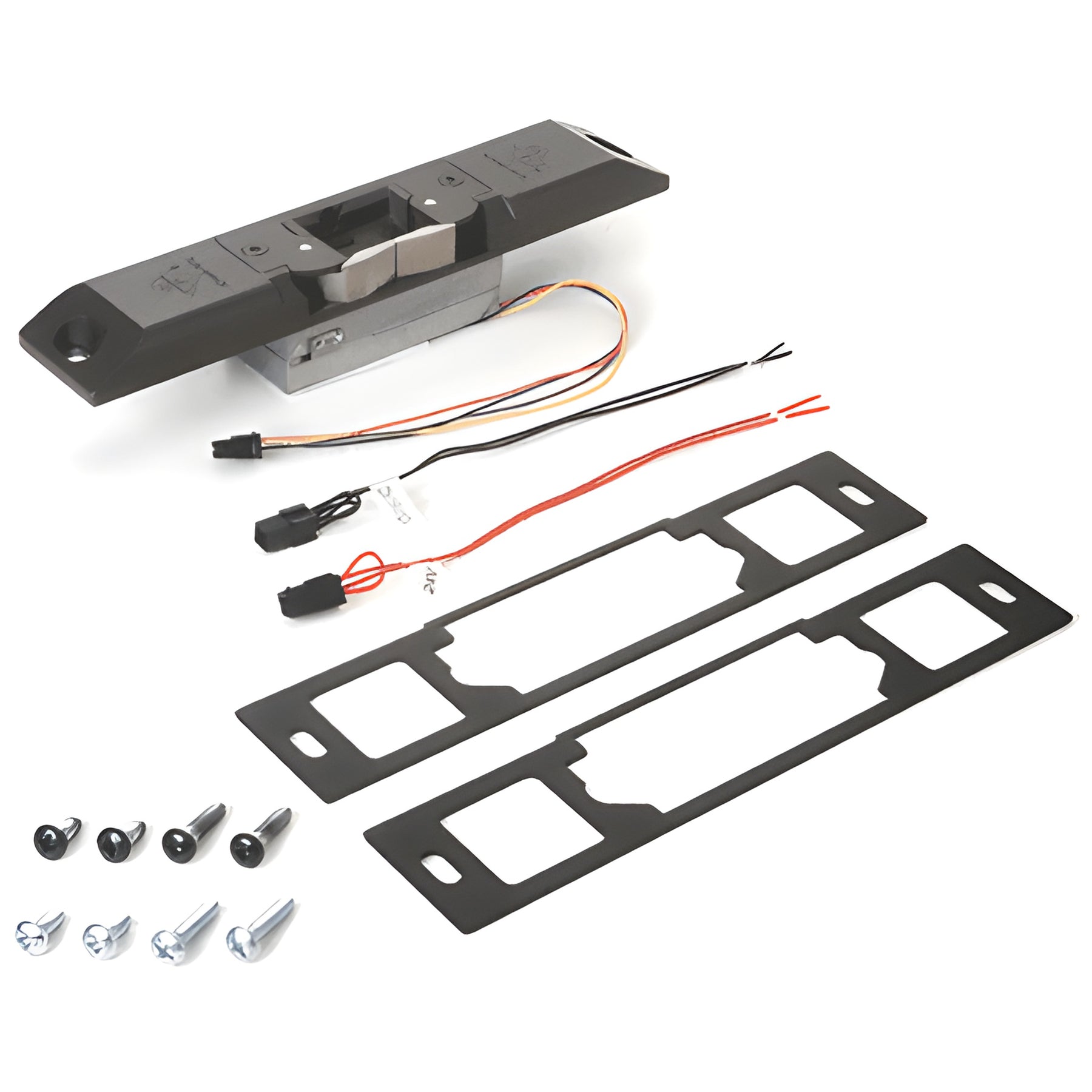

This Adams Rite® 74R1 Electric Strike provides for remote electrical actuation to unlock the strike jaw and release the latchbolt for entry without operating the latch. This semi-mortised strike is for Rim Exit Devices having up to a 3/4" (19 mm) Pullman Type latch without auxiliary deadlock latches. Non-handed strike features an ultra-compact design and a stainless steel split-jaw with over 2400 lbs. of holding force. The standard strike is supplied in fail-secure mode, but is field convertible to fail-safe mode.
SPECIFICATIONS:
Input: Field Select 12 Volts AC/DC, 24 Volts AC/DC, Contact Technical Sales for 16 Volts AC/DC
Current Draw: 440mA @ 12V DC, 160mA @ 12V AC, 230mA @ 24V DC, 80mA @ 24V AC
Dimensions: Case: 1" x 3-3/8" x 1-1/16" deep (25 x 86 x 27 mm), Strike Opening: 5/8" x 1-7/16" x 9/16" (16 x 37 x 14 mm)
Shipped as Fall-Secure Lock: Requires Power to Unlock. Field Convertible to Fail-Safe Mode.
