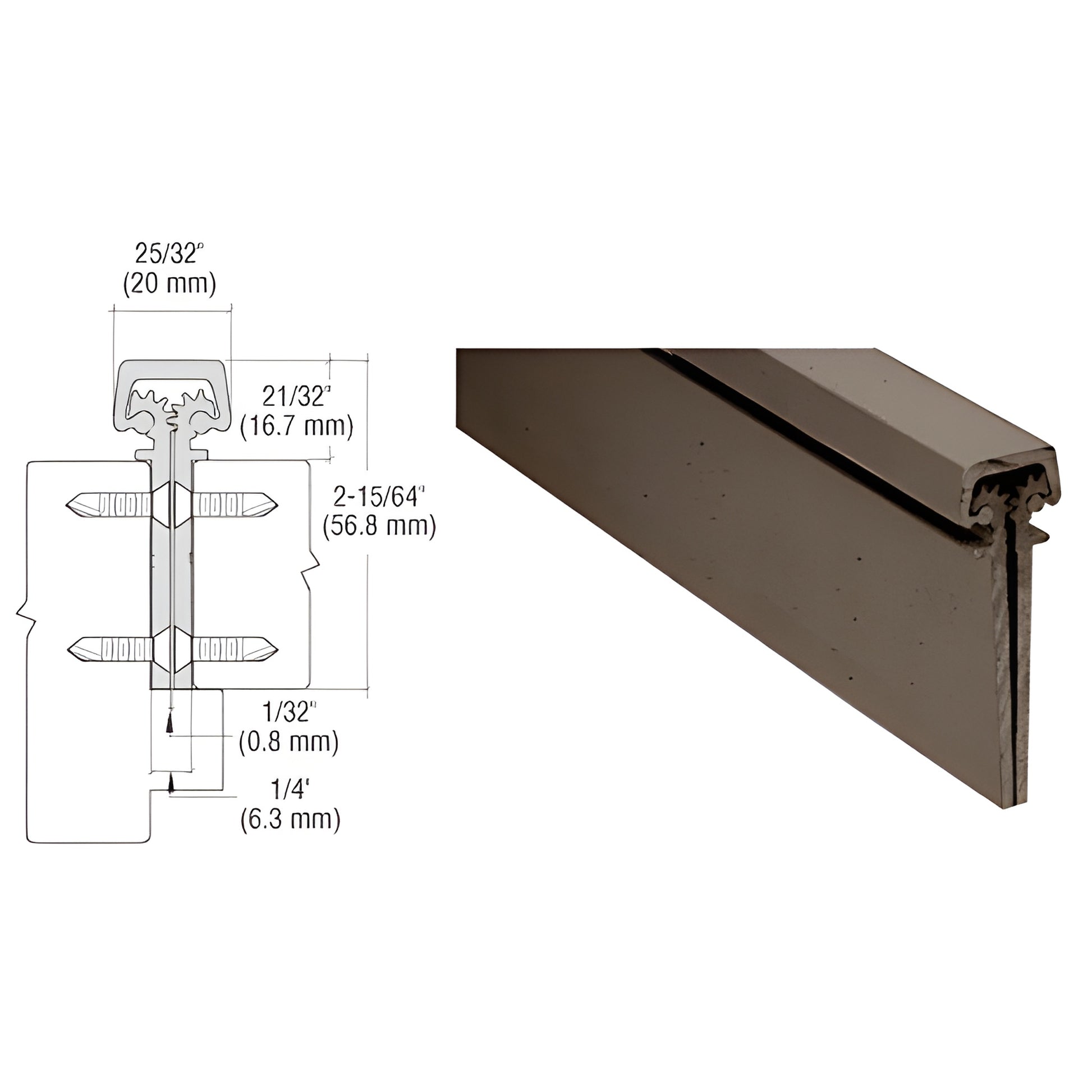

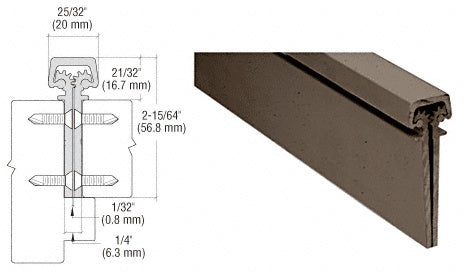

CRL Dark Bronze Anodized 350 Series Heavy-Duty Concealed Leaf Continuous Hinge - 95"
Item# 35095DU
Shipping Weight: 8.55
Shipping Limitations: No UPS - Common Carrier Only
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.55
Shipping Limitations: No UPS - Common Carrier Only
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
- Finish/Color:Dark Bronze
- IncludesPack of Screws
- Length95 in. (2413 mm)
- Maximum Door Weight600 lbs. (272.2 kg)
- Replacement Screw PackRSP300DU
- Series350
- Width2-15/64 in. (56.8 mm)
- Standard Duty Hinges for Doors Weighing Up to 200 Lbs. (90 kg)
- Heavy-Duty Hinges for Doors Weighing Up to 600 Lbs. (272 kg)
- Available in Satin Anodized and Dark Bronze Anodized Finishes
These CRL Concealed Leaf Continuous Hinges have load bearing blocks every 5-1/8" (130.2 mm) on the Standard Duty Hinge, and every 2-9/16" (65.1 mm) on the Heavy-Duty Hinge. They are available in satin anodized and dark bronze anodized finishes, and stocked in 83" (2.11 m) lengths. A pack of installation screws is included with each Hinge. Replacement Screw Packs are also available separately.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Installation Instructions
