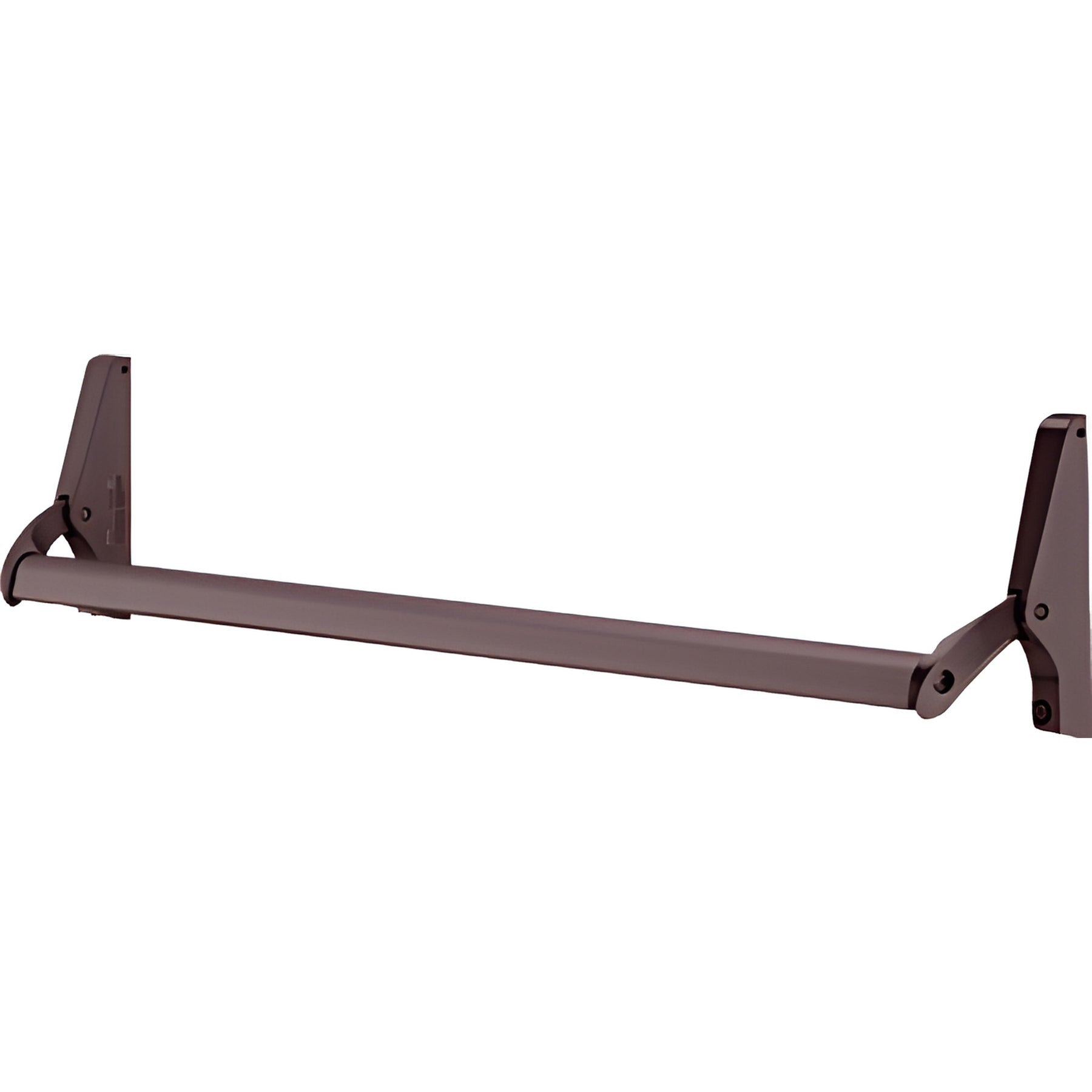

CRL Dark Bronze Concealed Vertical Rod Panic Exit Device
Item # DL1180DU
$265.63
CAD
Finish (2)
-
Satin Aluminum -
Dark Bronze
Overview
| SKU | DL1180DU |
|---|---|
| Sold As | 1 Each |
| Certification | ANSI A156.3 Grade 1 |
| Door Height | 84 |
| Door Thickness | 1-3/4 |
| Door Width | 48 |
| Finish/Color | Dark Bronze |
| Handing | Non Handed |
| Includes | Mounting Hardware |
| Material | Aluminum |
| Minimum Stile Width | 1-3/4 |
| Model | DL1180 |
| Panic Bar Base Height | 2 |
| Panic Bar Projection | 4-5/8 |
| Panic Bar Width Net | 48 |
| Panic Dogging | Screw Driver |
| Panic Head Base Width | 1-1/4 |
| Panic Head Height | 7-5/16 |
| Panic Type | Concealed Vertical Rods (CVR) |
| Recommended Door Type | Aluminum, Wood, Hollow Metal |
| Replacement Parts | DL2170SCKDDU, DL2070SCKADU, 30821J313 |
| Similar | 31108547313 |
| UL Listed | Yes |
Description
- Available as Concealed Vertical Rod and Rim Exit Devices
- 42" (1.07 m) Crossbar Can Be Cut-to-Size
- For Use with Narrow, Medium, and Wide Stile Aluminum Doors or Hollow Metal Doors
- Two Standard Architectural Finishes
CRL's DL1180 Series Cross Bar Panic Exit Devices combine simplicity and durability. This device is a proven product for providing an economical solution to satisfy both security and life safety requirements. Available in both Rim and Concealed Vertical Rod versions, this Exit Device comes with a 42" (1.07 m) length cross bar that can be field cut to fit your exact door size requirements.
STANDARD FEATURES:
DL1180 Series Concealed Vertical Rod Panics
• Non-Handed
• For Use with Standard 1-3/4" (44 mm) Thick Doors
• Rod Length to Fit Standard 84" (2.13 m) Tall Doors
• Independent Top and Bottom Bolt Action - 1/2" (13 mm) Bolt Throw
• Keyed Entry Requires CRL Cat. No. DL913 Cylinder Mounting Pad When Using Optional CRL DL2170 Series, or other brand, Mortise Cylinders
