CRL
CRL Dark Bronze Left-Hand Offset Pivot for Glass Doors 1/8" Recess
CRL Dark Bronze Left-Hand Offset Pivot for Glass Doors 1/8" Recess
Regular price
$32.65 CAD
Regular price
Sale price
$32.65 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P40LHDU
Shipping Weight: 8.64 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.64 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bottom Door Clearance Adjustment
1/8 in. (3.2 mm)
Door Weight
125 lbs. (56.7 kg)
Entry Trim
9500LV02628,9500LV01628,9500EL02628,9500EL01628
Field Sizeable
Yes
Finish/Color
Dark Bronze
Handing
Left Hand
Material
Aluminum
Pivot Series
OP40
Pivot Set
Yes
Pivot Style
1/8 in. Recess (3 mm Recess)
Pivot Type
Offset
Recommended Door Type
Aluminum Store Front
Overview
- 1/8" (3 mm) vertical adjustment for precise door alignment
- Diecast aluminum construction for durable commercial use
- Suitable for aluminum frames and doors weighing up to 125 lbs. (57 kg)
- Handed (not reversible) — left or right hand pivot sets available
- Compatible with: Amarlite, Arch Aluminum®, Rebco

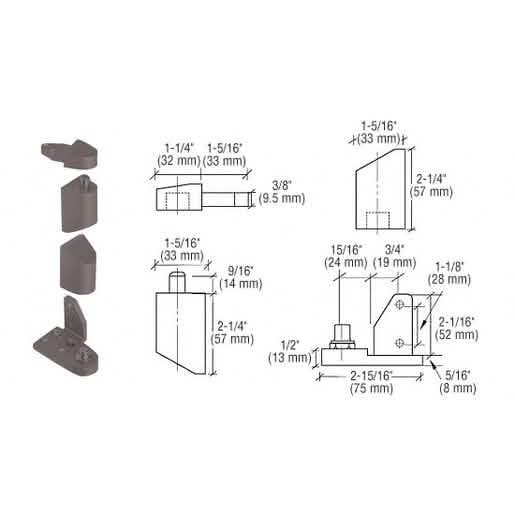

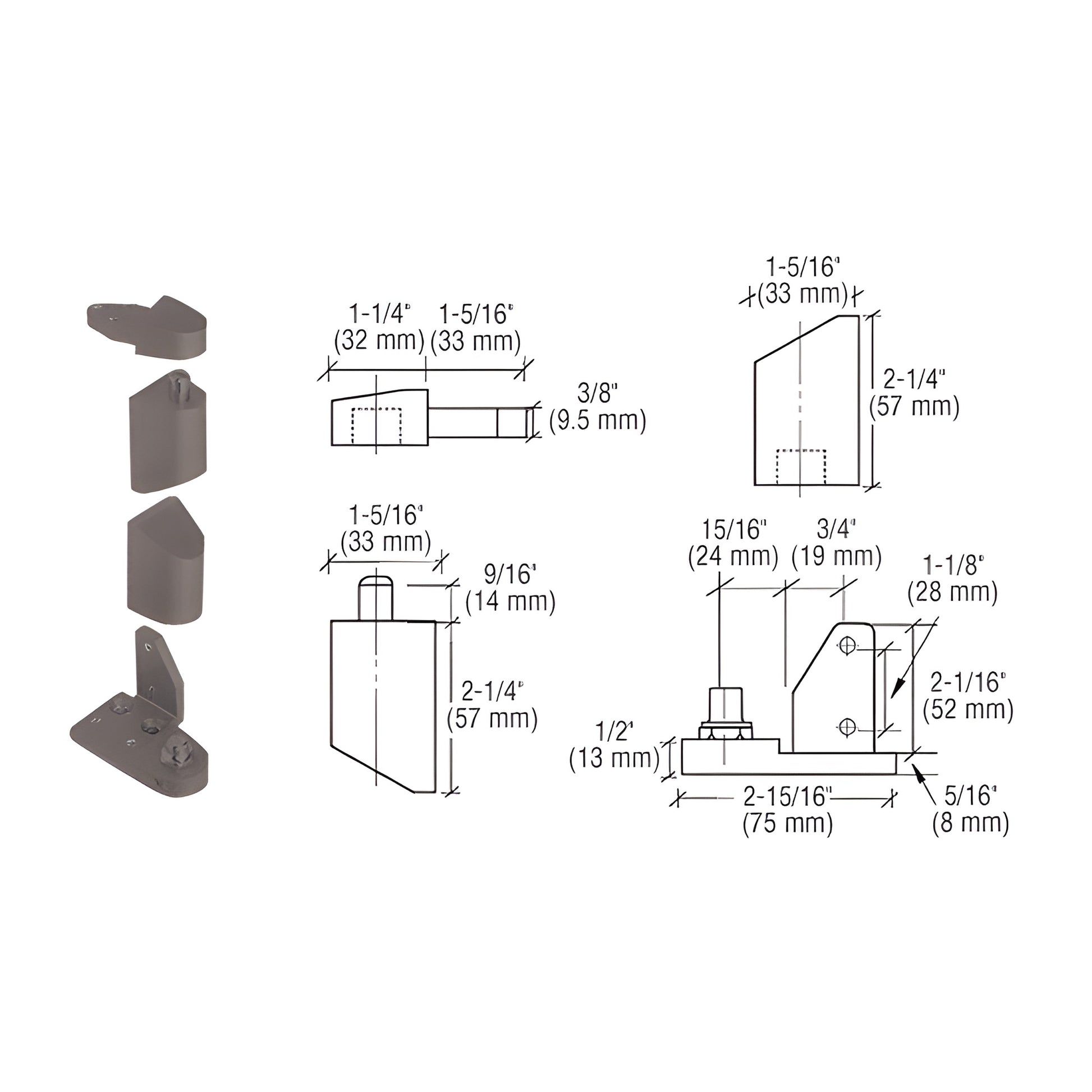

CRL Offset Pivot Sets provide a complete, single-box solution for commercial glass and aluminum doors—ideal as an adjustable offset pivot for aluminum frames and commercial storefront doors. Each set includes machined and diecast components, door fasteners, and anchors; illustrated dimensions simplify selection. Available in satin aluminum and dark bronze finishes. SKU: 0P40LHDU. One set per package.
Order the CRL 0P40LHDU offset pivot set today for reliable, adjustable commercial door hardware.
