CRL Aluminum Offset Left-Hand Door Pivot Set, 1/8" Recess
CRL Aluminum Offset Left-Hand Door Pivot Set, 1/8" Recess
Regular price
$35.48 CAD
Regular price
Sale price
$35.48 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P40LHA
Shipping Weight: 1.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bottom Door Clearance Adjustment
1/8 in. (3.2 mm)
Door Weight
125 lbs. (56.7 kg)
Entry Trim
9500LV02628,9500LV01628,9500EL02628,9500EL01628
Field Sizeable
Yes
Finish/Color
Aluminum
Handing
Left Hand
Material
Aluminum
Pivot Series
OP40
Pivot Set
Yes
Pivot Style
1/8 in. Recess (3 mm Recess)
Pivot Type
Offset
Recommended Door Type
Aluminum Store Front
Overview
- 1/8" (3 mm) vertical adjustment
- Diecast aluminum construction
- Suitable for aluminum frames and doors weighing up to 125 lbs (57 kg)
- Handed — not reversible
- Used on: Amarlite, Arch Aluminum®, Rebco

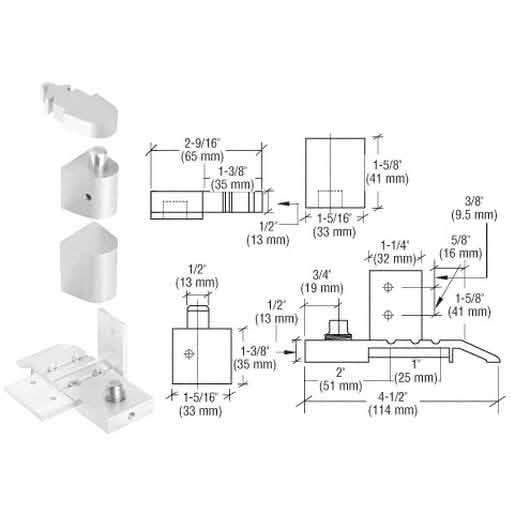

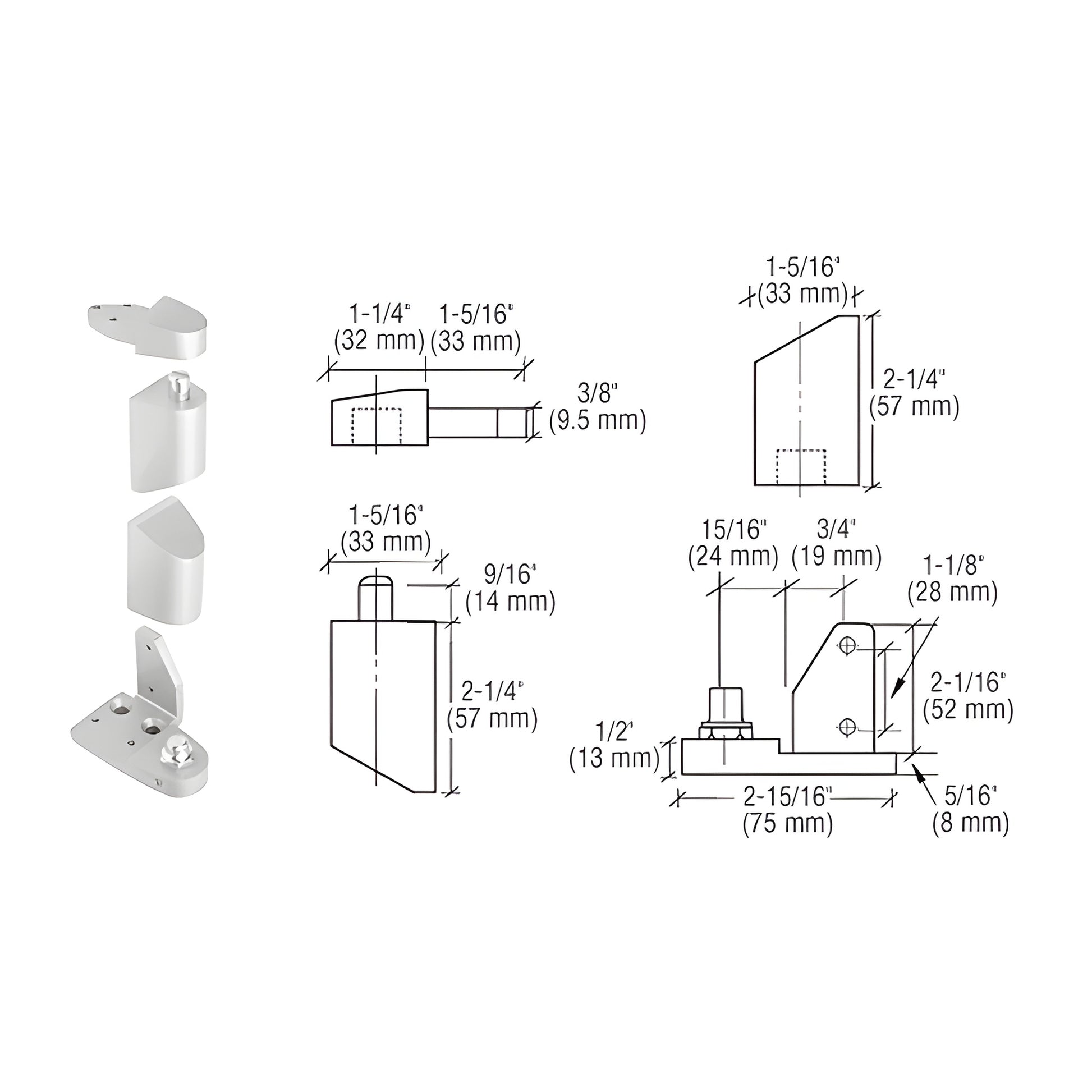

CRL Offset Pivot Sets (SKU: 0P40LHA) are engineered for commercial aluminum doors, combining machined and diecast components for reliable low-profile pivoting. Each kit includes door fasteners and anchors for easy installation and comes with illustrated dimensions to simplify selection. Available in satin aluminum and dark bronze finishes; left- or right-hand sets sold separately. One set per package.
Shop now to get the CRL offset pivot set for commercial aluminum doors — fasteners included for quick installation.
