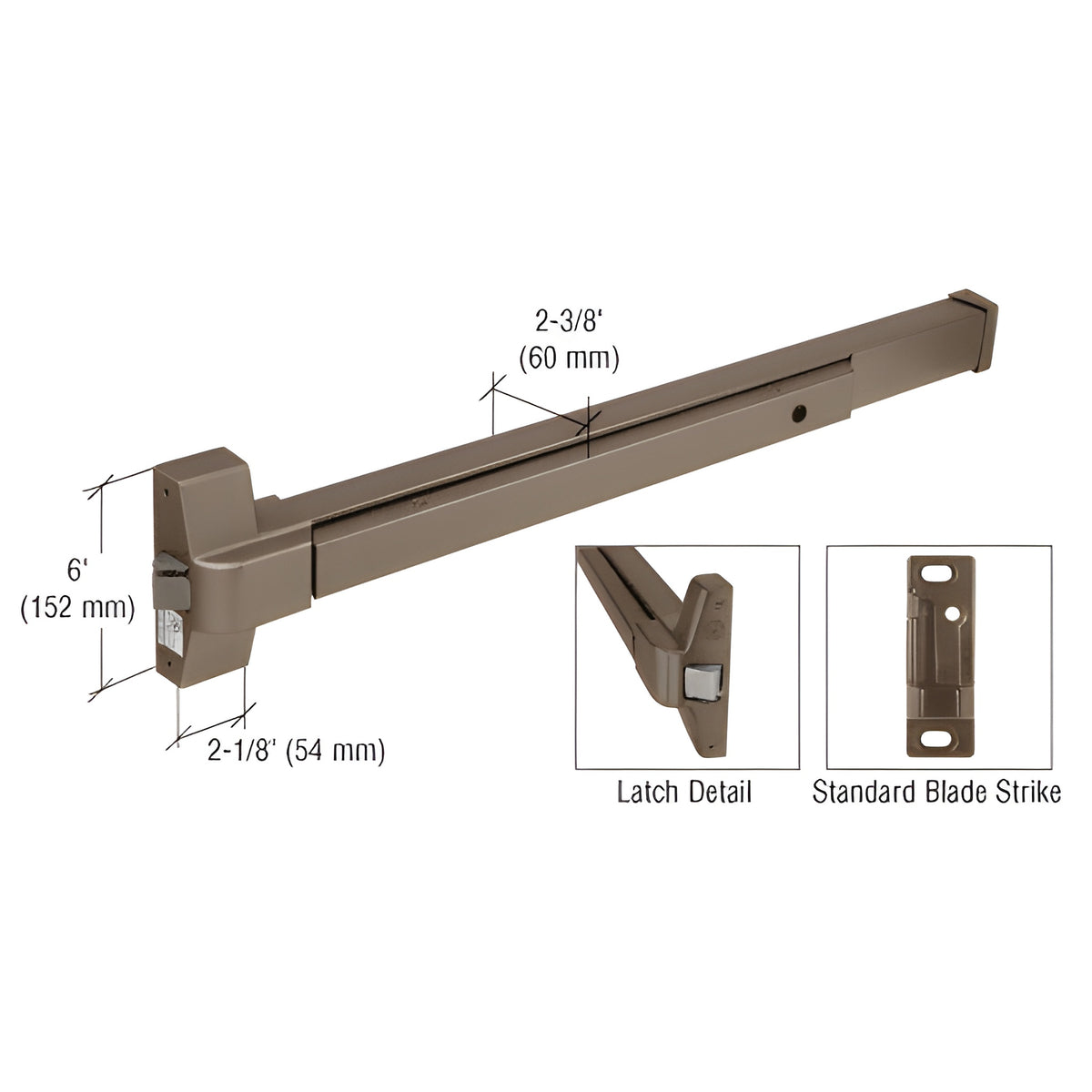

CRL Dark Bronze Touch Bar Rim Panic Exit Device - Commercial Push Bar

• For use with medium and wide stile aluminum doors
• Painted carbon steel and satin stainless steel finishes available
• Minimum force releases locking mechanism

Our CRL Push-Pad Rim Panic Devices (Cat. No. DL950DU) are push-pad rim exit devices designed for aluminum doors and are reversible for single doors or double doors with a mullion. Minimum required door stile width is 4-1/4" (108 mm). Units are fabricated to an overall length of 34-7/8" (886 mm) so they install on standard 36" (914 mm) doors without modification and may be cut down to fit doors as narrow as 30" (762 mm). A dogging feature allows the device to be held unlocked during business hours. Each exit device ships with a blade strike included.

The Cat. No. DL950SS satin stainless steel finish provides a durable, attractive architectural option; painted carbon steel finish is also available. Note: internal components are not intended for prolonged exposure to moisture or corrosive environments.

For keyed entry, use an optional Cat. No. DL911SC series rim cylinder or an equivalent rim cylinder from another brand.

Product Warning:

This panic exit device is fabricated at 34-7/8" overall length and is ready-to-install on 36" doors without modification. 36" is the maximum door width. Minimum recommended stile width is 4-1/4" (108 mm).

Key differentiators: Ready-to-install 34-7/8" length for 36" doors, suitable for medium/wide aluminum stiles, optional satin stainless finish (DL950SS), and included blade strike. Ideal long-tail searches: "push-pad rim panic device for aluminum doors", "DL950DU exit device 36 inch door", "rim panic device with dogging feature".

Ready to order or need a quote? Contact CRL Customer Service or your local distributor to purchase DL950DU today.
