Product Details
- For Use with Medium and Wide Stile Aluminum Doors
- Painted Carbon Steel and Satin Stainless Steel Finishes Available
- Minimum Force Releases Locking Mechanism

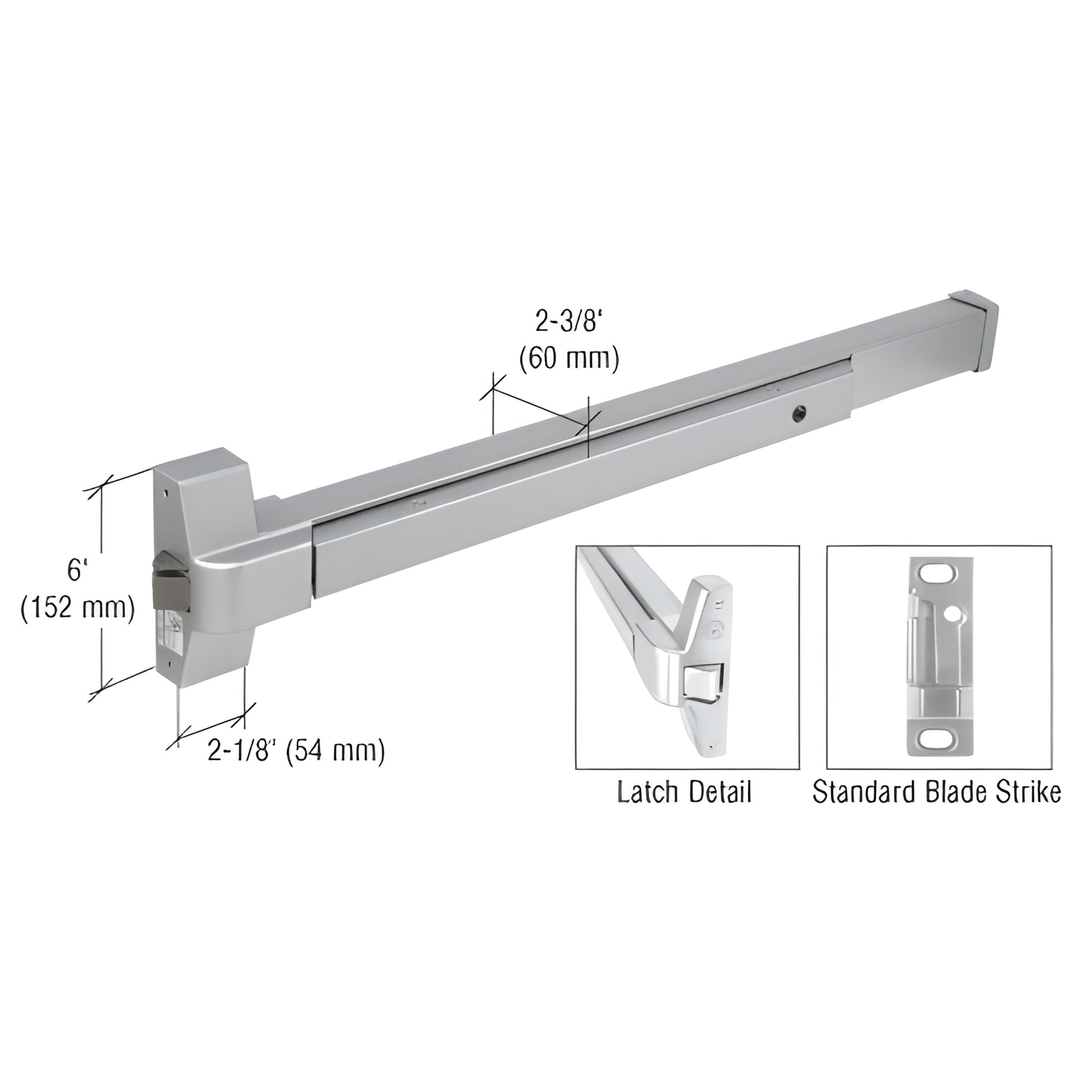

Our CRL Push-Pad Rim Panic Devices can be used on either single doors, or double doors with a mullion. Minimum required door stile width is 4-1/4" (108 mm). For your convenience, these Devices come fabricated to 34-7/8" (886 mm) overall length, ready-to-install on 36" (914 mm) wide doors without any modification, and may be cut down to fit doors as narrow as 30" (762 mm). A dogging feature defeats locking action during business hours. A Blade Strike is included with each Exit Device.
Our Cat. No. DL950SS Satin Stainless Steel Panic Device offers a more durable and attractive architectural finish, but as with the other finishes, the internal components should not be exposed to moisture or a corrosive environment.
For keyed entry, an optional Cat. No. DL911SC Series, or other brand, Rim Cylinder is required.
Product Warning:
This Panic Exit Device is fabricated with a 34-7/8" overall length so they are ready-to-install on 36" doors without modification. 36" width is the maximum door size. Minimum recommended stile width is 4-1/4" (108 mm).
