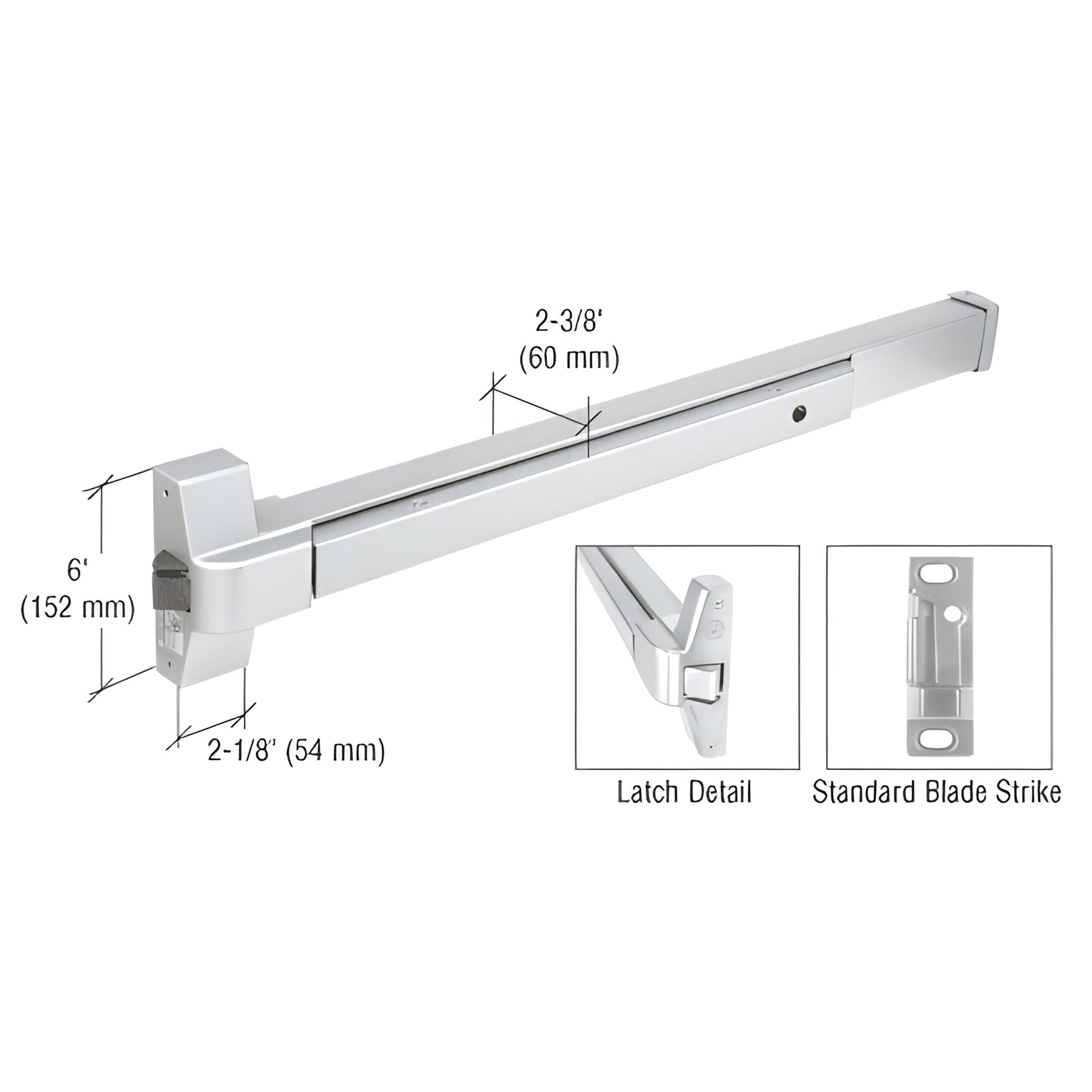

CRL Satin Anodized Touch Bar Rim Panic Exit Device
CRL Satin Anodized Touch Bar Rim Panic Exit Device
Regular price
$201.54 CAD
Regular price
Sale price
$201.54 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DL950A
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Door Thickness | 1-3/4 |
| Finish/Color | Satin Aluminum |
| Handing | Non Handed |
| Includes | Mounting Hardware |
| Material | Steel |
| Minimum Stile Width | 4-/14 |
| Model DL | 950 |
| Panic Bar Base Height | 2 |
| Panic Bar Projection | 2-3/8 |
| Panic Bar Width Net | 34-7/8 |
| Panic | Dogging Standard Hex Key Dogging |
| Panic Head Base Width | 2-1/8 |
| Panic Head Height | 6 |
| Panic | Type Rim Exit Device |
| Push Pad Width | 21 |
| Recommended | Door Type Aluminum, Wood, Hollow Metal |
| Replacement Parts DL | 911SCKDA, DL911SCKAA, DL95STR1KE, DL9DKEY |
| Similar | 311295C4628 |
| U | L Listed Yes |
Overview
Our CRL Push-Pad Rim Panic Devices are designed for use with medium and wide stile aluminum doors, offering versatility for either single doors or double doors with a mullion.
Available in painted carbon steel and satin stainless steel finishes, these devices ensure durability while their minimum force mechanism releases the locking system effortlessly.
They come pre-fabricated to a 34-7/8" overall length, fitting seamlessly on 36" wide doors and can be adjusted to accommodate doors as narrow as 30".
For optimal performance, a dogging feature deactivates the locking action during business hours, and each device includes a Blade Strike.
For those seeking a sophisticated look, our Cat.
No.
DL950SS Satin Stainless Steel Panic Device provides an elegant architectural finish, although internal components should be protected from moisture and corrosive environments.
Enhance security with an optional Cat.
No.
DL911SC Series Rim Cylinder for keyed entry.
Please note, these devices are ready-to-install on 36" doors without modification, with a minimum recommended stile width of 4-1/4".
For precise shipping weights, contact CRL Customer Service before placing your order.
