CRL Diamond 8.5 lb Exterior Concealed Door Closer Body - No Hold-Open

• Spindle set in the diamond position at 0º
• Direct retrofit for pre-1998 Kawneer® Husky® original closers
• 5 Year Limited Warranty
• UL Listed

CRL Overhead Concealed Door Closer (SKU: CRL7672) features a diamond-pattern spindle set at 0º so installers can replace pre-1998 Kawneer® Husky® closers without changing the door arm. Using our optional Retrofit Clips for 4" or 4-1/2" (102 or 114 mm) headers, the closer mounts without replacing existing door hardware. Compatible with existing center-hung or offset arms and existing pivots.

Available in 105º hold-open and no-hold-open styles with medium spring size; also offered in an 8.5 lb. model suitable for exterior doors. A diamond-pattern end-load center-hung replacement arm is available (Cat. No. CRL8010H).

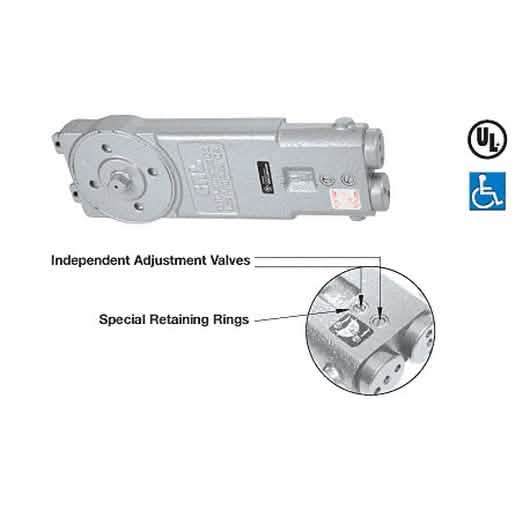

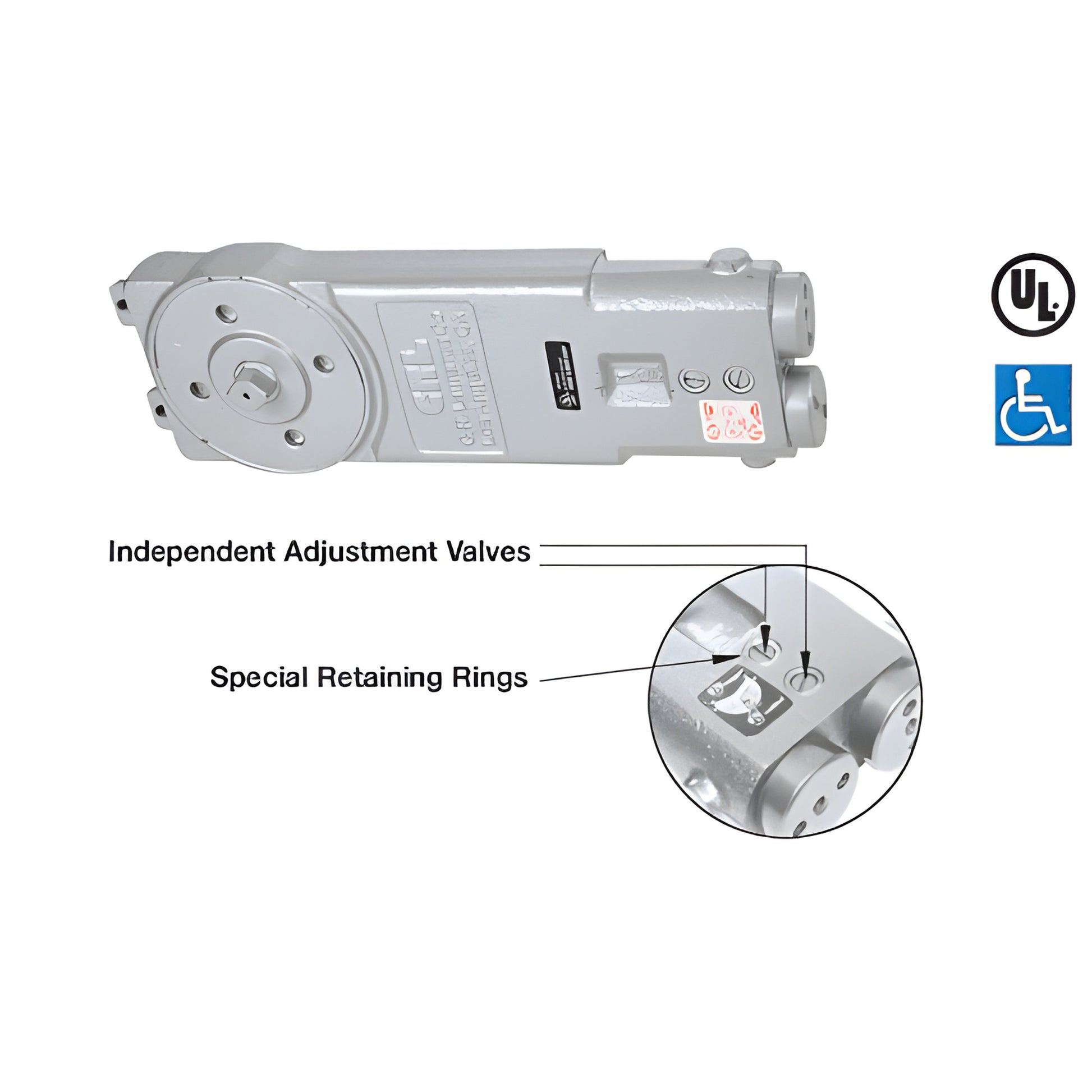

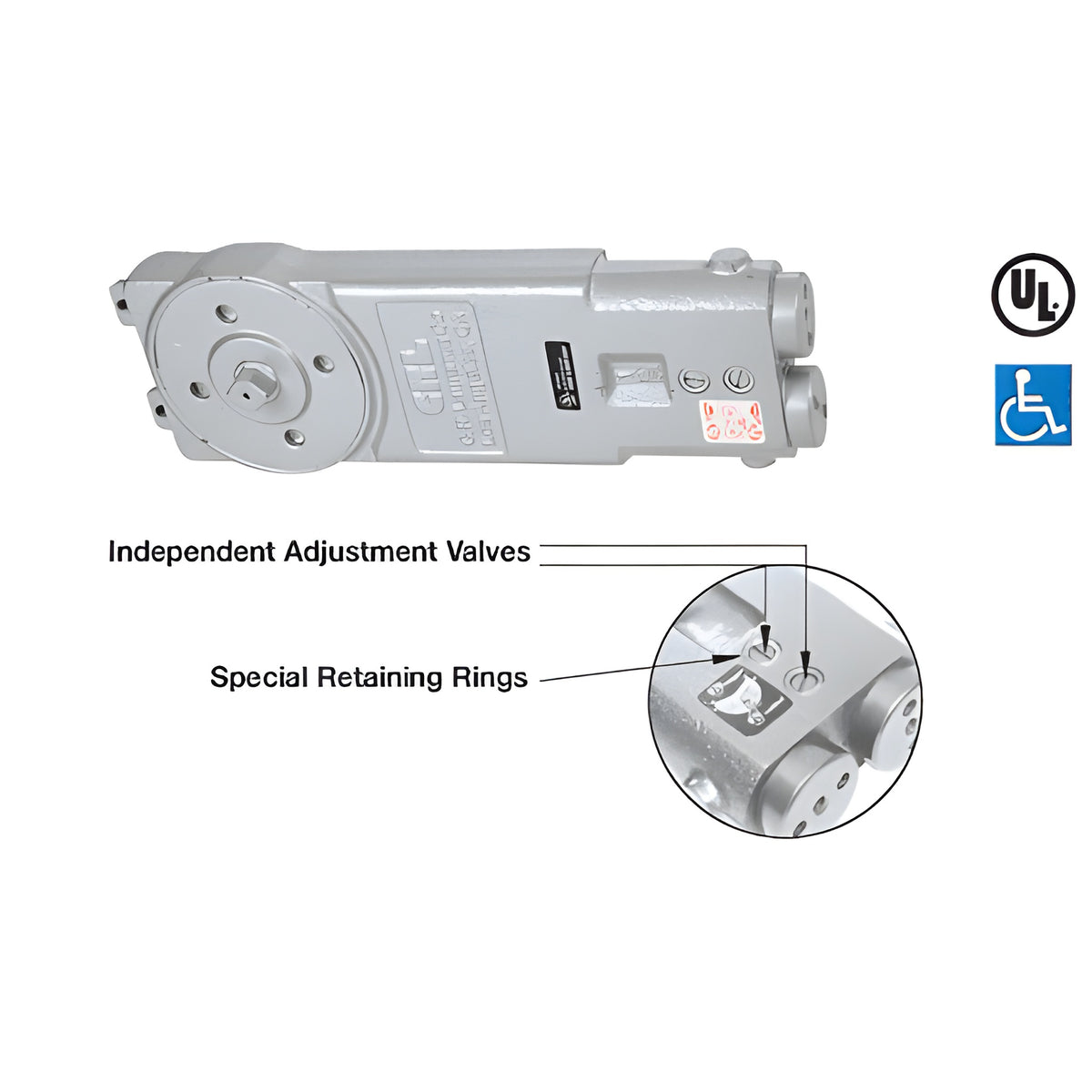

Independent Adjustment Valves
Non-critical valve control adjusts closing speed and latching speed independently.

Special Retaining Rings
Prevent adjustment valve screws from being backed all the way out of the closer body.

Notes
May require considerable alterations to retrofit; mounting clips are sold separately and required for installation. An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of door swing. Although the series complies with specified opening forces, site conditions and door size may affect spring power and closing performance.

Product Warning:
Not for use on doors weighing over 200 lbs (91 kg) or wider than 36" (914 mm). Closers set to meet opening force limits may not provide adequate closing power for all installations. Kawneer® is a registered trademark of Alcoa Inc. and its subsidiaries and affiliates.

For retrofit details, mounting clip options, or to order SKU CRL7672, contact CRL Sales or add to cart now.
